Description

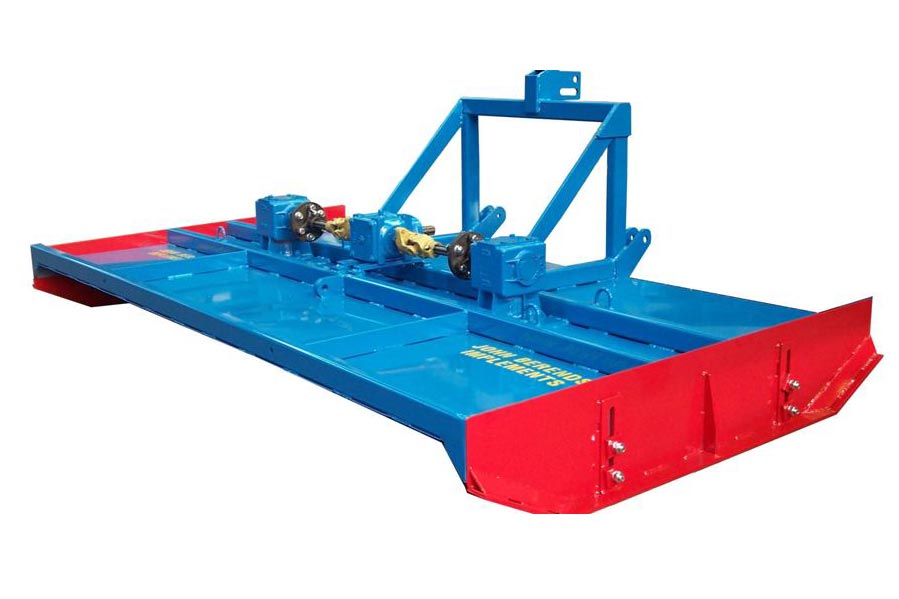

The ‘razor cut’ pasture topper. This high speed pasture topper gives superior sharp, clean cutting, promoting pasture rejuvenation.

Pasture toppers are designed specifically for topping, with a high tip speed to provide a fine cut. They should not be used as a slasher, or in areas where they may strike stumps or rocks, or scalp the ground.

Features

Key Features

• Available in 10′ three point linkage model only.
• Twin rotors fitted to either 45hp or 75hp end gearboxes, connected by a 75hp centre T gearbox. There is a rubber coupling flex-drive set-up with shear-bolt protection between each box.
• The Heavy duty PTO is fitted with two plate slip clutch.
• Very high tip speed provides a cut rivalling many finishing mowers. Timed, deeply stepped twisted blades uplift pasture and allow the topper to evenly spread the cuttings.
• Adjustable skids allow easy cutting height adjustment.
• The top plate is 3mm thick and the adjustable skids are 6mm thick.
• Optional wheel-kits fitted with 14” Holden wheels and adjusted by a ratchet link (or optional hydraulics) are also available.
• Machine can be operated behind smaller tractors as topping is not high horsepower work.
• Fitted standard with front guards to prevent material being thrown forward over the tractor.

Models

0115 – 3.0m (10′) Three Point Linkage Pasture Topper – 45hp
0016 – 3.0m (10′) Three Point Linkage Pasture Topper – 75hp
0117 – Wheel Kit to suit Pasture Topper – 2 Holden Castor Wheels

Specifications

10′ Three Point Linkage Pasture Topper
Cutting width – 2.90mCutting height (with adj skids) – 25-100mmWeight – 500kgLength (Overall) – 1.85mWidth (Overall) – 3.12mHeadstock – Rigid/floating top linkBody construction – 3mm body, 6mm sidesTractor hp range – 35hp+PTO – Series 5 shaft with 2 plate slip clutchGearbox/PTO speed – 540 rpmCentre Gearbox – 75 HPEnd Gearboxes – 45hp or 75hp (optional)Gearbox Protection – Flexible couplings with shearbolt protectionTractor Cat connection – Cat 1/2

Warranty

12 months on design and manufacture

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
