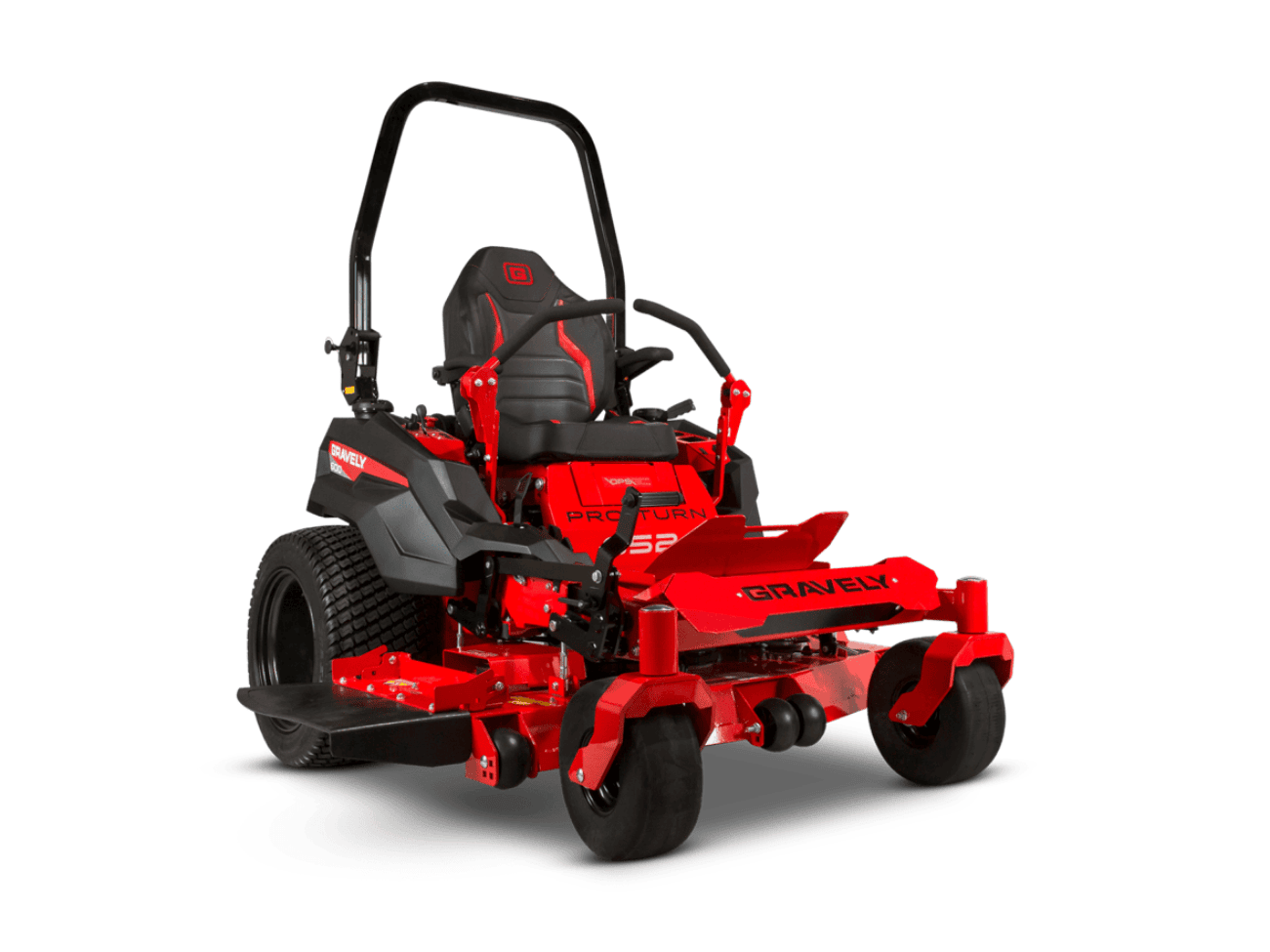

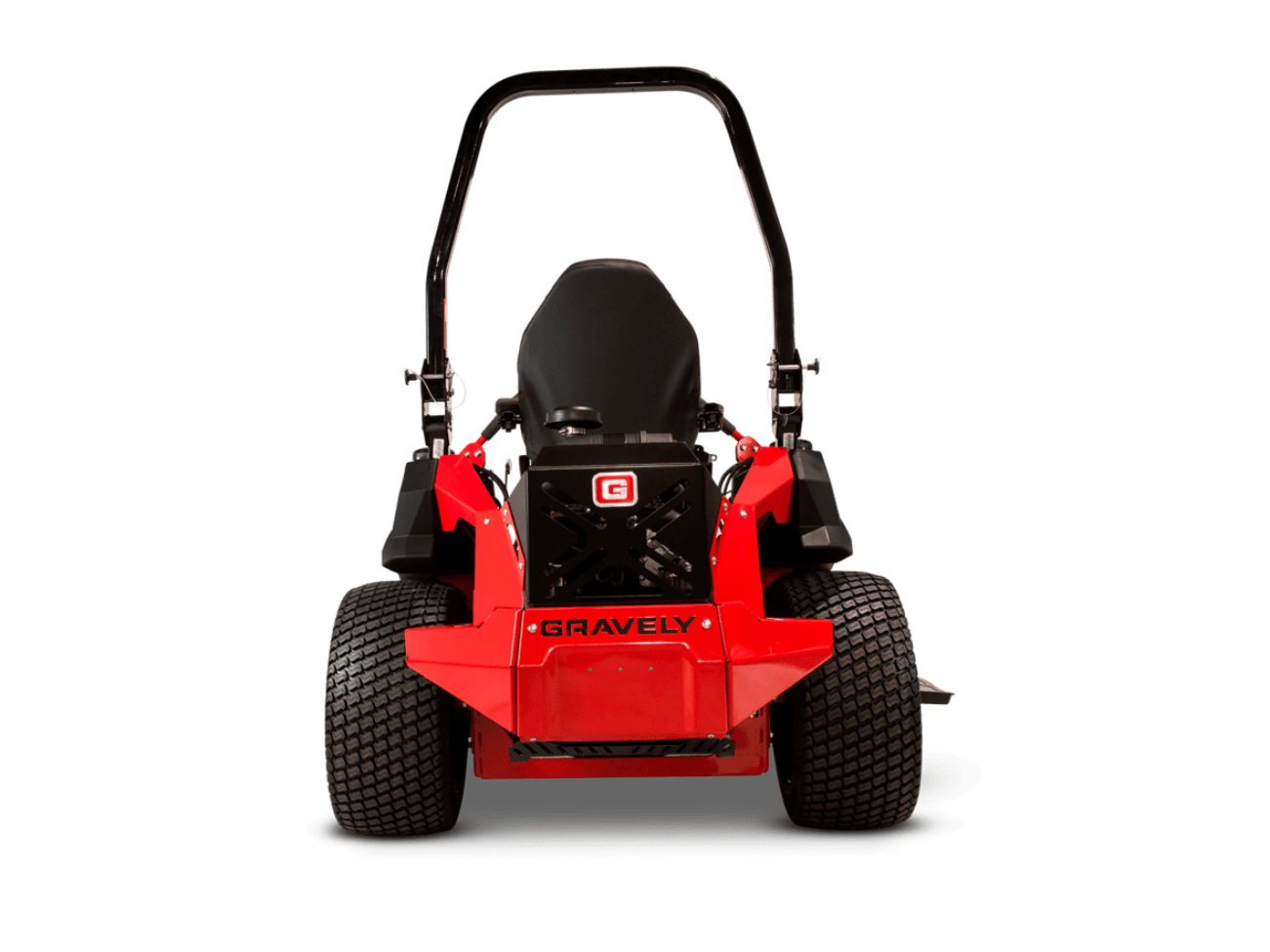

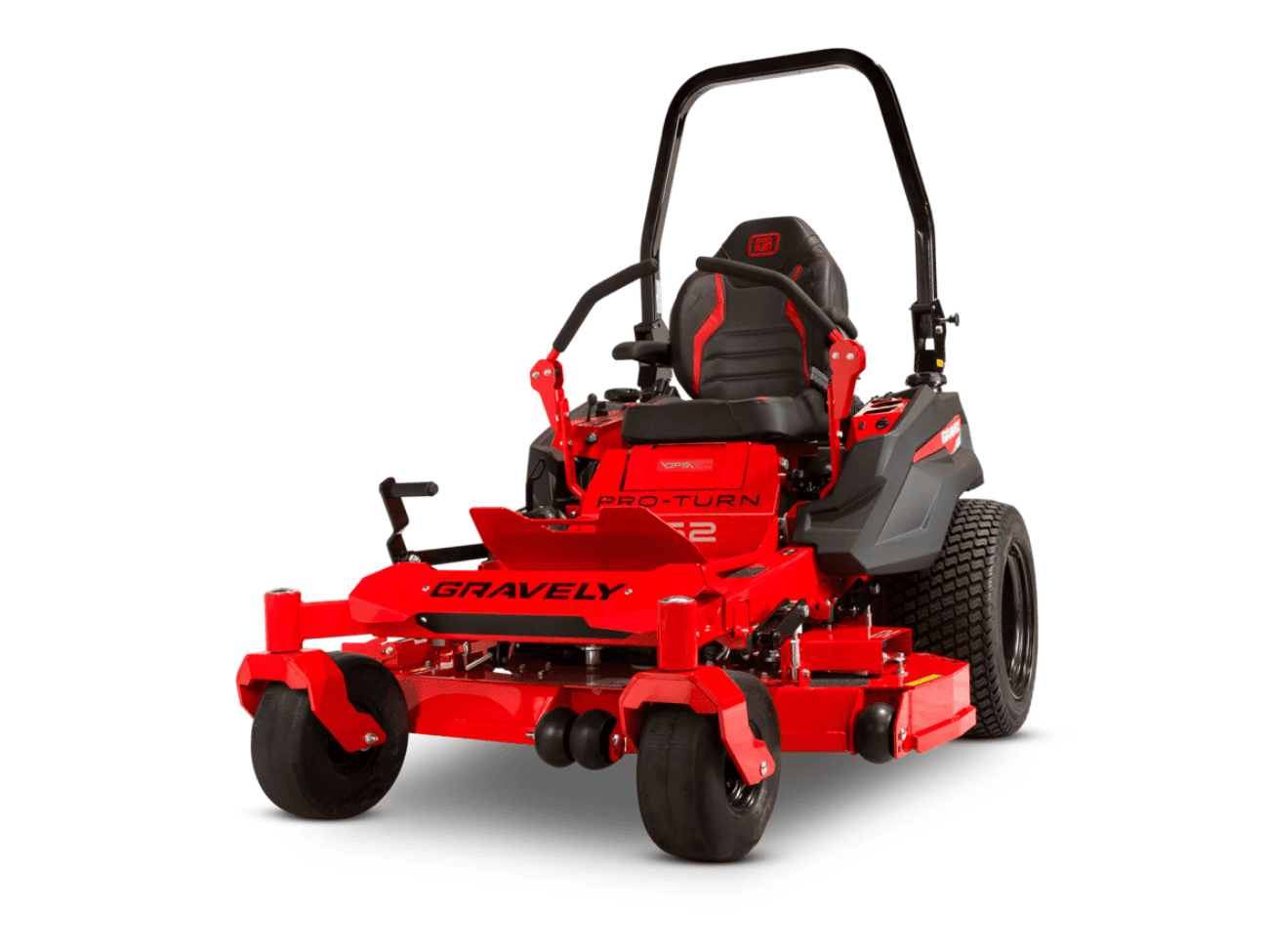

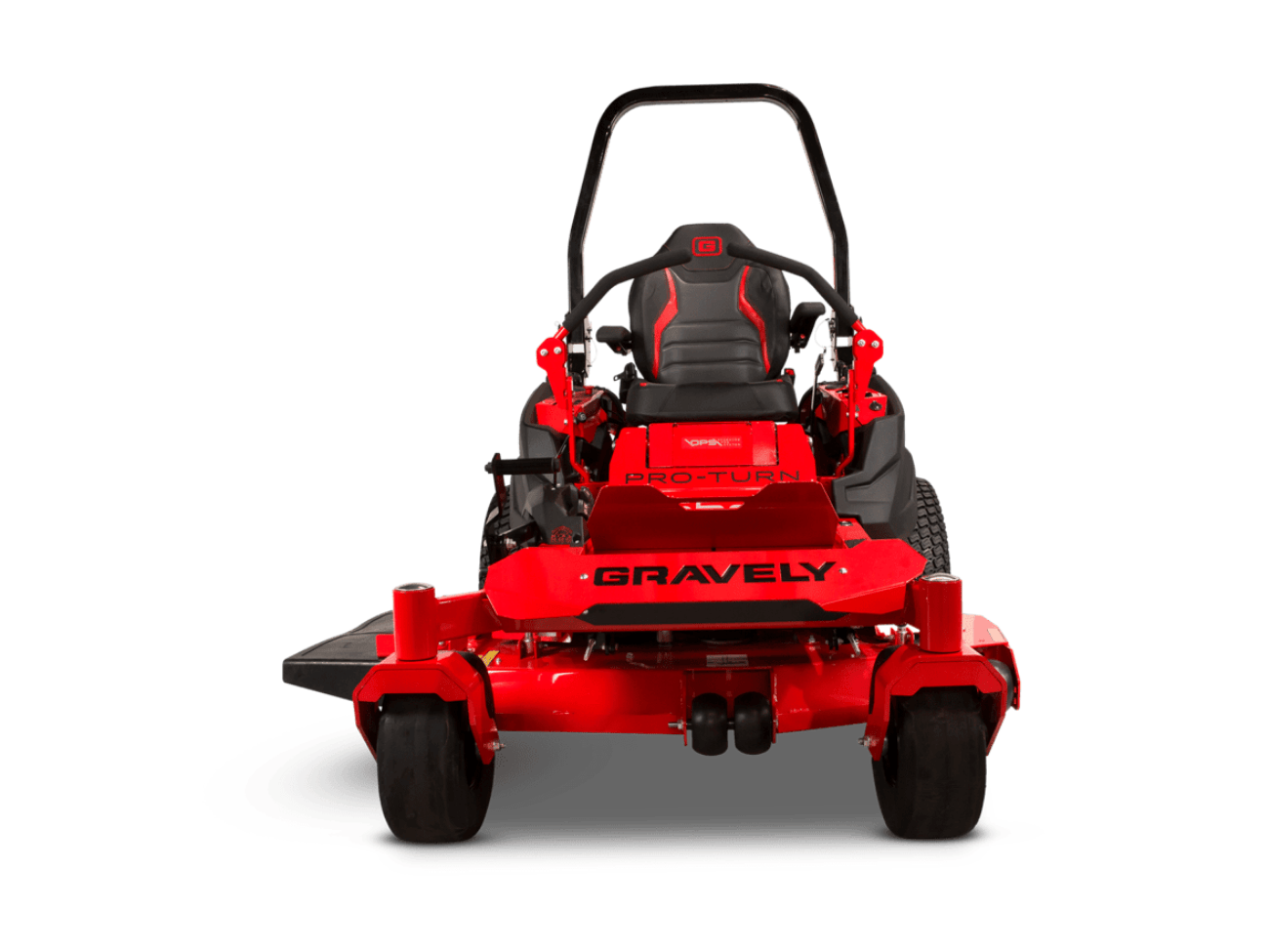

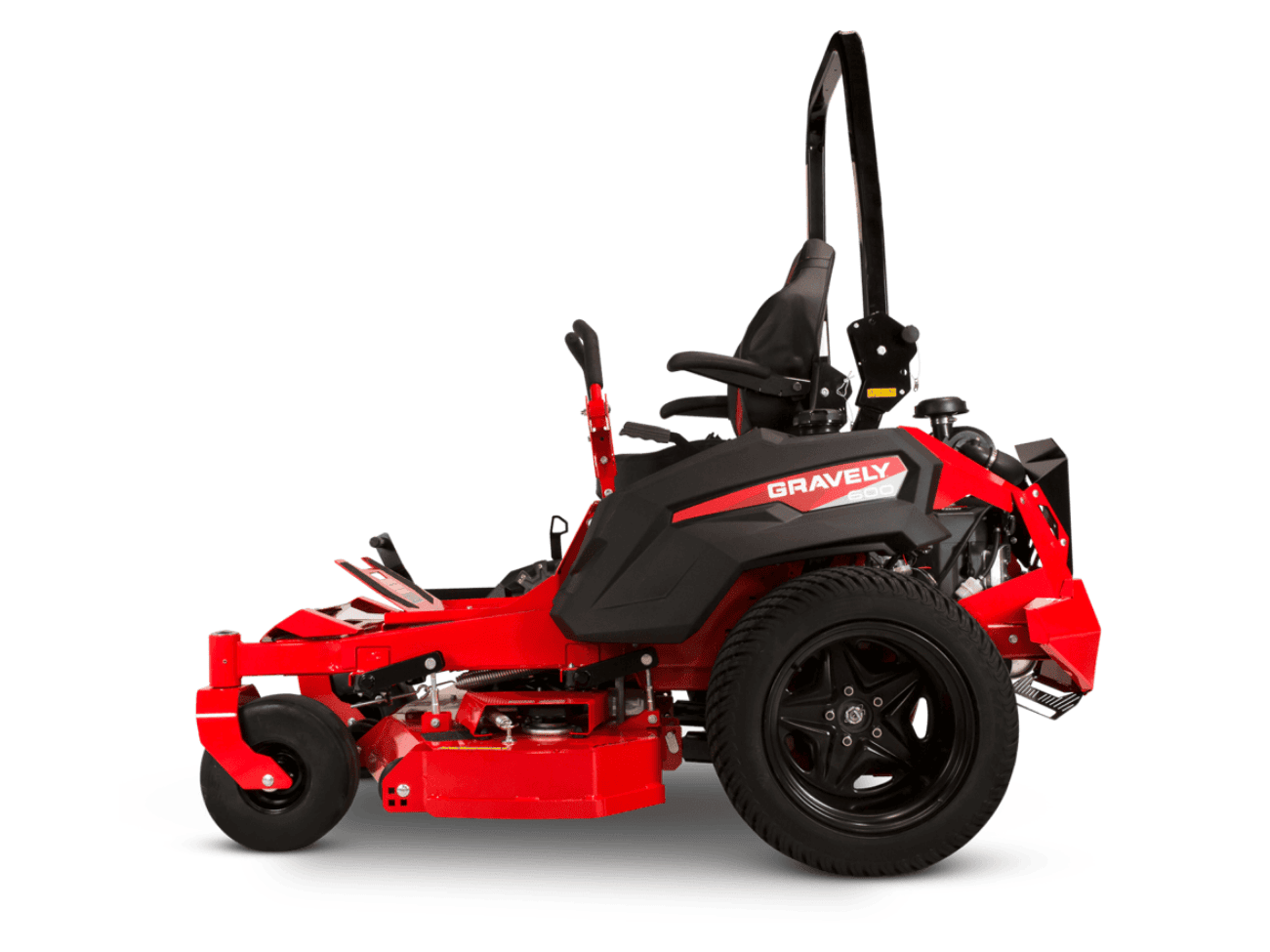

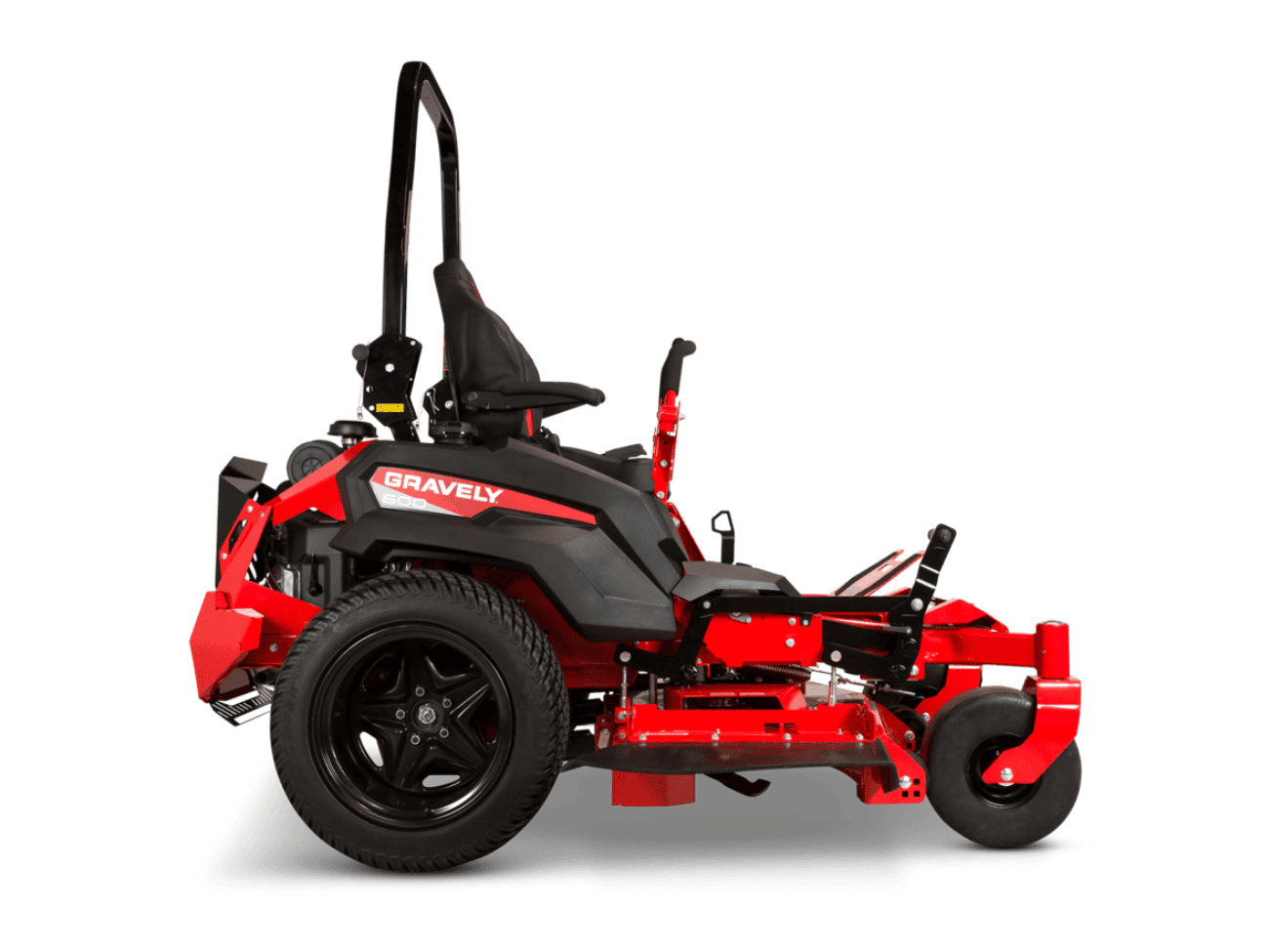

Zero-Turn Mower Gravely Pro-Turn 652

Gravely Mowers are available in all KC Equipment Branches: Yatala, Lismore and Murwillumbah. If you have any questions or need assistance with shipping options, our team at KC Equipment is here to help. Simply click on the enquire online button and follow the prompt or give us a call on 07 3297 3000 for our KC Equipment Yatala office, 02 6622 8122 for our KC Equipment Lismore office and 02 6672 2555 for our KC Equipment Murwillumbah office. We’re looking forward to helping you find the perfect solution!

Description

Gravely Pro-Turn 652: Maximum Efficiency, Built for Crews

Add serious productivity to your landscaping team with the Gravely Pro-Turn 652 — a commercial zero-turn mower designed for speed, precision, and durability. Built to handle more work in less time, this high-performance unit delivers smoother rides and cleaner cuts across all terrains.

Featuring a redesigned X-Factor® 3 Deck made from heavy-duty 7-gauge steel, the Gravely Pro-Turn 652 offers superior grass dispersion and long-lasting reliability. With advanced traction from both front and rear tires, it glides over grass with ease — making it one of the most efficient commercial mowers on the market.

Key Features of the Gravely Pro-Turn 652

• A premium quality 27 hp Kawasaki FX850V – Twin Engine Featuring a Multi-Stage Remote Canister Heavy Duty Air Filter System and Cast-Iron Cylinder Liners.
• PARKER HTG Dual Hydrostatic Transmission.
• Suspension System, Makes you Feel like you’re part of the Machine, Giving you More Control and Comfort by Removing Bumps and Jolts, even while Mowing at Higher Speeds. That Means Less Fatigue by the End of the Day.
• Dial-A-Height. This Lets the Operator Easily Adjust the Deck Height by Quarter-Inch Increments.
• Large Diameter Tires Both the Front and Rear Tires Provide a Smoother Ride and More Traction on Varying Conditions.
• Offers 19 Cutting Positions, Ranging from 25.4 mm – 139.7 mm, to Make your Lawn Look its Best.
• X-FACTOR® 3 Deck – The Deck Has Been Completely Redesigned for Better Grass Dispersion. Its New Look is Constructed from 7-Gauge Steel to Deliver Years of Solid Performance.
• Forged Aluminium Cutter Spindles with Sealed Ball Bearings.

Specifications

Warranty Information

• Domestic Warranty: 5 Years / 1500 Hour Domestic Warranty
• Commercial Warranty: 5 Years / 1500 Hour Commercial Warranty
• Hire/Rental Warranty: 90 Day Hire/ Rental Warranty

Miscellaneous

• Blade(s): 3 x Bar Blades

Dimension Specs

• Dry Weight: 696.2 kg
• Height: 1816 mm With ROPS Up, 1214 mm With ROPS Down
• Width: 1297 mm With Chute Up
• Overall Length: 2108 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up To 24.1 km/h Forward
• Brakes: Hand Park Brake
• Seat: High Back Bolstered w/ Suspension Pod System
• Construction: Frame 1″ x 3″ STEEL Tubular Frame Welded
• Hour Meter: Standard
• ROPS: Standard
• Controls: Hand-Operated Choke, Throttle, Ignition Switch, Electric Mower Clutch, Hand Park Brakes
• Cup Holder: Yes
• Deck System: X-Factor® 3 Fabricated
• Deck Lift: Foot Operated
• Deck Construction: Fabricated 7 Gauge w’ 1/4″ Spindle Reinforcement
• Blade Drive: V-Belt Drive to Spindles with Electric Clutch. Spring Tension Idler Pulleys for Extended Belt Life
• Blade Tip Speed: 18,000 FPM
• Spindles: Forged Aluminium with Sealed Ball Bearings
• Steering: Twin-Lever Steering Provides Independent Control of Each Drive Wheel. Speed, Forward, Reverse, and Turns are All Controlled With Hand-Operated Controls.

Engine and Fuel Specs

• Engine: Kawasaki FX850V
• Engine (cc): 852 cc
• Type: Air Cooled, 90-Degree V-twin, Normally Aspirated Petrol Engine
• HP: 27hp
• Cooling: Air Cooled Flywheel Fan
• Fuel: Unleaded Fuel – Maximum of 10% Ethanol in Fuel (See Engine Manufacturers Specifications)
• Fuel Filter: Replaceable, Automotive-Type
• Oil Filter: Spin-On Engine Oil Filter / Total Oil Capacity 2.1 Litres with Filter
• Air Filter: Multi-Stage Remote Canister Heavy Duty Air Filter System
• Fuel Capacity: 47.9L
• Governor: Mechanical

Safety Features

• Safety Features: Operator Presence System Connected to Clutch, Seat, and Park Brakes.

Mowing Deck Specs

• Kit – Mulch: Available Optional Accessory

Hydrostatic Drive System Specs

• Hydrostatic Drive System: Dual Hydrostatic
• Drive Cooling: Transmission Mounted Fans
• Transmission: Parker HTG Transmission

Cutting Dimensions

• Cutting Widths: 52″ (1321 mm) Cut Side Discharge
• Cutting Height(s): 19 Cutting Positions / 25 mm – 140 mm

Manufacturer’s Website

Gravely – gravely.com.au
