Description

The Massey Ferguson® 5M Series is built to deliver unmatched versatility, functionality and value. Whether you need a reliable machine with just the essentials or a fully customised workhorse, these tractors are designed to fit your operation perfectly. Choose your horsepower, transmission and the options you need to build a tractor that fits your operation’s needs. Ideal for small-to-mid-size row crop, dairy, livestock and hay farms, government municipalities and more, the MF 5M Series helps you get the job done without unnecessary extras or added costs.

Key Benefits

• High performance, efficiency and dependability from the AGCO Power 4cyl 4.4L engine used across all models
• New 145hp MF 5M.145 model: more engine and PTO power, higher torque, and increased lift capacity for an enhanced user experience
• Brake-to-Neutral switch: effortless stopping at the press of a button, improving clutch efficiency
• MF Smart Farming package provides straightforward technology
• Wide selection of Cab and ROPS models, with choice of engine horsepower, and Dyna-4 or 12 x 12 Synchro Shuttle transmissions

Features

Rugged Reliability and Fuel Economy

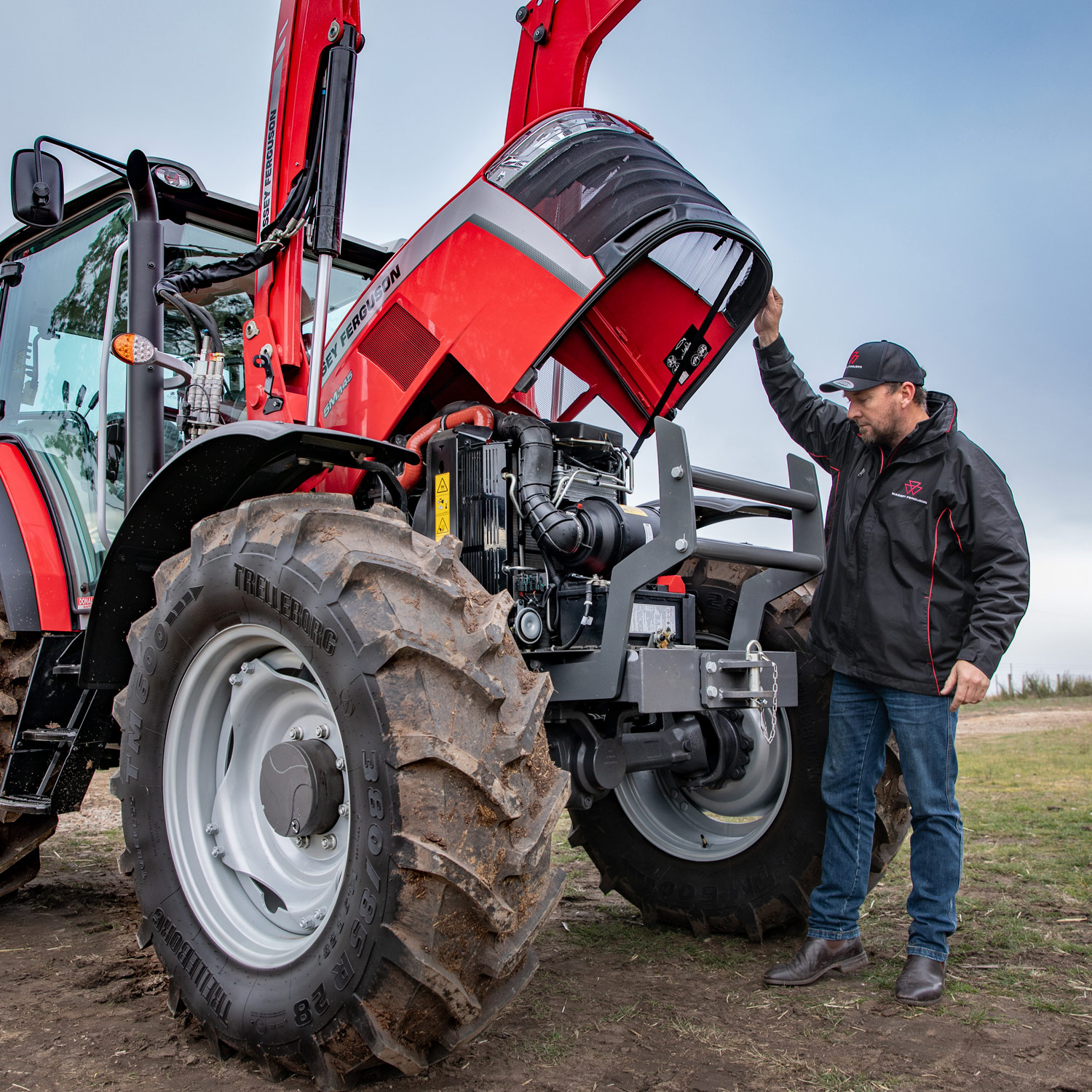

• The AGCO Power 4-cylinders 4.4L engine is easy to access for quick maintenance, and complies with Stage III emission standards. All models deliver the power you require (such as a high torque of 560Nm at only 1500rpm for the MF 5M.145), without needing high revs, reducing noise levels and fuel consumption. In addition, the fuel tank (produced in Beauvais), has increased capacity up to 198L (+24% compared to the previous series), for longer operation between refuelling, increasing productivity.

Optimum Control

• Proven for more than 20 years, the optional Dyna-4 transmission provides class-leading, clutch-free control of 16 forward and 16 reverse speeds with a 40km/h Eco top speed. Optional AutoDrive offers automatic shifting in Power and Eco modes, along with optional Brake-to-Neutral, which automatically disengages drive when the brake pedal is pressed. Dyna-4 offers ultimate ease of operation using the console-mounted T-lever and Massey Ferguson’s exclusive left hand, Power Control lever. This enables operators to shuttle between forward/reverse or neutral – leaving the right hand free to operate a loader or other implements.

The All-Rounder

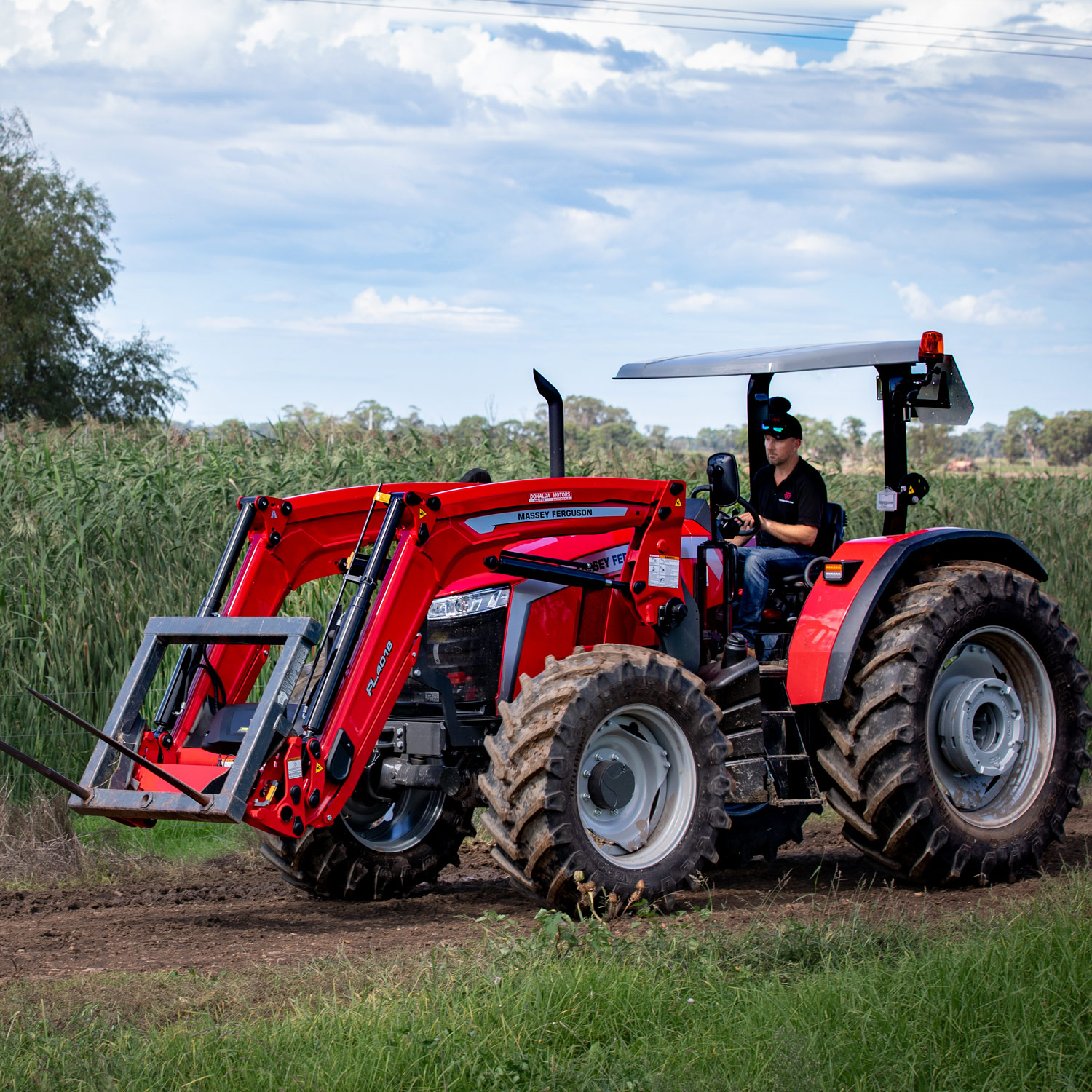

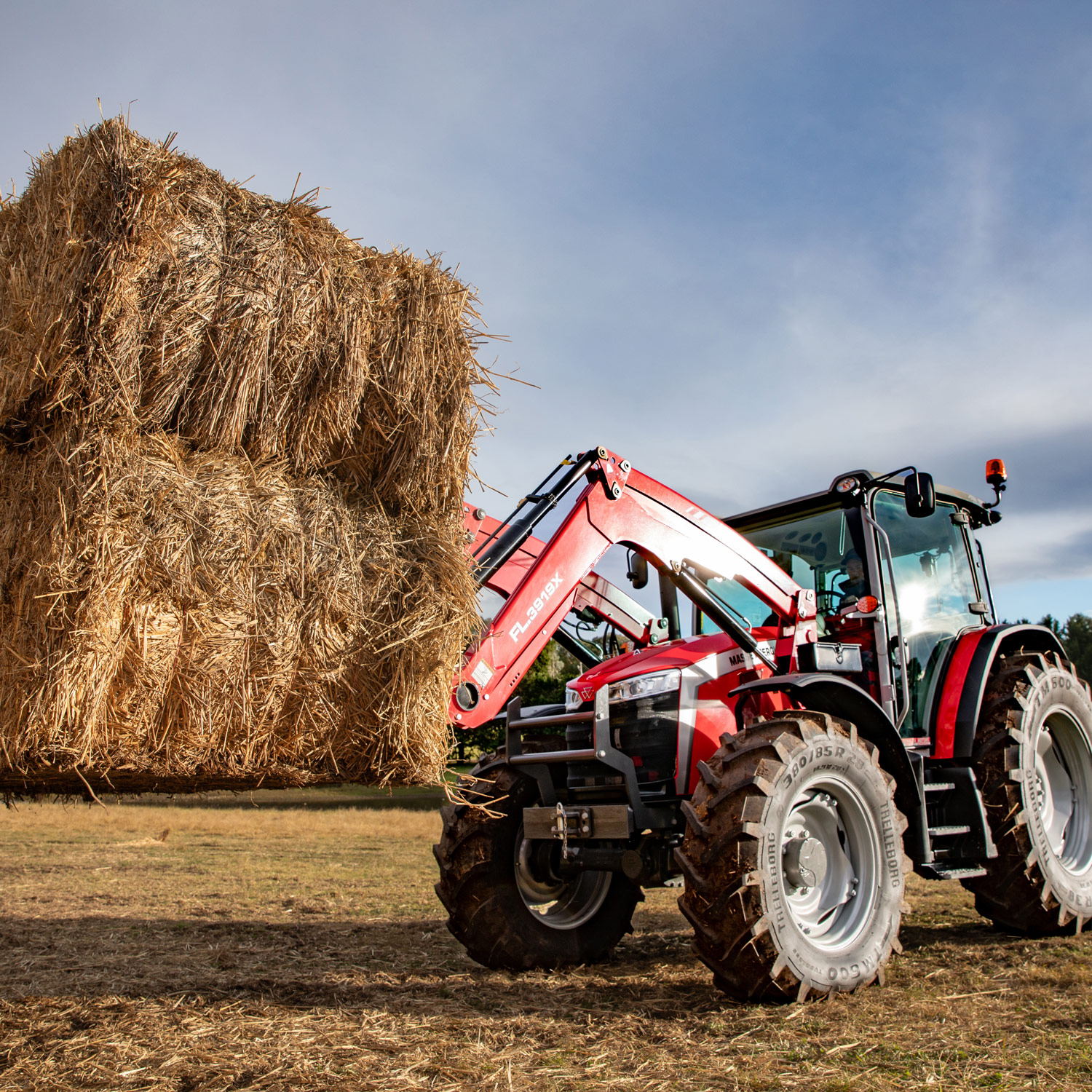

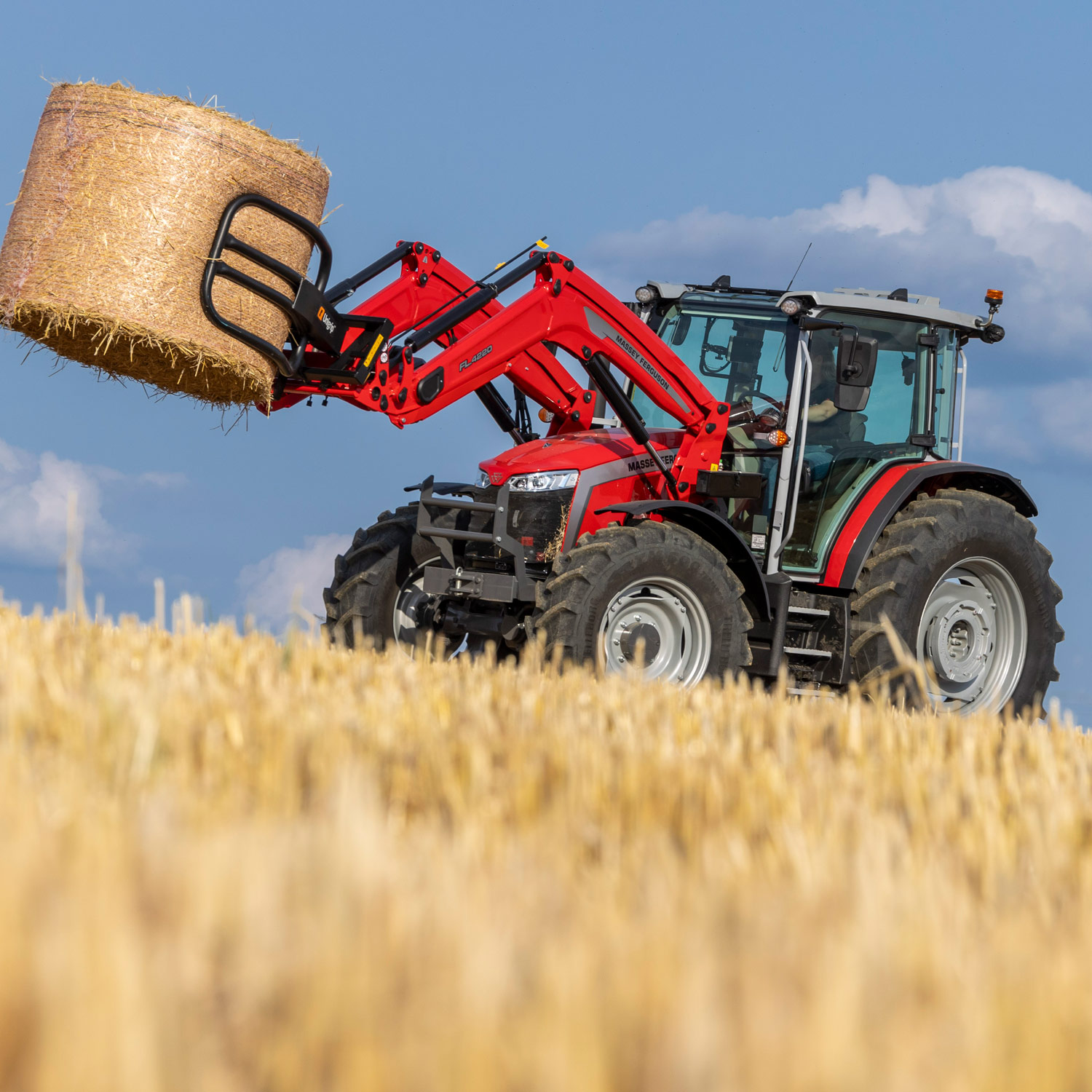

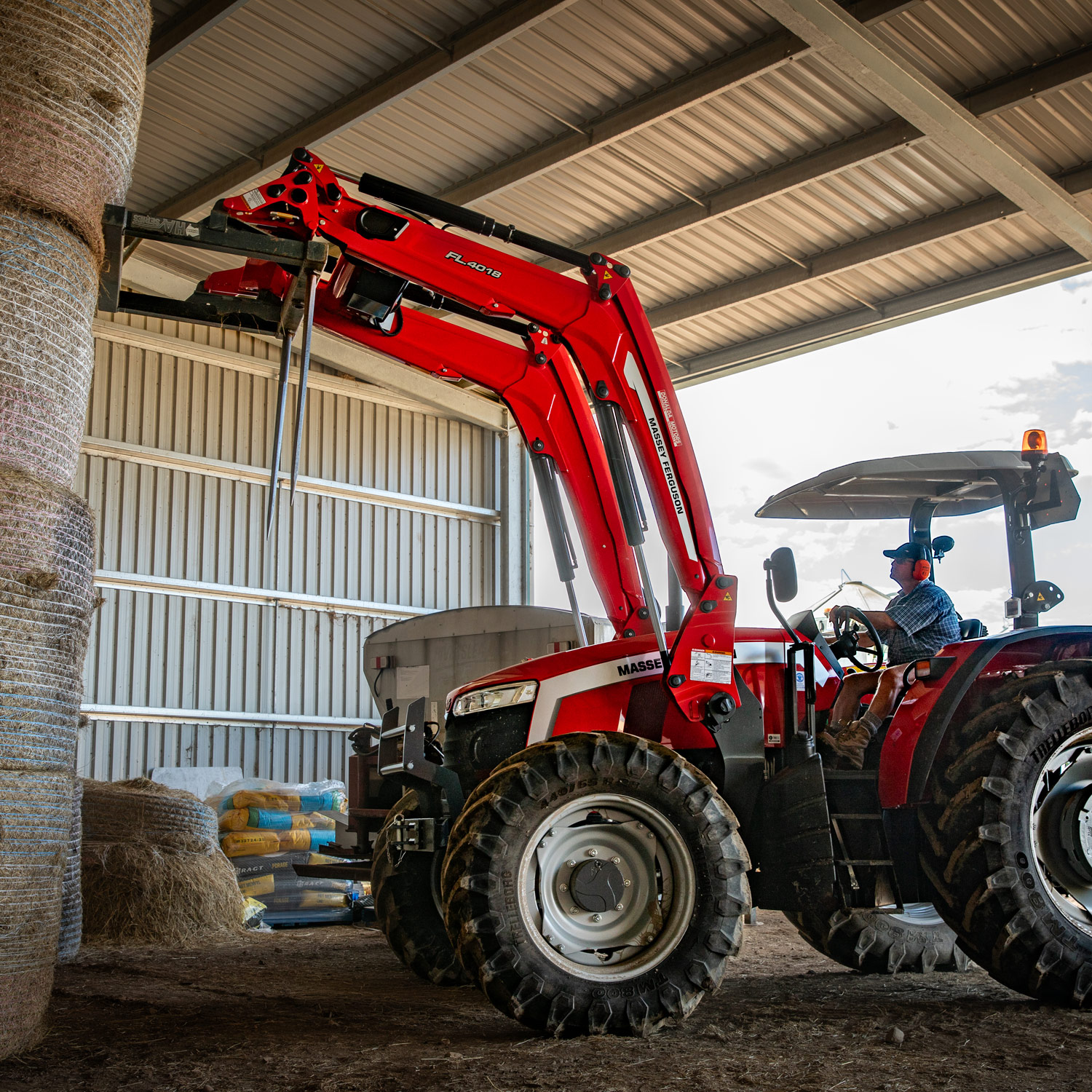

• Designed for unmatched versatility, its compact wheelbase, tight turning angle, and low height allow access to all types of buildings. Lifting capacity, from 4.3t to 5.2t, with Electronic Linkage Control, makes it ideal for yard work, grassland and arable operations. An open-centre hydraulic system, powered by two gear pumps, delivers 33L/min for internal services and 58L/min for auxiliary functions. Our standard hydraulic system upgrade provides 100L/min combined flow at 2220rpm for enhanced loader operation. Weighing 4t, the MF 5M offers easy road transport, carrying 4.5t or towing up to 32t at 40km/h. Fully compatible with MF FLX and MF FL Series loaders, it offers excellent manoeuvrability with a choice of mechanical or electronic joystick and the optional Visio roof.

The Right Level Of Comfort

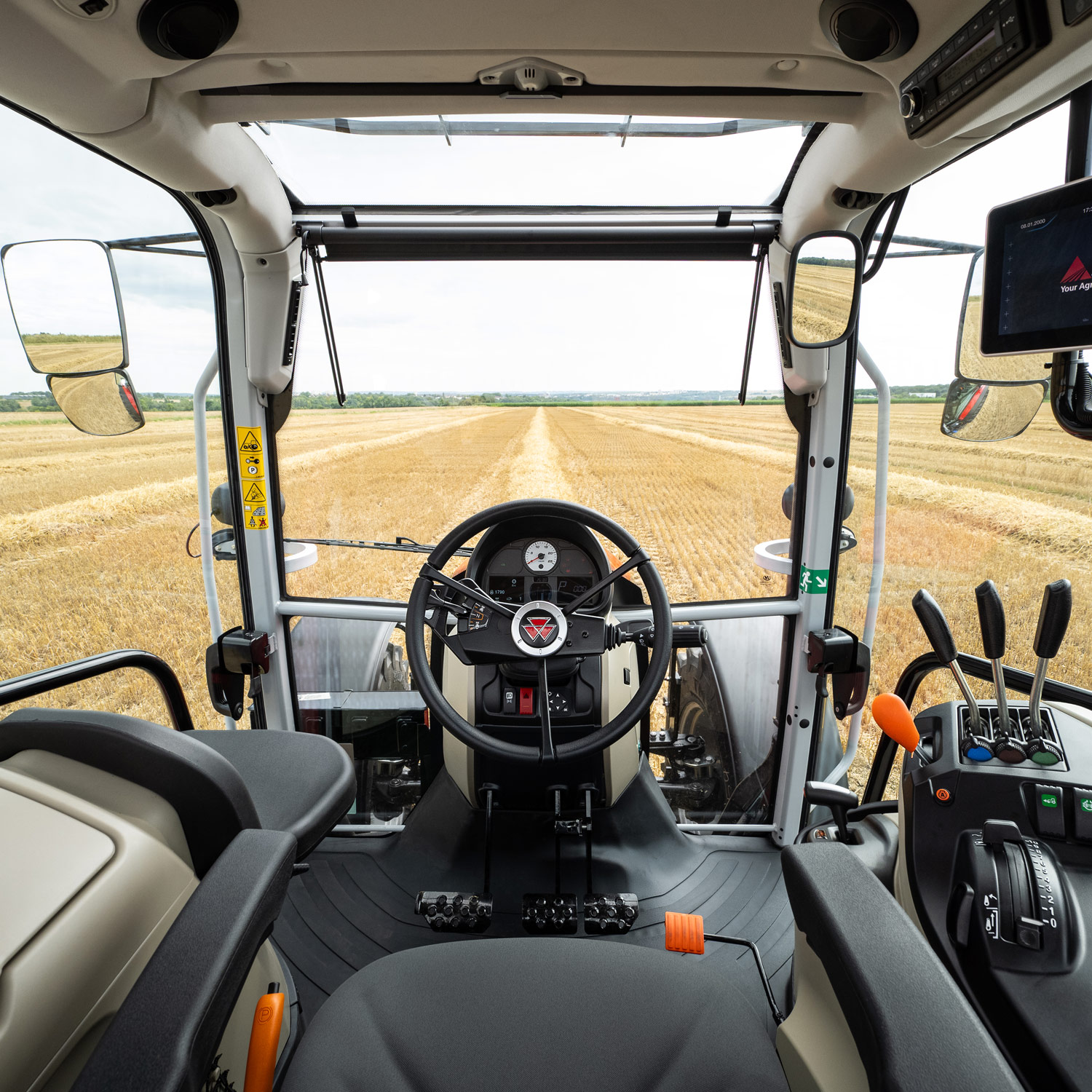

• Inside the spacious cab, you will find the quality you expect, and a range of useful factory-fitted options. Perfect visibility is ensured, thanks to the slim bonnet, the discreet exhaust pipe, the wide glass area and the optional LED lighting package, for extra productivity and safety during long working days. Joysticks, levers and all other controls are at your fingertips, designed and located for ease of use. High quality seats and optional cab suspension increase the pleasure of driving this tractor.

Straightforward Technology

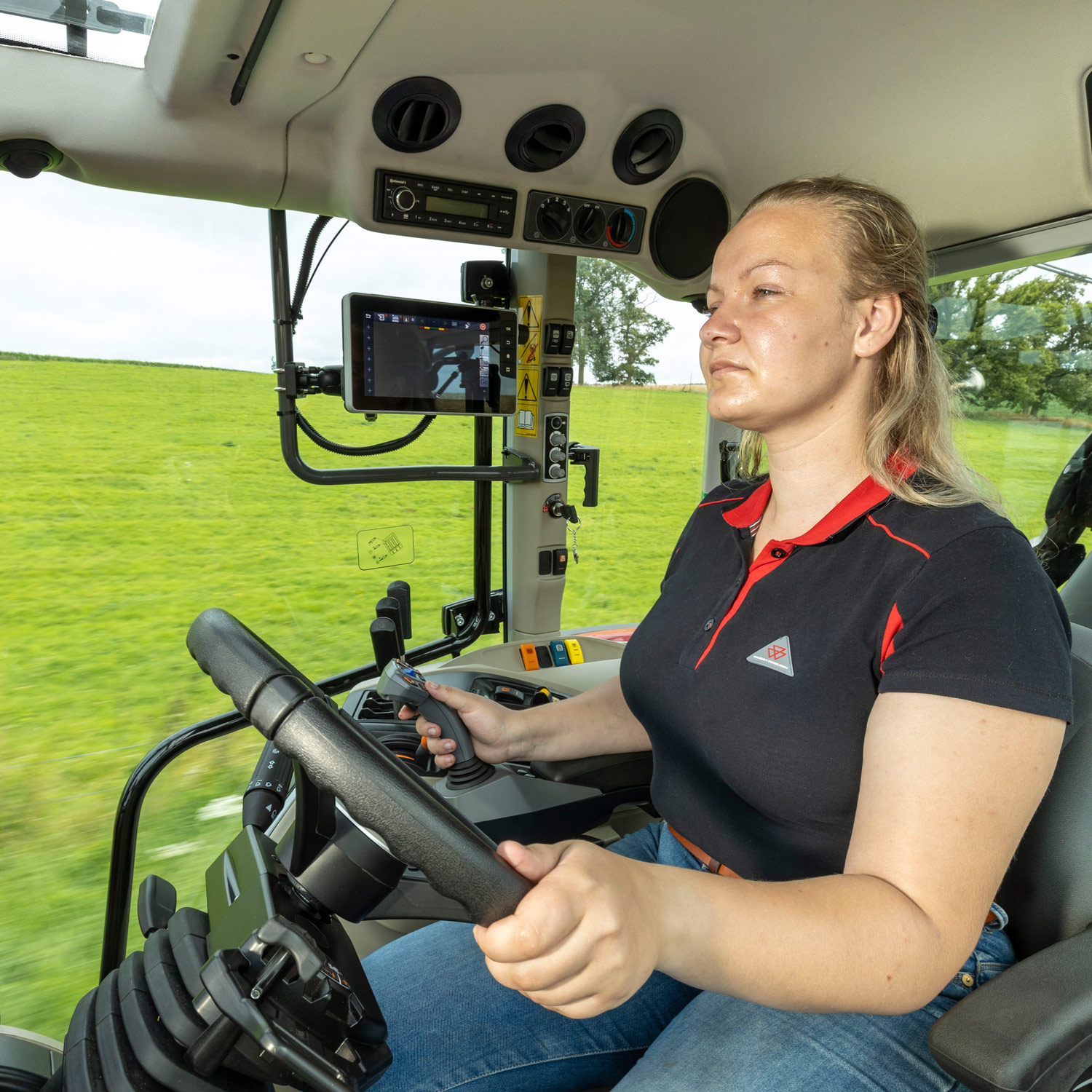

• Customers can now benefit from the MF Smart Farming package (MF Guide, MF Section Control, MF Rate Control, ISOBUS, MF Task Doc and camera display), available as a factory-fitted option. The intuitive Fieldstar 5 touchscreen seamlessly integrates the entire package. All these solutions ensure compatibility with modern farming, ensuring versatility, efficiency, ease of use, and making it a powerful ally on any farm.

Models

MF 5M.95 ROPS – 95hp, 12 x 12 Synchro Shuttle
MF 5M.95 Cab – 95hp, 12 x 12 Synchro Shuttle
MF 5M.105 ROPS – 105hp, 12 x 12 Synchro Shuttle
MF 5M.105 Cab – 105hp, Dyna-4
MF 5M.115 ROPS – 115hp, 12 x 12 Synchro Shuttle
MF 5M.115 Cab – 115hp, Dyna-4
MF 5M.125 ROPS – 125hp, 12 x 12 Synchro Shuttle
MF 5M.125 Cab – 125hp, Dyna-4
MF 5M.135 Cab – 135hp, 12 x 12 Synchro Shuttle
MF 5M.135 Cab – 135hp, Dyna-4
MF 5M.145 Cab – 145hp, Dyna-4

Specifications

Please download the KC Equipment Massey Ferguson 5M Series brochure for more information.
