John Berends Implements

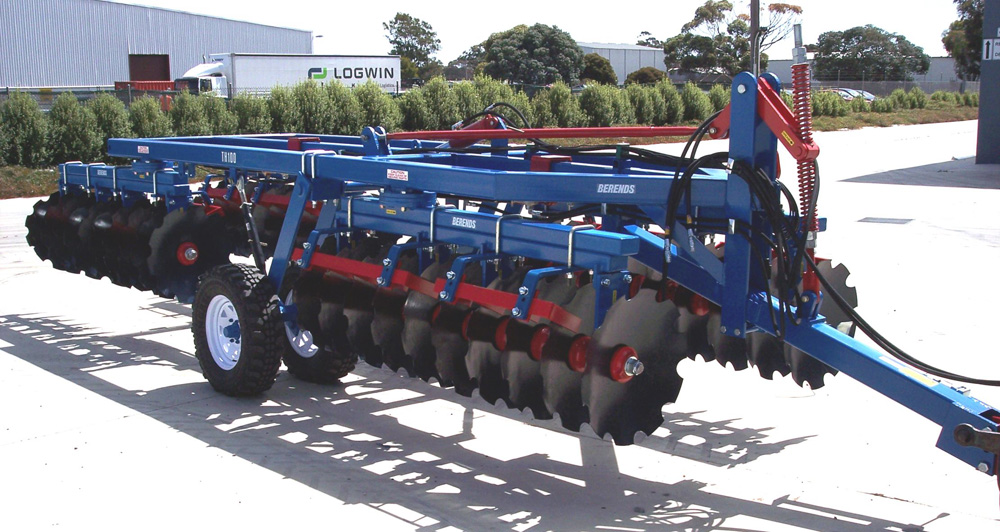

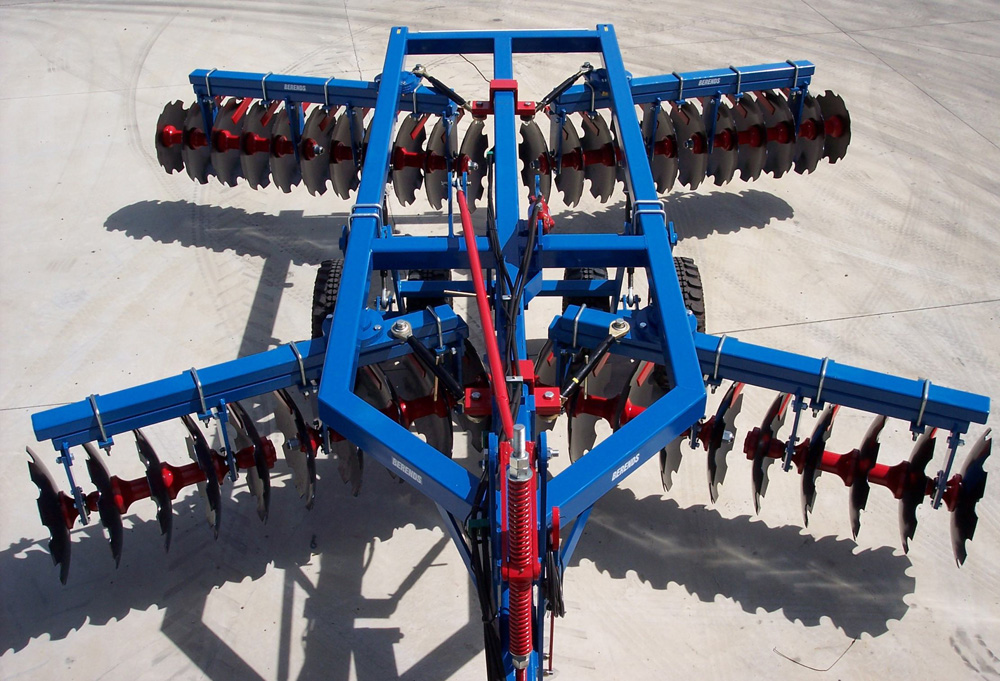

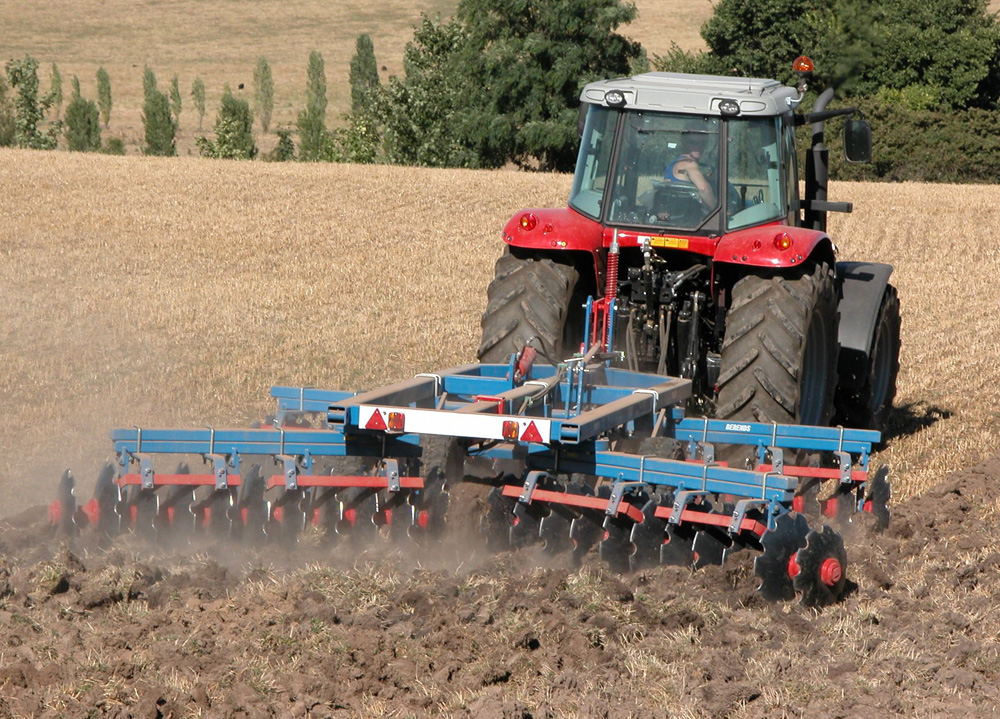

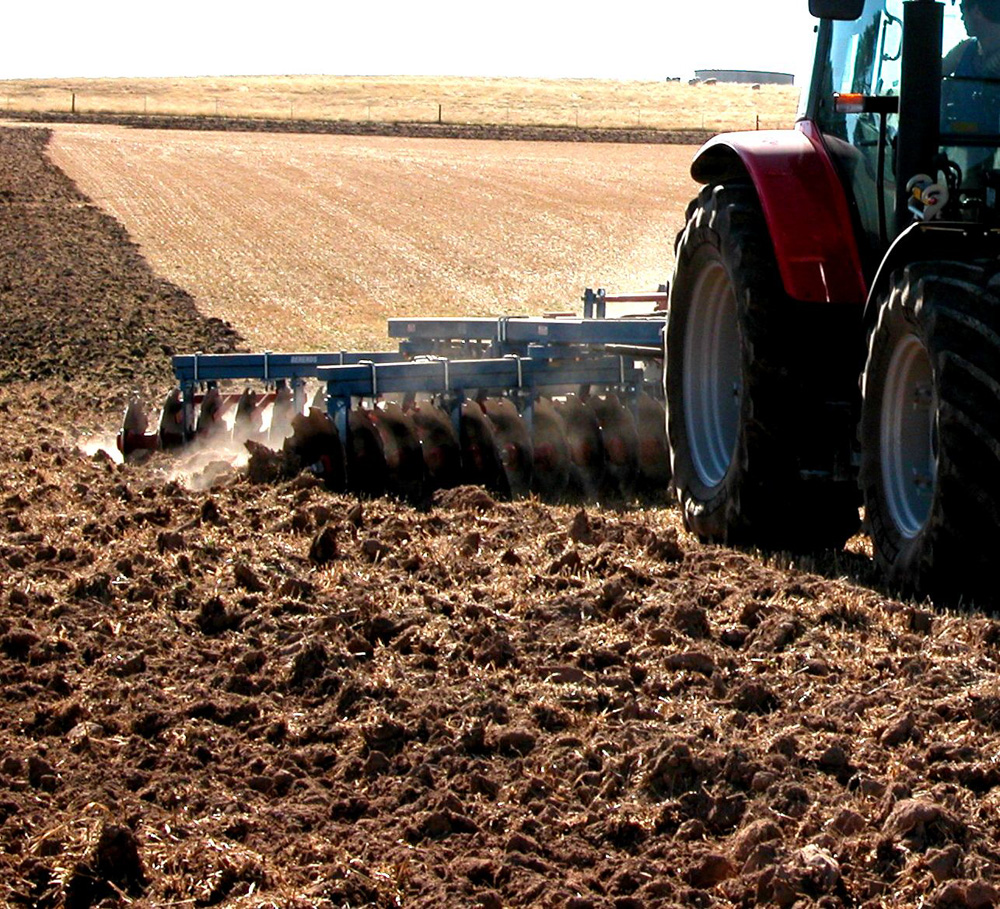

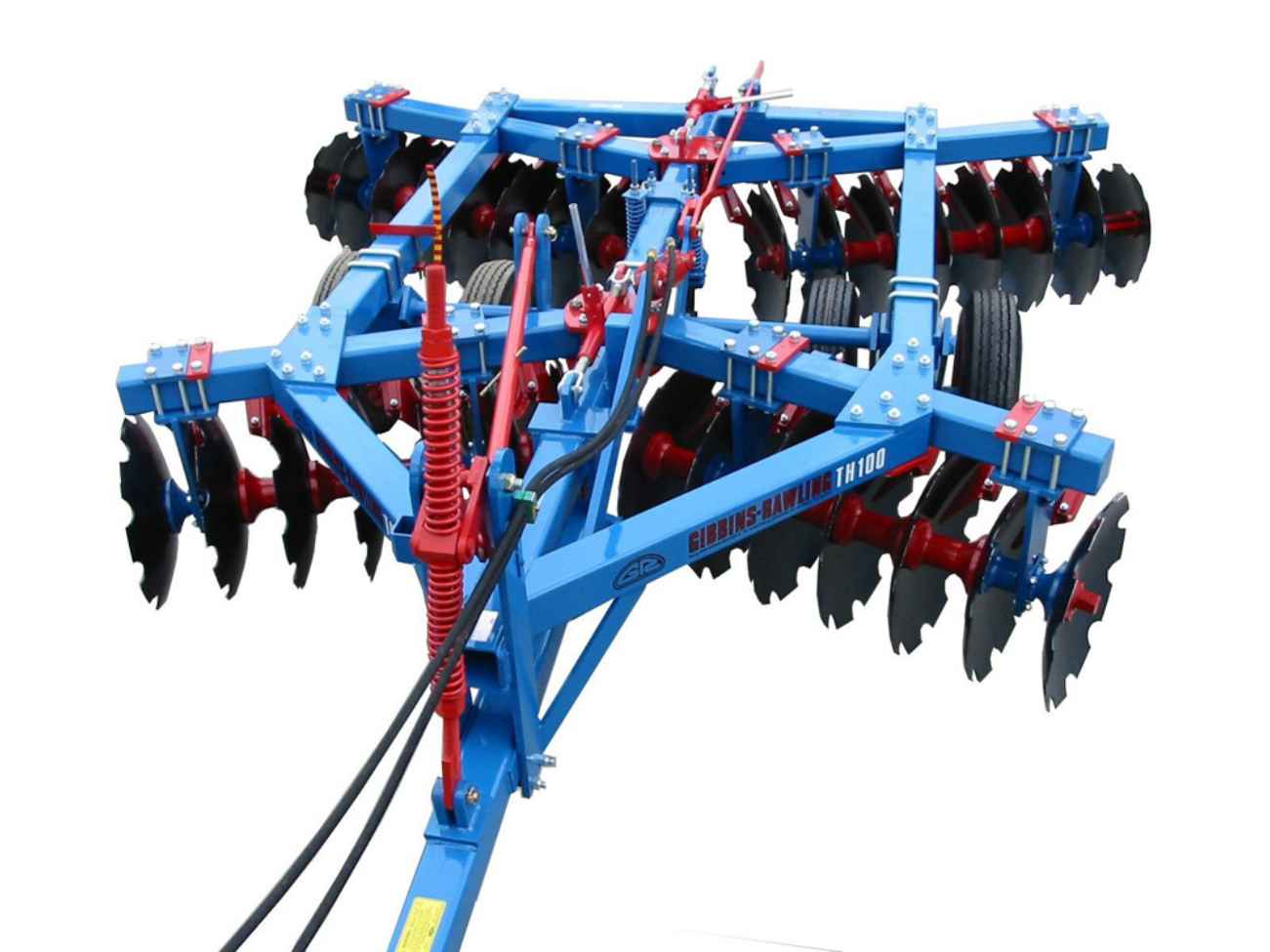

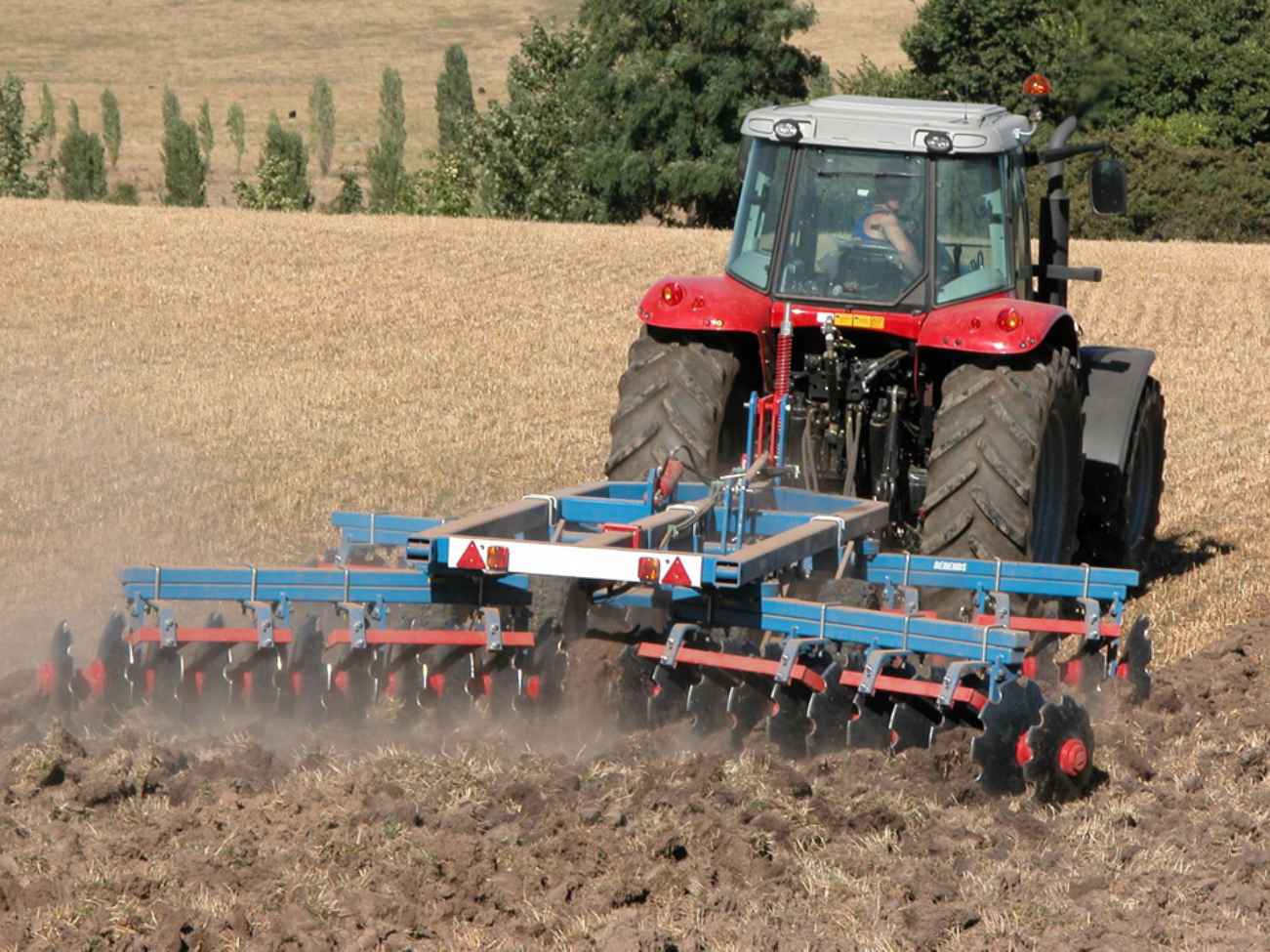

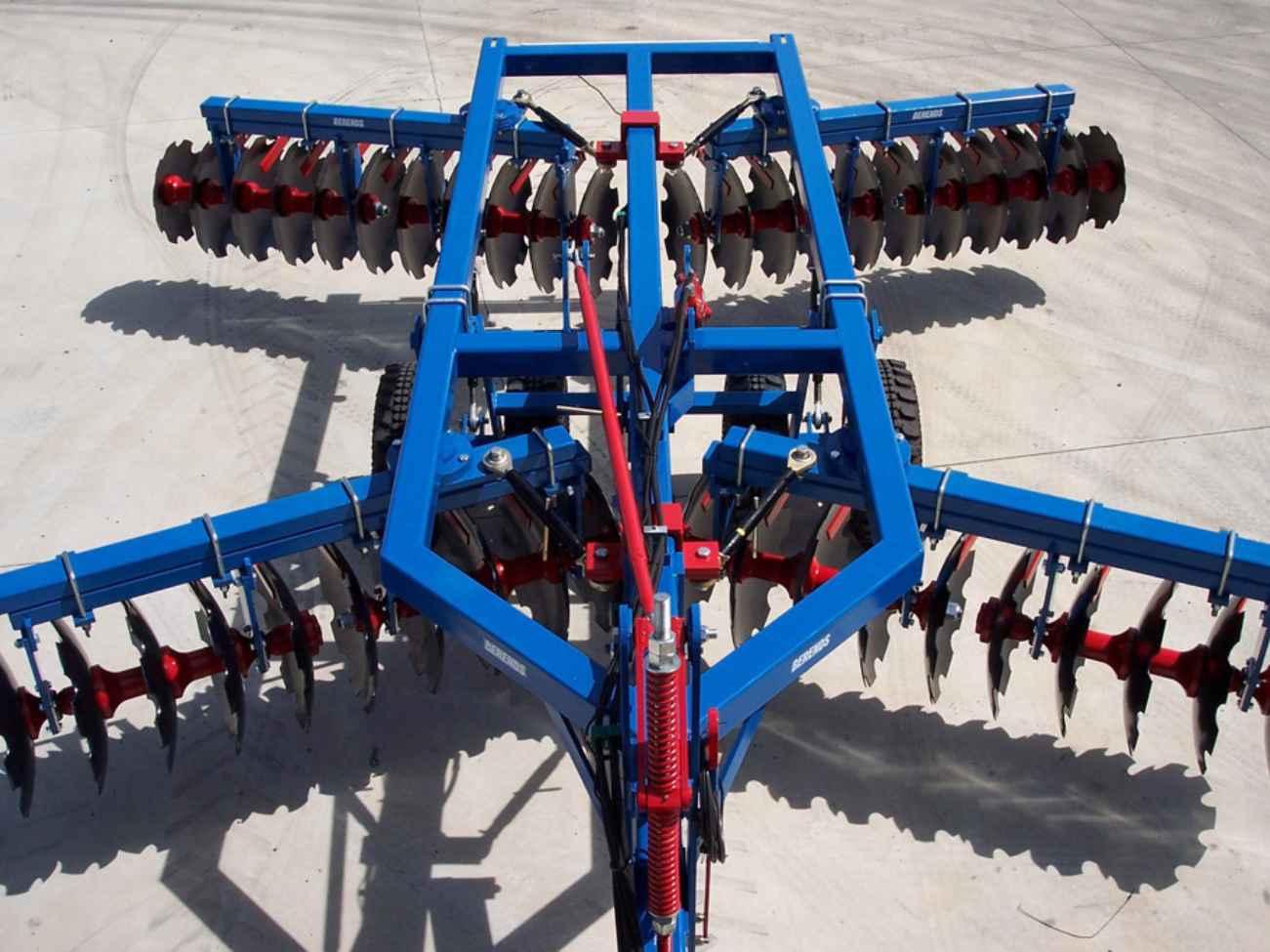

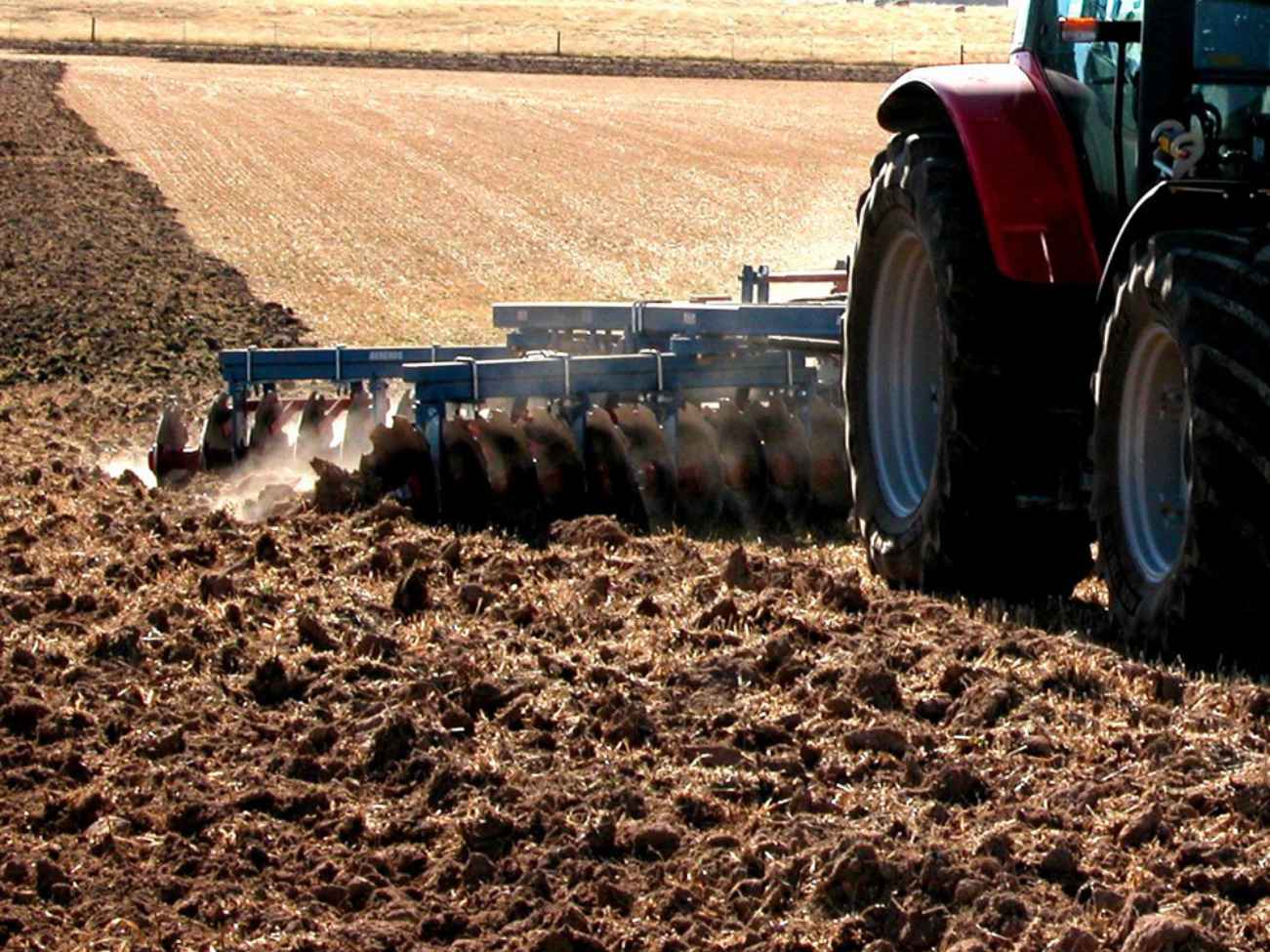

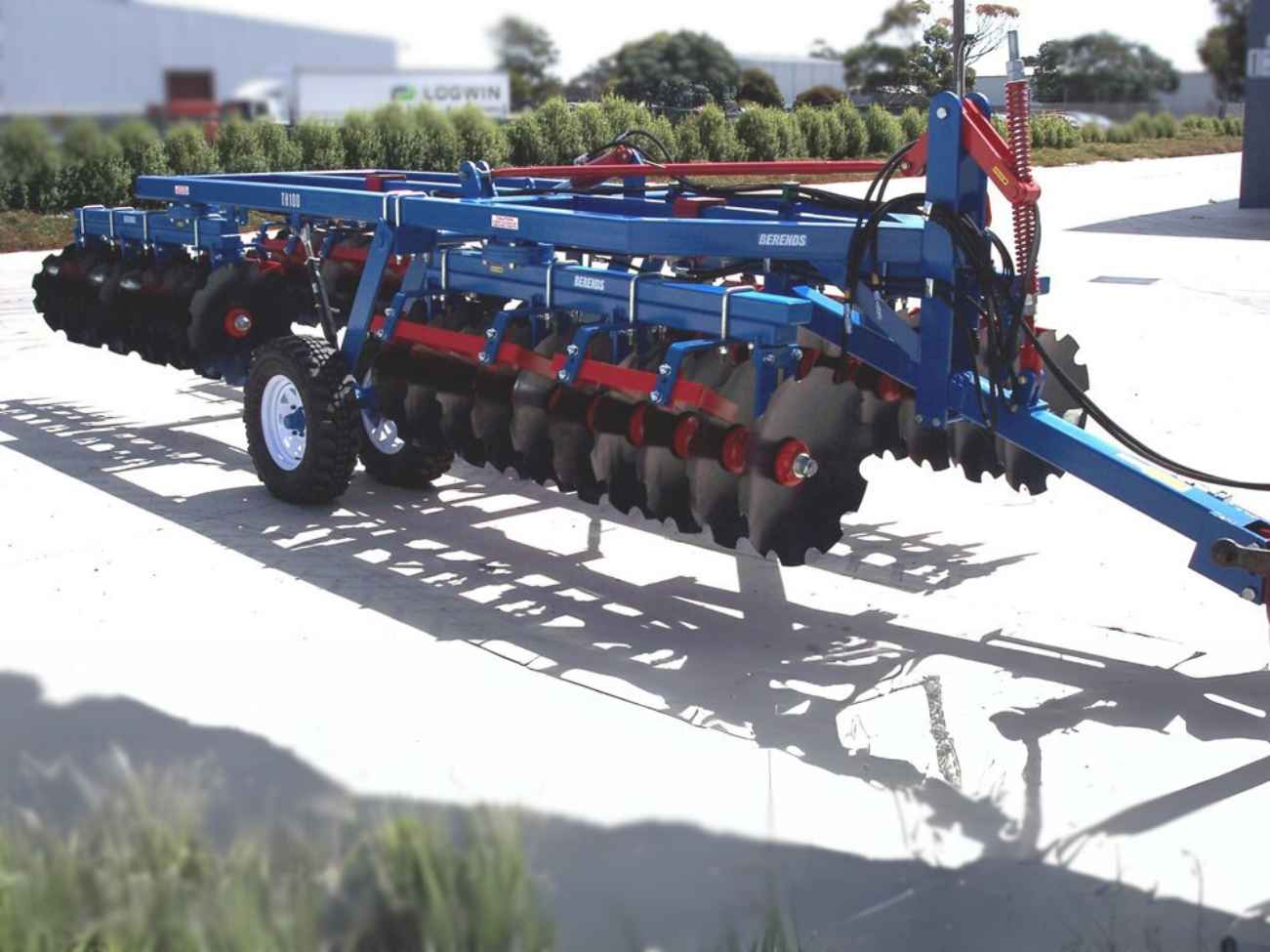

TH100 Folding Trailing Tandem Discs
Hydraulically Folding For Extra Wide Cultivation
Available in 28, 32, 36, 40, 44 and 48 Plate Models
From
$39,765
Inc. GST
Pickup Or Delivery
Stock: Enquire Online

Description

Designed for extra wide primary and secondary tillage in tough conditions. The TH100 Folding Trailing Tandem Disc Plough combines legendary Gibbins Rawling design with modern high quality components, including European Bellota Boron steel discs, Australian-made Eaton rams, and Ryco hoses.

The TH100 is available in 28, 32, 36, 40, 44 and 48 disc models, with cutting widths ranging from 3.43m (11’4″) to a massive 5.71m (18’9″)!

Three disc options are available: 24″ diameter discs, in either 5mm or 6mm thickness, and 26″ diameter discs with 6mm thickness.

All discs are long wear European Bollota Boron steel discs. Bellota Boron steel discs are manufactured under strict quality specifications that ensure correct hardness and uniformity throughout the disc. This includes clamp hardening to prevent distortion, lathe turning of the edges and hardening to 50HRc for low wear and long life.

All TH100 models are fitted with hydraulic gang adjustment. It has been designed so that the gangs fold parallel with the main frame, resulting in less than 2.4m overall width when folded. The gangs can also be fully opened, when only a fine till of the topsoil is required.

The TH100 includes all of the heavy-duty features of the RM75 and RM80, including solid cast spools, flanged disc bearings, 5 ton axle and more. A buster tine removes the centre ridge to create a level soil finish, and furrow fillers are integrated into the unit and included as standard.

Prong scrapers and parking jack are standard. Formed scrapers available as an option.

A note on Gibbins Rawling – In 1986, John Berends Implements brought Gibbins-Rawling. By taking on the Gibbins Rawling range, John Berends could offer a quality range of discs that had a long and respectable history with Australian farmers. The Gibbins Rawlings name and colours were kept until 1998, after which all machines were painted in Berends colours.

Application

Heavy duty tillage

Features

  • Fitted with four Land Cruiser wheels on a 5 ton axle
  • Hydraulic wheel lift is standard
  • All models fitted with Australian made Eaton rams
  • Australian made Ryco hoses are used, with a minimum burst pressure of 20,400psi
  • Hydraulic gang adjustment
  • Folded width less than 2.4m
  • Solid cast spools, to keep weight in gangs (rather than frame)
  • Fully adjustable drawbar height with parallel lift for better transportation
  • Wheel kit locking arms reduce stress on the hydraulics when transporting
  • 40mm square high tensile gang bolts
  • Flanged disc bearings designed specifically for severe tillage applications
  • Prong scrapers included standard
  • Optional formed scrapers
  • Parking jack included standard
  • Integrated furrow fillers are standard
  • Made in Australia using quality long wear European Bollota Boron steel discs

Models

0966/0972/0960 TH100 – 28 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
0967/0973/0961 TH100 – 32 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
0968/0974/0962 TH100 – 36 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
0969/0975/0963 TH100 – 40 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
0970/0976/0964 TH100 – 44 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
0971/0977/0965 TH100 – 48 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs

Specifications

0966/0972/0960 TH100 – 28 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
Number of Discs – 28
Number of Bearings – 12
Number of Axles – 4
Cutting Width – 3.43m (11’3″)
Approximate Weight – 3290kg

0967/0973/0961 TH100 – 32 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
Number of Discs – 32
Number of Bearings – 18
Number of Axles – 8
Cutting Width – 3.88m (12’9″)
Approximate Weight – 3500kg

0968/0974/0962 TH100 – 36 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
Number of Discs – 36
Number of Bearings – 16
Number of Axles – 8
Cutting Width – 4.33m (14’3″)
Approximate Weight – 3680kg

0969/0975/0963 TH100 – 40 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
Number of Discs – 40
Number of Bearings – 16
Number of Axles – 8
Cutting Width – 4.8m (15’9″)
Approximate Weight – 3830kg

0970/0976/0964 TH100 – 44 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
Number of Discs – 44
Number of Bearings – 20
Number of Axles – 8
Cutting Width – 5.26m (17’3″)
Approximate Weight – 3980kg

0971/0977/0965 TH100 – 48 plate with 24” x 5mm/24” x 5mm/26” x 6mm discs
Number of Discs – 48
Number of Bearings – 24
Number of Axles – 12
Cutting Width – 5.71m (18’9″)
Approximate Weight – 4130kg

Note: Cutting Width does not include the width of the two furrow filler discs

Warranty

12 months on design and manufacture
