Our Products

John Berends Implements

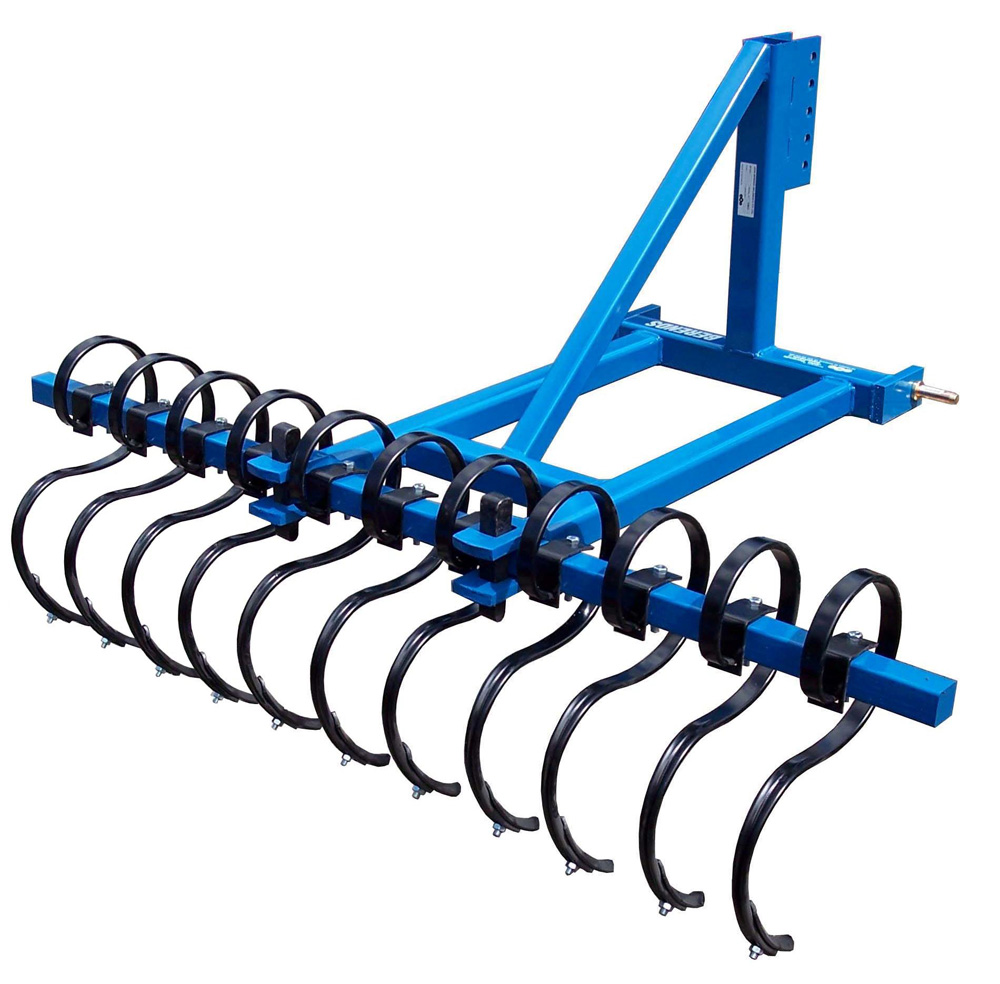

Stick Rakes Range
Quality Australian Made Rakes For All Tractors
Working Widths From 4' (1.2m) to 13'6" (4.15m)
From
$1,001
Inc. GST
Pickup Or Delivery
Stock: Item Available

Description

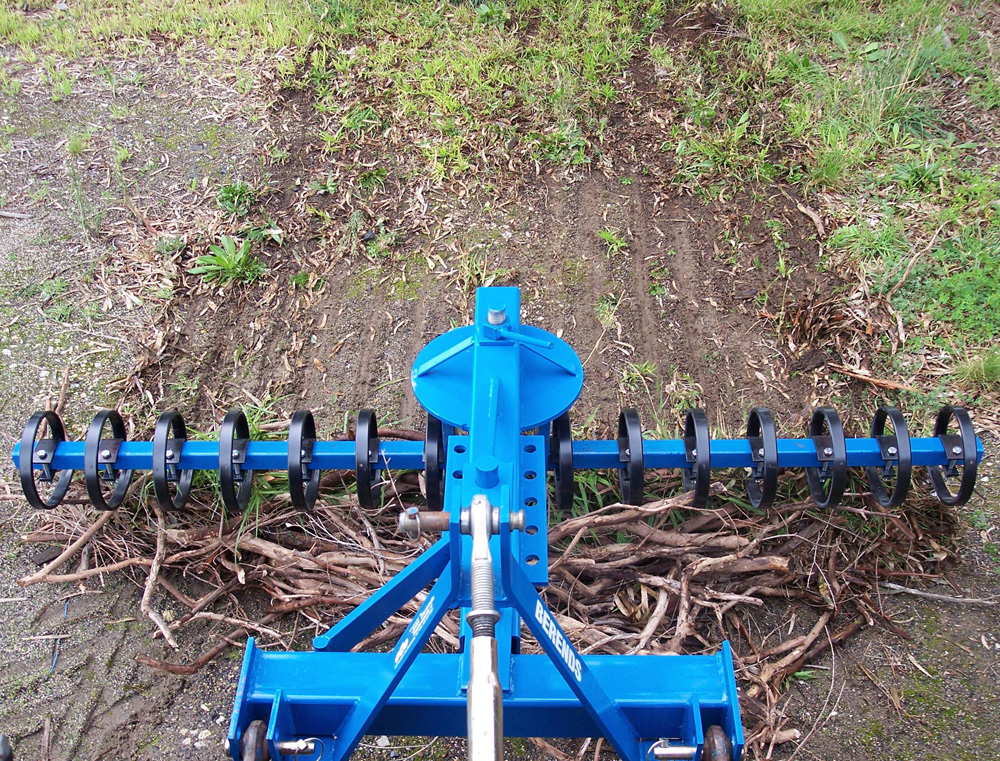

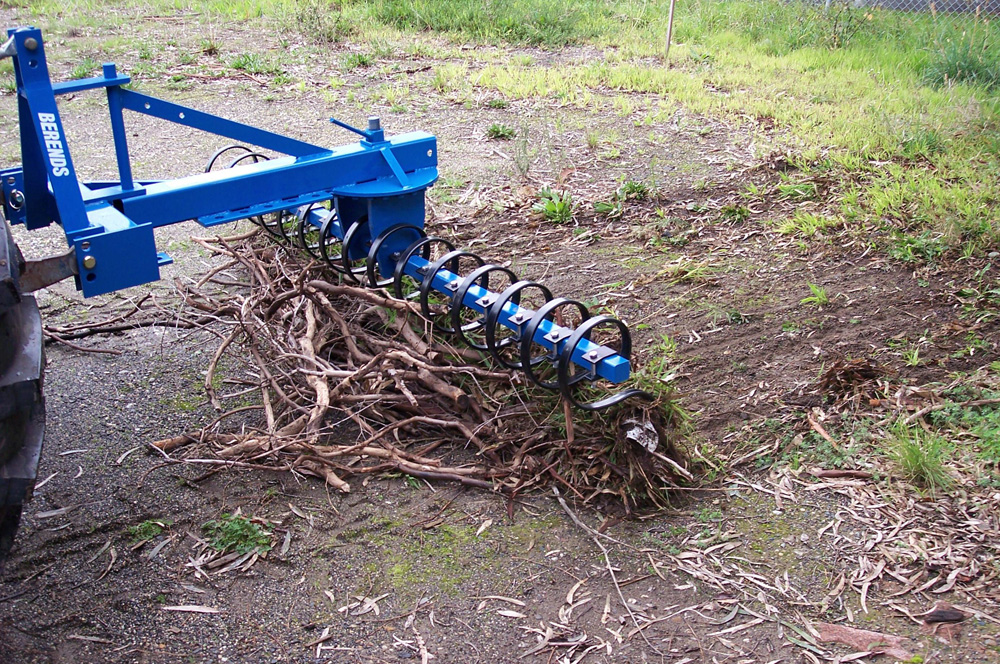

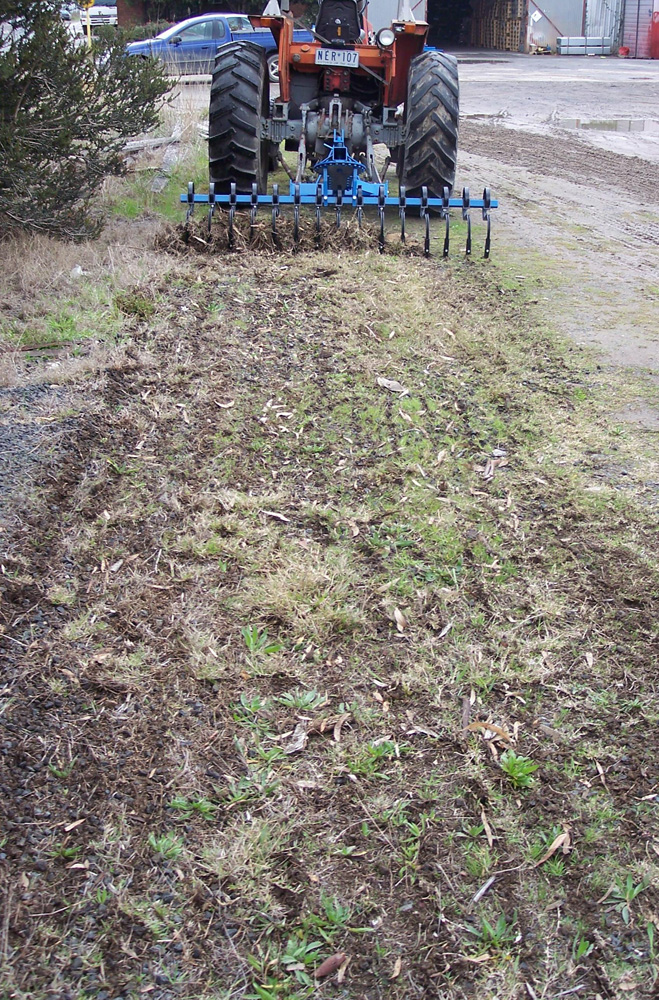

The ideal implement for raking up sticks, prunings and general trash. Also suitable for pasture harrowing in some conditions. Australian made and excellent value for money.

Range includes eight models, ranging from 4′ (1.2m – 9 tines) to 13’6″ (4.15m – 26 tines). The spacings on the S tines are adjustable, and optional grass points are available for pasture harrowing. Please specify if the unit is for a compact tractor, as lower linkage models are available. A pneumatic wheel kit is also available for depth control.

Stick rakes are also available as an option on the John Berends range of standard and medium duty grader blades.

Features

  • Underframe clearance of 400mm
  • Adjustable 32 x 10mm ‘S’ tines mounted at 6″ spacings
  • Tines feature replaceable points
  • Grass points available for pasture harrowing
  • Toolbar constructed from 2″ square Kl 045 (high tensile) solid bar
  • Available as standard on toolbar linkage and can be made offset for getting closer to trees, fences and sheds. Supported by quick release clamp and wedge arrangement
  • Optional pneumatic wheel kit available for depth control
  • Made in Australia

Model

0337 – 4′ (1.2m) Stick Rake complete with toolbar linkage – 9 tines
0338 – 5′ (1.5m) Stick Rake complete with toolbar linkage – 11 tines
0345 – 6′ (1.8m) Stick Rake complete with toolbar linkage – 13 tines
0342 – 7’6″ (2.3m) Stick Rake complete with toolbar linkage – 15 tines
0343 – 9’ (2.75m) Stick Rake complete with toolbar linkage – 19 tines
0344 – 10’6” (3.2m) Stick Rake complete with toolbar linkage – 21 tines
0346 – 12′ (3.65m) Stick Rake complete with toolbar linkage – 23 tines
0370 – 13’6” (4.15m) Stick Rake complete with toolbar linkage – 26 tines

Warranty

12 months on design and manufacture


Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
