John Berends Implements
Post Hole Digger Range
Made In Australia Using Premium European Gearboxes
Compact, Standard & Heavy Duty Models | 16-100hp
From
$1,705
Inc. GST
Pickup Or Delivery
Stock: Enquire Online

Please note that any prices shown for post hole diggers do not include an auger

Description

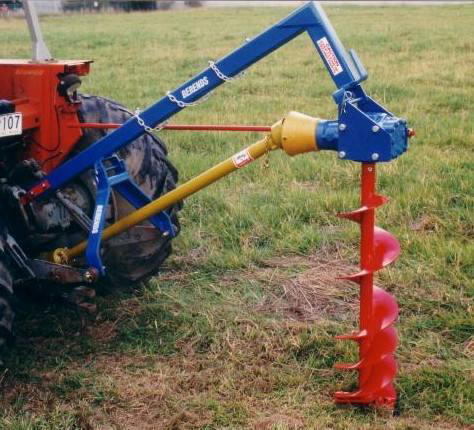

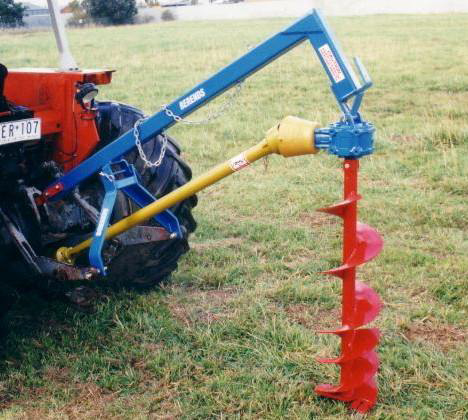

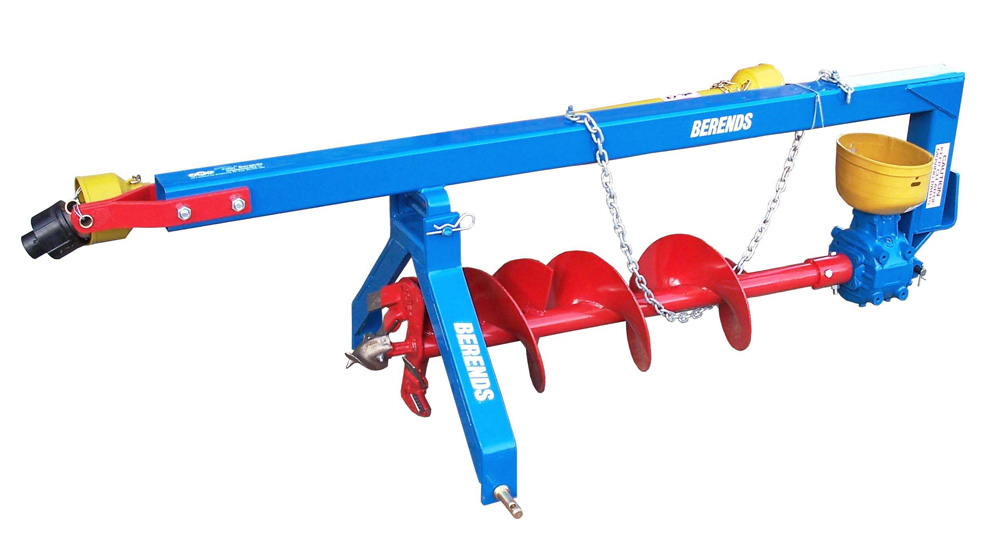

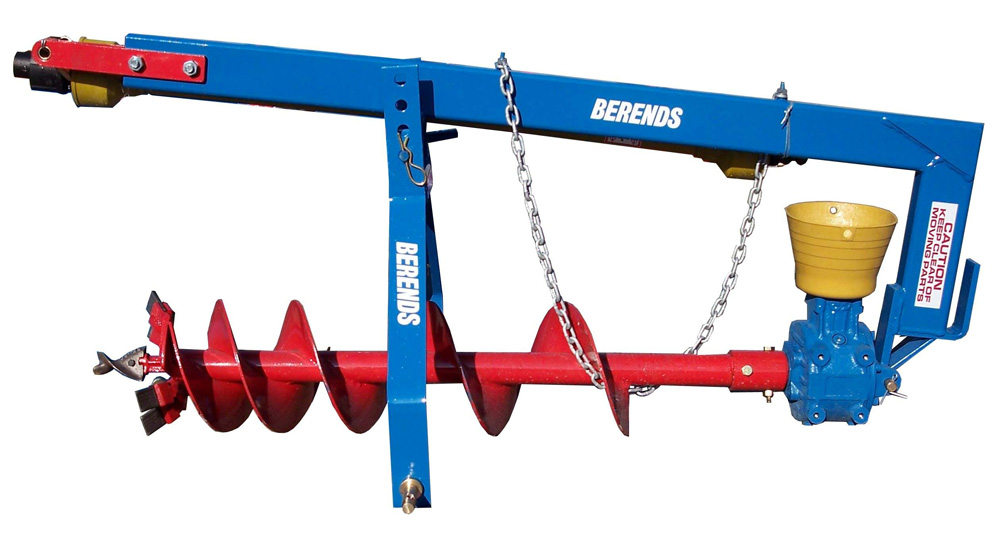

The John Berends range of Australian-made post hole diggers provide excellent performance and value for money. Three models are available – Standard, for augers 4″ to 12″ in diameter; Compact, for the same range of augers but with a frame designed for compact tractors; and Heavy Duty, for augers 4″ to 24″ in diameter. All three models will dig to a depth of 1200mm (if ground conditions permit).

The Compact model is designed for small horsepower tractors where linkage arms have limited lifting height. All models are fitted with jib hook and transport chain as standard. The Heavy Duty model is also fitted with an auger control handle for easy positioning.

All three models feature a high quality Series 3 PTO driveshaft with an L2 Torque Limiting Clutch at the tractor end. This is more effective than a slip clutch in this application.

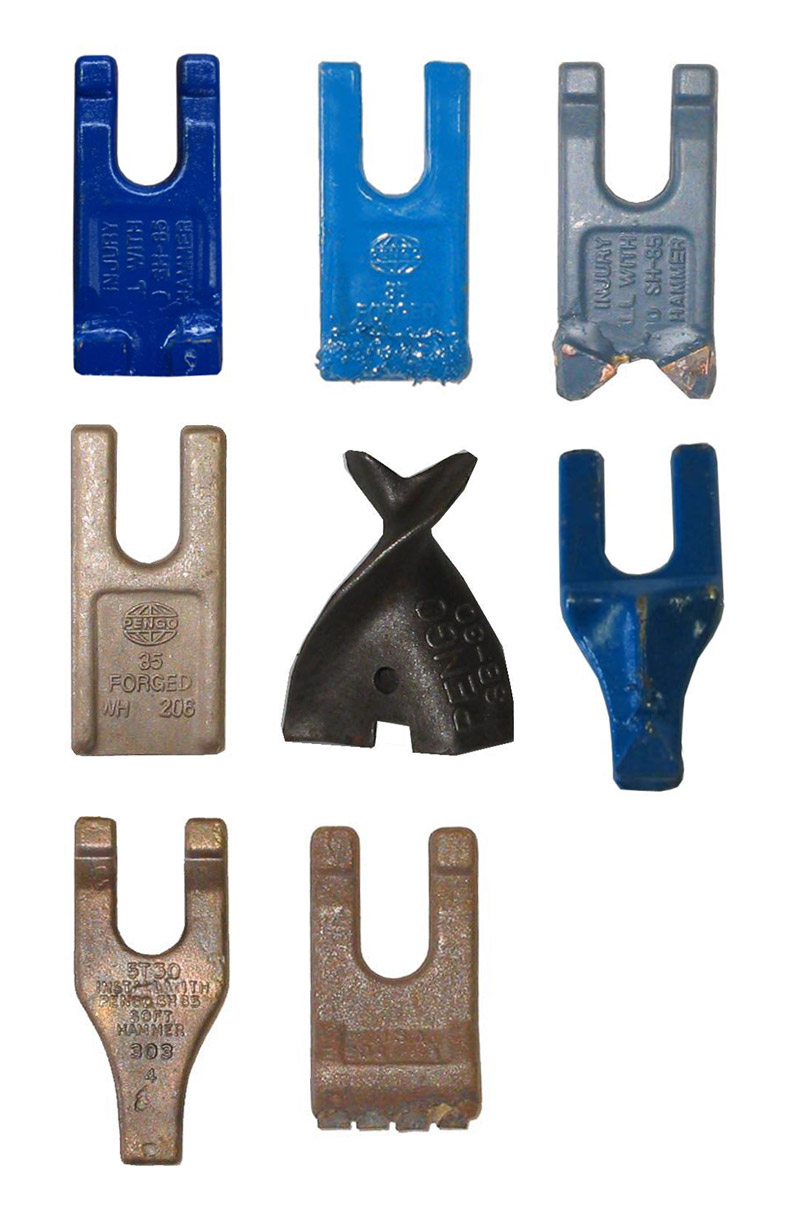

A range of augers are available, in 4″, 6″, 8″, 10″, 12″, 15″, 18″ and 24″ sizes. All augers are 1200mm long. All augers are fitted with a Pengo Boring Head, with replaceable earth teeth at 35° angles and bolt on pilots. All augers have a double cutting head. Optional teeth and pilots are available to suit various ground conditions. Conversion heads are available in most sizes to mount onto older augers (either in clockwise or anti-clockwise rotation).

Application

Digging footings for fencing and construction, holes for tree planting and landscaping

Features

  • High quality European gearboxes and drive shafts
  • Torque limited clutch as standard
  • Digs to a maximum 4′ (1200mm) depth if ground conditions permit
  • Standard model is suitable for augers from 4″ to 12″ diameter
  • Heavy Duty model suitable for augers from 4″ to 24″ diameter
  • Jib hook and transport chain standard

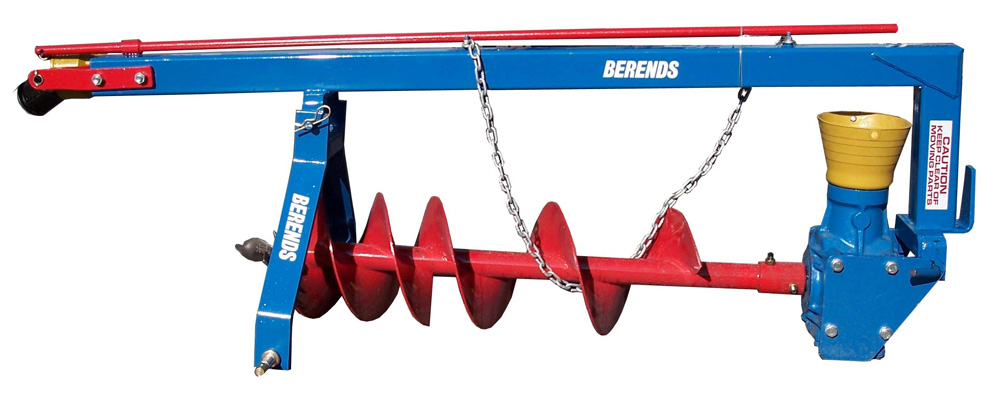

  • Auger control handle (Heavy Duty model)

Models

0258 – Compact Post Hole Digger less Auger
0259 – Standard Post Hole Digger less Auger
0261 – Heavy Duty Post Hole Digger less Auger
0265 – 6” Auger (1.2m Long)
0267 – 8” Auger (1.2m Long)
0269 – 10” Auger (1.2m Long)
0271 – 12” Auger (1.2m Long)
0273 – 15” Auger (1.2m Long)
0275 – 18” Auger (1.2m Long)
0277 – 24” Auger (1.2m Long)

Specifications

Compact Post Hole Digger
PTO Shaft – Series 3/L2 Torque Limiting Clutch
Gearbox – 40hp
Main frame – 100 x 50 x 6mm
Tractor power required (approximate) – 16-30hp
Net weight less auger – 85kg

Standard Post Hole Digger
PTO Shaft – Series 3/L2 Torque Limiting Clutch
Gearbox – 40hp
Main frame – 89 x 89 x 5mm RHS
Tractor power required (approximate) – 20-50hp
Net weight less auger – 95kg

Heavy Duty Post Hole Digger
PTO Shaft – Series 3/L2 Torque Limiting Clutch
Gearbox – 85hp
Main frame – 89 x 89 x 5mm RHS
Tractor power required (approximate) – 30-100hp
Net weight less auger – 130kg

Warranty

12 months against faulty materials or workmanship


Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
