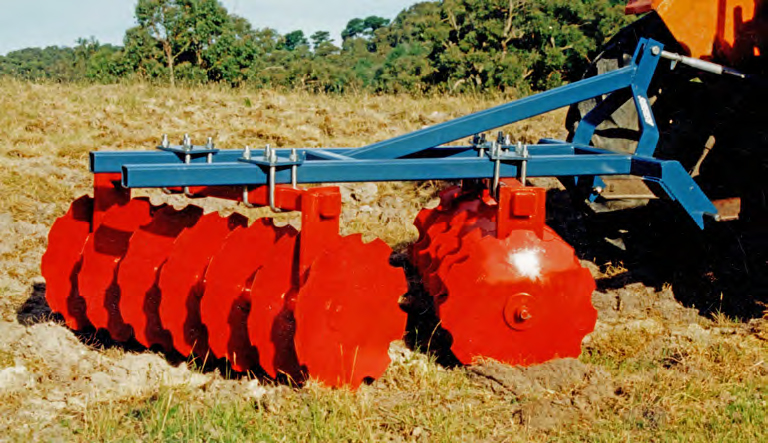

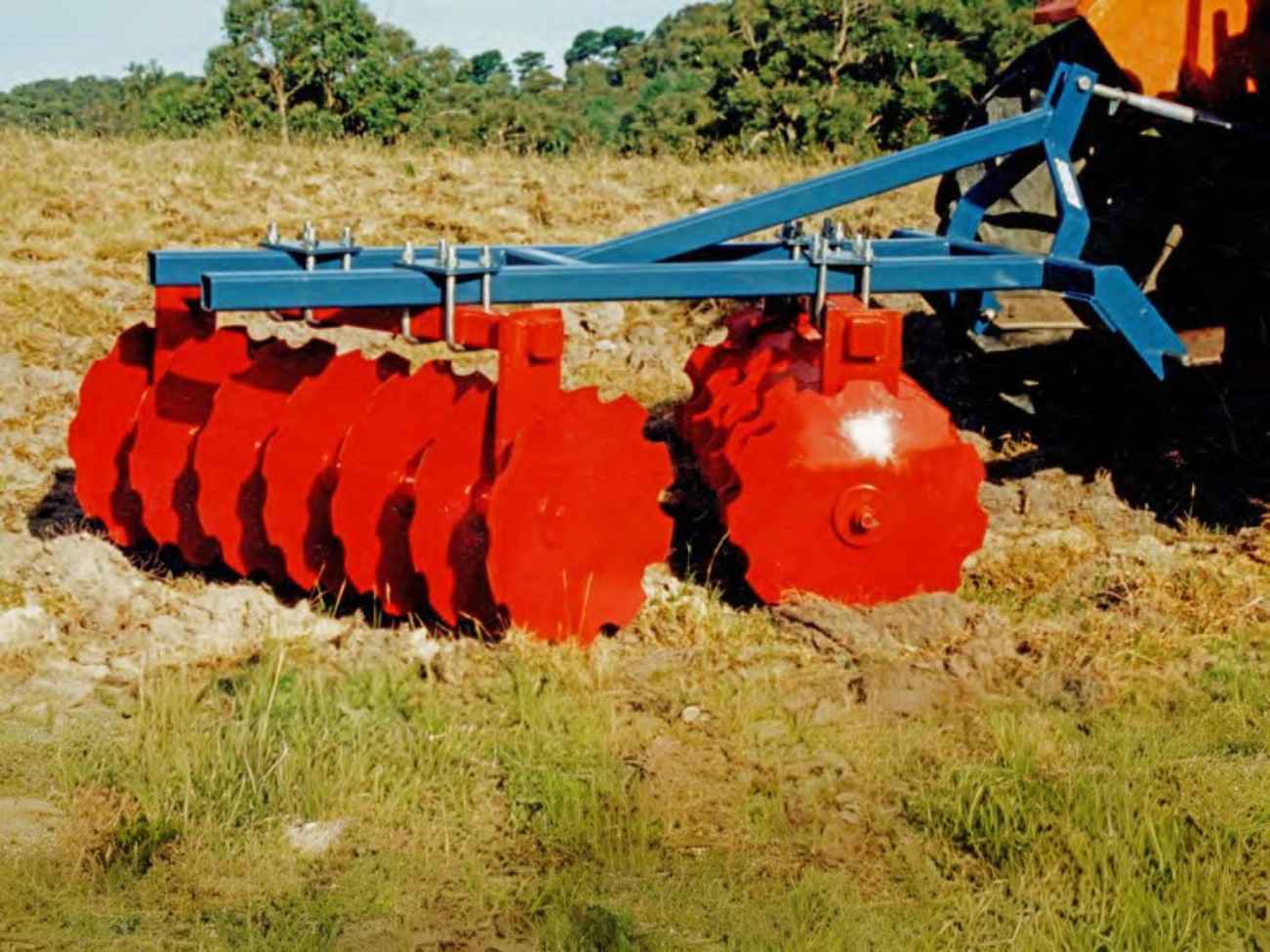

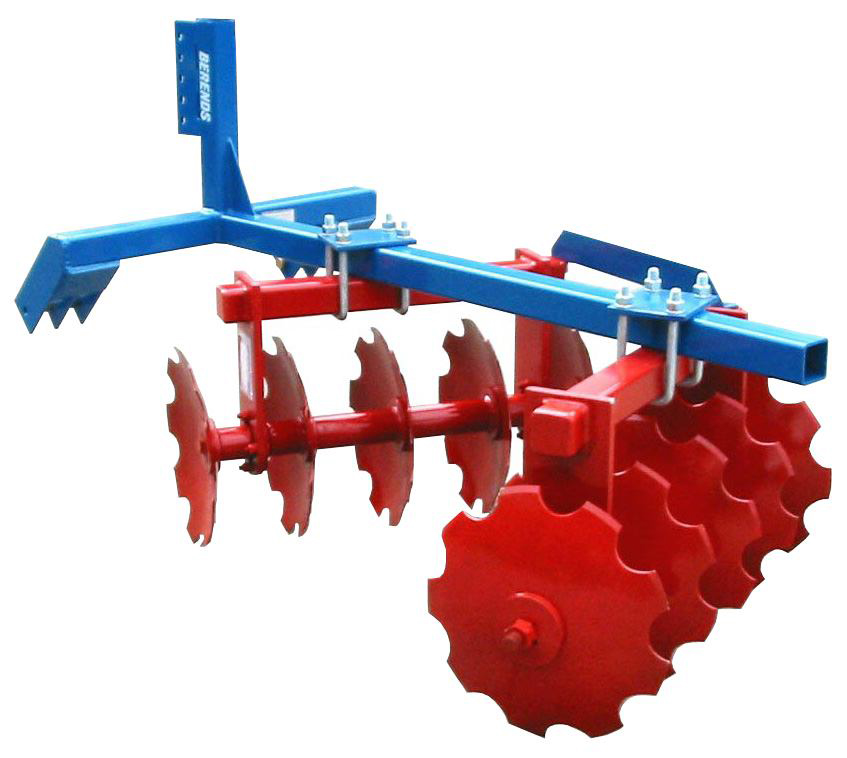

Medium Duty Linkage Offset Discs
Robust Linkage Designed For Years of Hard Work
Available in 10, 12, 14, 16 and 18 Plate Models
From
$2,211
Inc. GST
Pickup Or Delivery
Stock: Item Available

Description

A robust, medium duty linkage offset disc plough designed for years of hard work with minimum maintenance. Linkage Offset Disc Ploughs are a popular cultivation tool, used to break up soil for preparing crops or controlling weeds. The discs can cut up and mix in trash, and are very hard wearing, long lasting and easy to use.

The Medium Duty range is designed for small to medium size tractors, with minimum power ranging from 20hp (for the 10 plate model) up to 45hp (for the 18 plate model). Cutting widths range from 1.1m (3’9″) to 2.05m (6’9″).

John Berends Disc Ploughs are made in Australia, and fitted with long wear European Bollota Boron steel discs. Bellota Boron steel discs are manufactured under strict quality specifications that ensure correct hardness and uniformity throughout the disc. This includes clamp hardening to prevent distortion, lathe turning of the edges and hardening to 50HRc for low wear and long life.

Application

General purpose cultivation

Features

  • 28mm (1 1/8”) square high tensile gang bolt axles
  • High quality triple sealed bearings

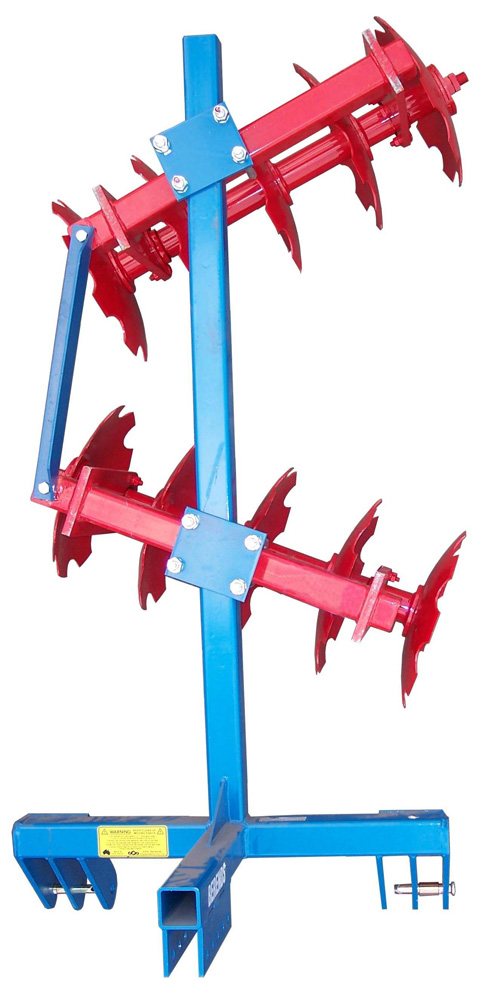

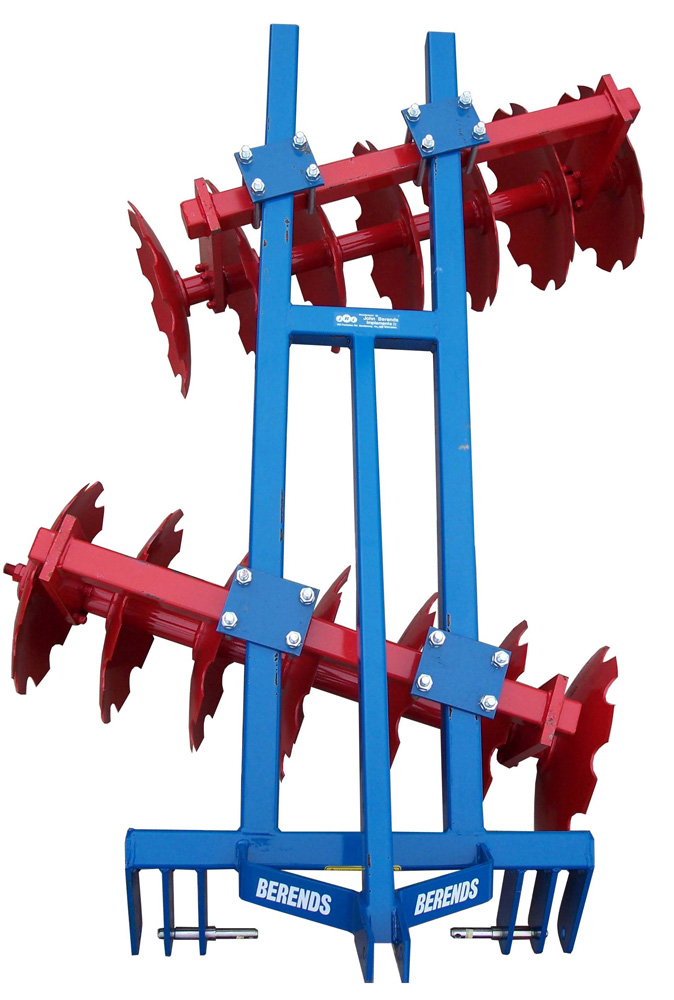

  • 14-18 plate models fitted with 75 x 75 x 6mm double beam
  • 10-12 plate models fitted with main single beam and angle support bracket
  • Cat 1/2 linkage
  • Clamped on by U-bolts for simple adjustment
  • Made in Australia using quality long wear European Bollota Boron steel discs

Models

0247 – 10 Plate
0248 – 12 Plate
0249 – 14 Plate
0250 – 16 Plate
0252 – 18 Plate

Specifications

0247 – 10 Plate
Number of Discs – 10
Disc Diameter – 450mm (18″)
Disc Thickness – 4mm
Tractor Power Required (Approximate) – 20hp
Number of Bearings – 4
Cutting Width – 1125mm (3’9″)
Weight – 315kg

0248 – 12 Plate
Number of Discs – 12
Disc Diameter – 500mm (20″)
Disc Thickness – 4mm
Tractor Power Required (Approximate) – 25hp
Number of Bearings – 4
Cutting Width – 1350mm (4’6″)
Weight – 335kg

0249 – 14 Plate
Number of Discs – 14
Disc Diameter – 550mm (22″)
Disc Thickness – 5mm
Tractor Power Required (Approximate) – 35hp
Number of Bearings – 4
Cutting Width – 1600mm (5’3″)
Weight – 385kg

0250 – 16 Plate
Number of Discs – 16
Disc Diameter – 550mm (22″)
Disc Thickness – 5mm
Tractor Power Required (Approximate) – 40hp
Number of Bearings – 4
Cutting Width – 1825mm (6′)
Weight – 415kg

0252 – 18 Plate
Number of Discs – 18
Disc Diameter – 550mm (22″)
Disc Thickness – 5mm
Tractor Power Required (Approximate) – 45hp
Number of Bearings – 6
Cutting Width – 2050mm (6’9″)
Weight – 465kg

Warranty

12 months on design and manufacture


Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
