Description

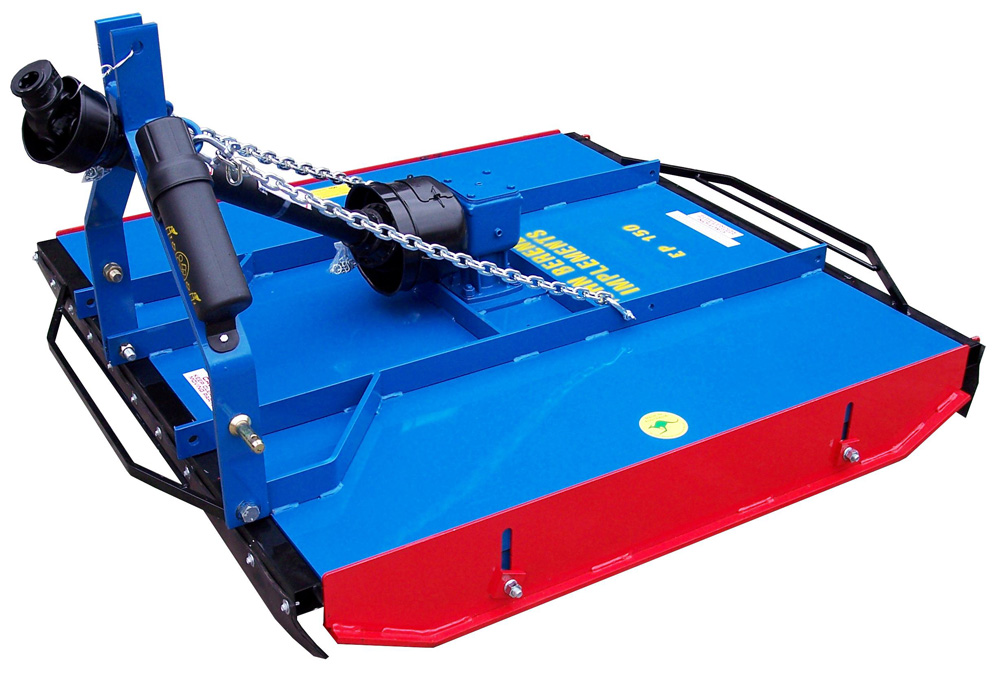

A robust medium duty slasher to suit small to medium size tractors. Australian made using high quality European components. Excellent value for money.

The body is designed to take real punishment – a 3mm top plate and strong 6mm thick side panels (adjustable skid models only) prevent denting. The Bondioli & Pavesi Series 4 PTO driveshaft (with 2 plate slip clutch) protects slasher and tractor. An optional over-run clutch is also available, to suit tractors with a single stage clutch. Pneumatic wheelkits and rollers are also available for depth control.

Application

General purpose slashing

Features

Key Features

• Body manufactured with 3mm top plate and 6mm side panels
• Bondioli & Pavesi Series 4 PTO with 2 plate slip clutch
• 40 HP oil lubricated gearbox
• Hardened and tempered stepped/bushed slasher blades
• Available in 4 widths with dual mounting (centre or offset)
• Floating headstock for working on undulating ground
• Cat 1/2 linkage
• Fitted with front rubber guard and rear hinging steel flap as standard
• Document holder supplied

Range Of Upgrades

• Italian-manufactured gearbox upgrade
• Pneumatic wheelkits and rollers available for depth control
• Chain guards
• Galvanising

Models

0051 – EP100 (3’4”) Slasher
0056 – EP120 (3’10”) Slasher, Dual Mount
0061 – EP135 (4’6”) Slasher, Dial Mount
0062 – EP150 (5’) Slasher, Dual Mount
0065 – EP Slasher Wheel Kit (Pneumatic Wheel)

Specifications

EP100
Cutting Width – 1030mm
Overall Width – 1120mm
Overall Length – 1120mm
Tractor Power Required (Approximate) – 18-30hp
Cutting Height – 25-100mm
Weight – 185kg

EP120
Cutting Width – 1170mm
Overall Width – 1270mm
Overall Length – 1270mm
Tractor Power Required (Approximate) – 20-35hp
Cutting Height – 25-100mm
Weight – 200kg

EP135 Cutting Width – 1360mm
Overall Width – 1460mm
Overall Length – 1470mm
Tractor Power Required (Approximate) – 25-45hp
Cutting Height – 25-100mm
Weight – 230kg

EP150
Cutting Width – 1460mm
Overall Width – 1560mm
Overall Length – 1580mm
Tractor Power Required (Approximate) – 25-50hp
Cutting Height – 25-100mm
Weight – 250kg

Warranty

12 months on design and manufacture

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
