John Berends Implements
Linkage Twin Rotor Range
Wide Area Slashing With Contra Rotating Rotors
3 Models | 2300mm (8') - 2500mm (12') | 50hp+
From
$11,220
Inc. GST
Pickup Or Delivery
Stock: Item Available

Description

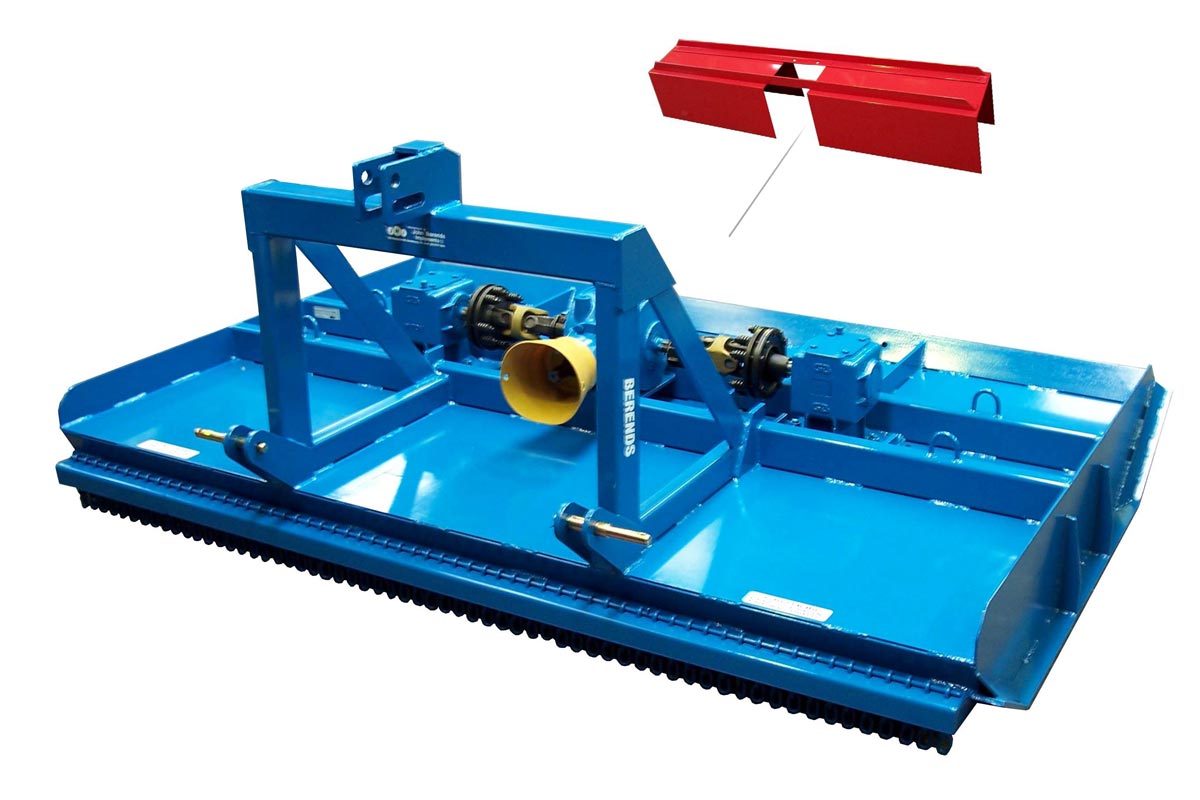

Heavy duty slashers designed for tough conditions – available in trailing or three point linkage models.

Features

Key Features

  • Available in 8′, 10′ and 12′ in three point linkage models, or 10′ and 12′ in the trailing models.
  • Trailing models fitted with 14″ Light Truck tyres and three point linkage models fitted with solid rubber tyres. Puncture proofing is available.
  • Twin rotors fitted to two 75hp end gearboxes connected by an extra heavy 110hp centre gearbox. Two plate slip clutch between each gearbox provides gearbox protection.
  • Contra rotating rotors form a flat windrow behind the centre of the slasher, however, two small windrows can be created by reversing the direction of the rotors.
  • Front and rear chains can be fitted on request.

Models

0101 – 8′ Three Point Linkage Twin Rotor Slasher
0104 – 10′ Three Point Linkage Twin Rotor Slasher
0114 – 12′ Three Point Linkage Twin Rotor Slasher

Specifications

8′ Three Point Linkage Twin Rotor Slasher
Cutting Width – 2.3m
Weight – 620kg
Width (Overall) – 2.52m
Body Construction – 5mm top, 6mm sides
Tractor HP range – 50hp+
PTO – Series 7 Shaft
Gearbox/PTO Speed – 540rpm
Centre Gearbox – 110hp
End Geraboxes – 75hp
Gearboxes Protection – 2 plate slip clutch

10′ Three Point Linkage Twin Rotor Slasher
Cutting Width – 2.9m
Weight – 875kg
Width (Overall) – 3.12m
Body Construction – 5mm top, 6mm sides
Tractor HP range – 60hp+
PTO – Series 7 Shaft
Gearbox/PTO Speed – 540rpm
Centre Gearbox – 110hp
End Geraboxes – 75hp
Gearboxes Protection – 2 plate slip clutch

12′ Three Point Linkage Twin Rotor Slasher
Cutting Width – 3.5m
Weight – 975kg
Width (Overall) – 3.72m
Body Construction – 5mm top, 6mm sides
Tractor HP range – 70hp+
PTO – Series 7 Shaft
Gearbox/PTO Speed – 540rpm
Centre Gearbox – 110hp
End Geraboxes – 75hp
Gearboxes Protection – 2 plate slip clutch

Warranty

12 months on design and manufacture


Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
