Description

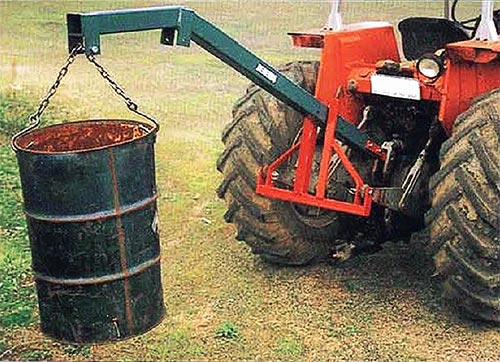

Sturdy lifting jibs. Easily convert your tractor into an ideal machine for a multitude of lifting jobs.

Features

Key Features

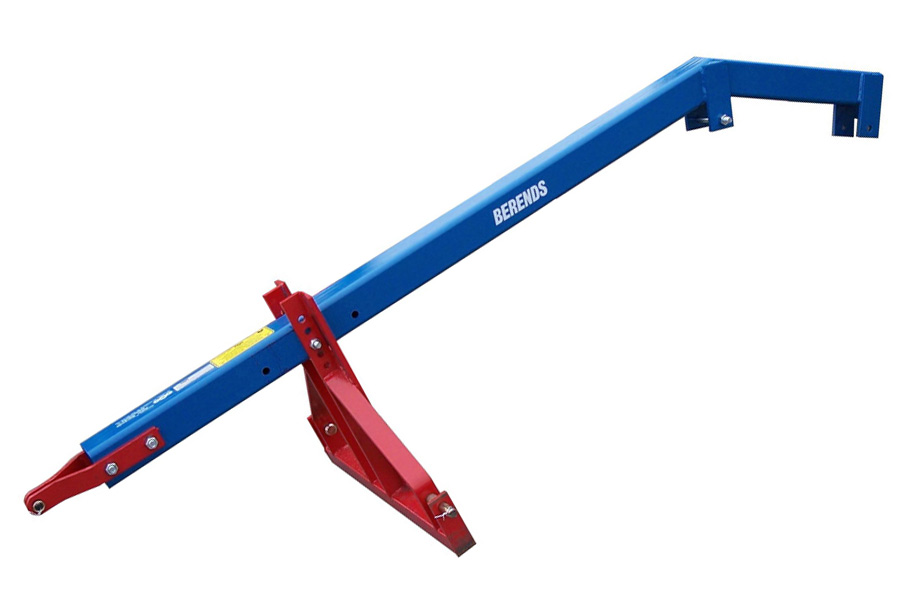

• The standard jib is made from 100 x 50 x 3mm RHS. This jib can lift to approximately 10 foot (depending on the tractor) and is fitted with a top brace which it relies heavily on.
• The heavy duty jib is made from 100 x 100 x 6mm RHS and is much more durable than the standard jib. The heavy duty lifting jib has a heavy adjustable A-frame to suit different tractors and alter the lift of the arc, the lift height being around 12 foot depending on the tractor.

Models

0140 – Lifting Jib Standard
0142 – Lifting Jib Heavy Duty

Specifications

Standard
Boom Dimensions – 100mm x 50mm x 3mm RHS
No. Lift Up Points – 2
Tractor Cat Connection – Cat 1/2
Lift Capacity – 500-750kg
Nett Weight – 40kg
Lift Height (Approximate) – 3m (10′)

Heavy Duty
Boom Dimensions – 100mm x 100mm x 6mm RHS
No. Lift Up Points – 2
Tractor Cat Connection – Cat 1/2
Lift Capacity – 1000kg
Nett Weight – 75kg
Lift Height (Approximate) – 3.6m (12′)

Warranty

12 months on design and manufacture
