John Berends Implements

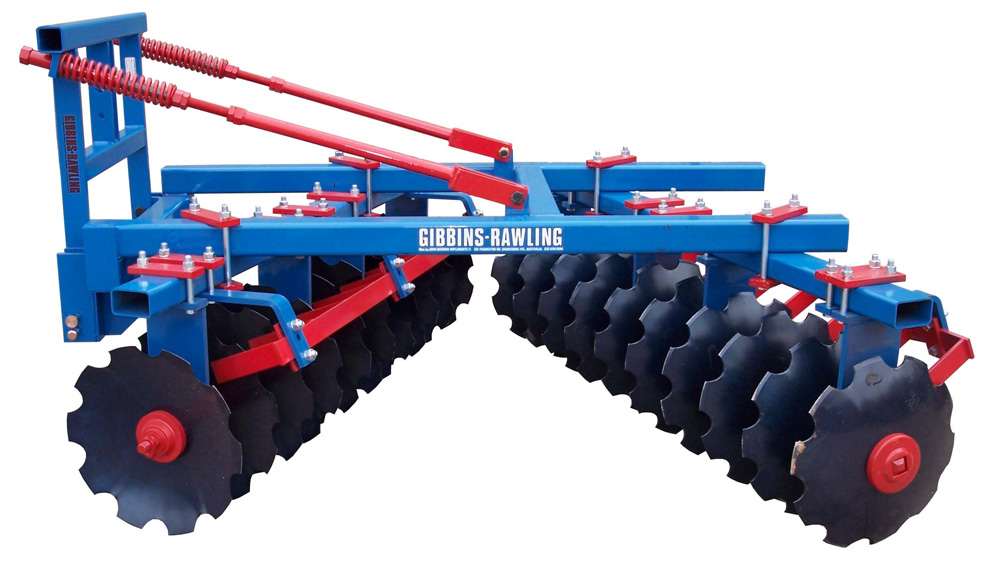

GM40 Heavy Duty Linkage Offset Discs
Gibbins Rawling - Performance In Tough Ground
Available in 18, 20, 22 and 24 Plate Models
From
$9,020
Inc. GST
Pickup Or Delivery
Stock: Enquire Online

Description

Designed for extremely tough conditions, the John Berends GM40 Heavy Duty Linkage Offset Disc Plough is one of the strongest linkage disc ploughs available. Cutting widths range from 2.06m (6’9″) to 2.74m (9′).

The GM40’s heavy weighted gangs provide excellent digging ability, while its twin spring loaded pressure screws prevent damage in rocky or undulating conditions. Solid cast spools, individually machined, provide all the weight in the gangs rather than in the frame (which can add load to the bearings).

The GM40 uses 550mm (22″) diameter x 4mm thick discs at 9″ spacing. Optional 610mm (24″) diameter x 5mm thick discs are also available. Prong scrapers are also an option, and are available for all models.

John Berends Disc Ploughs are made in Australia, and fitted with long wear European Bollota Boron steel discs. Bellota Boron steel discs are manufactured under strict quality specifications that ensure correct hardness and uniformity throughout the disc. This includes clamp hardening to prevent distortion, lathe turning of the edges and hardening to 50HRc for low wear and long life.

A note on Gibbins Rawling – In 1986, John Berends Implements brought Gibbins-Rawling. By taking on the Gibbins Rawling range, John Berends could offer a quality range of discs that had a long and respectable history with Australian farmers. The Gibbins Rawlings name and colours were kept until 1998, after which all machines were painted in Berends colours.

Application

Heavy duty cultivation

Features

  • Easy gang angle adjustment
  • Twin spring loaded pressure screws protect unit on rough ground
  • Cat 1 and 2 linkage
  • 28mm square high tensile axles
  • Solid cast spools, to keep weight in gangs (rather than frame)
  • Optional prong scrapers
  • Optional 24″ discs
  • Made in Australia using quality long wear European Bollota Boron steel discs

Models

0810 – 18 Plate
0811 – 20 Plate
0812 – 22 Plate
0813 – 24 Plate

Specifications

0810 – 18 Plate
Number of Discs – 18
Disc Diameter – 550mm (22″)
Disc Thickness – 5mm
Number of Bearings – 6
Number of Axels – 2
Cutting Width – 2060mm (6’9″)
Approximate Weight – 820kg

0811 – 20 Plate
Number of Discs – 20
Disc Diameter – 550mm (22″)
Disc Thickness – 5mm
Number of Bearings – 8
Number of Axels – 4
Cutting Width – 2300mm (7’6″)
Approximate Weight – 860kg

0811 – 22 Plate
Number of Discs – 22
Disc Diameter – 550mm (22″)
Disc Thickness – 5mm
Number of Bearings – 8
Number of Axels – 4
Cutting Width – 2500mm (8’3″)
Approximate Weight – 910kg

0811 – 24 Plate
Number of Discs – 24
Disc Diameter – 550mm (22″)
Disc Thickness – 5mm
Number of Bearings – 8
Number of Axels – 4
Cutting Width – 2740mm (9′)
Approximate Weight – 940kg

Warranty

12 months on design and manufacture


Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
