Deep Rippers
Parabolic Tines - 650mm Depth With Easy Penetration
2 And 3 Tine Models - More Available On Request
Inc. GST
Pickup Or Delivery
Stock: Enquire Online

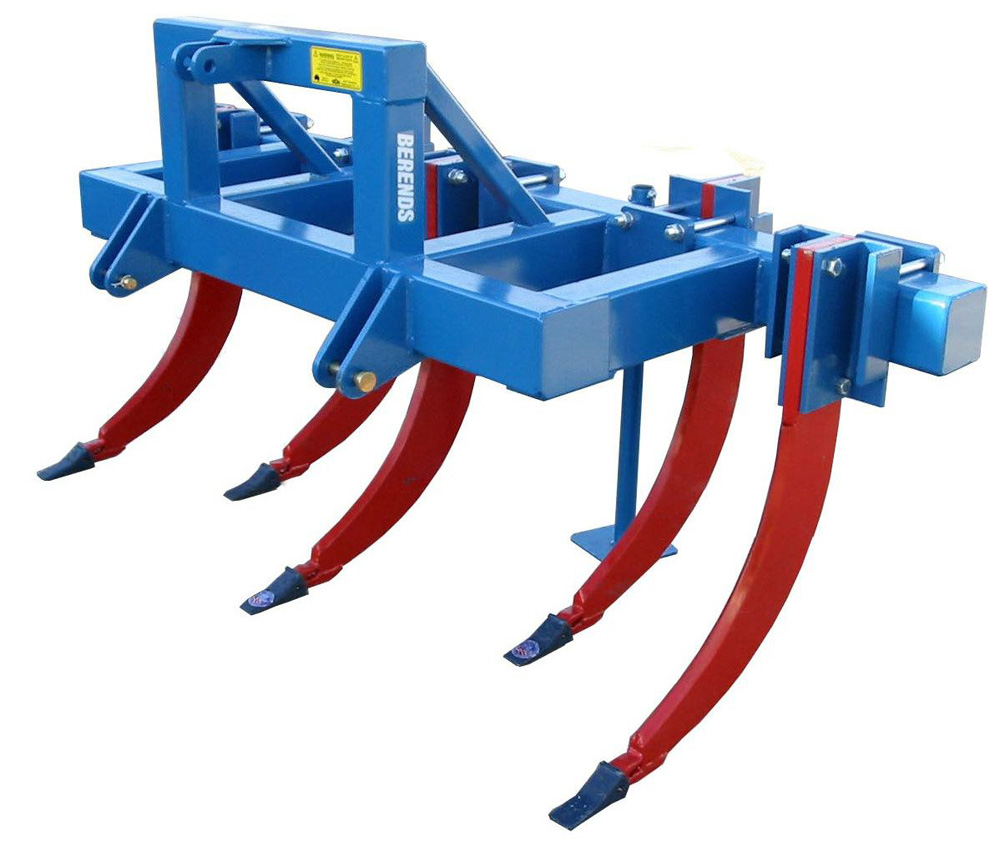

This parabolic tine ripper can work down to about 650mm depth with relatively easy penetration for its size. Parabolic curved tines provide easier entry into the ground.


Key Features

  • The deep ripper has the option of two or three tines made of 32mm semi high tensile steel.
  • Machines with more than three tines are available upon request.
  • The tines are adjustable and are fitted with shearbolt protection.
  • The tines are fitted with hardened teeth, similar to those fitted to the buckets of industrial loaders.


0018 – 2 Tine Deep Ripper
0019 – 3 Tine Deep Ripper
Deep rippers with more than 3 tines are available upon request.


Main Tine Section – 150 x 32mm
Overall height – 0.95m
Maximum working depth – 650mm
Tractor hp – 70hp+
Tractor Cat Connection – Cat 2
Nett Weight – 320kg (2 Tine) / 395kg (3 Tine)


12 months on design and manufacture
