RRP $10,999 Our Price $10,199 – Save $800!

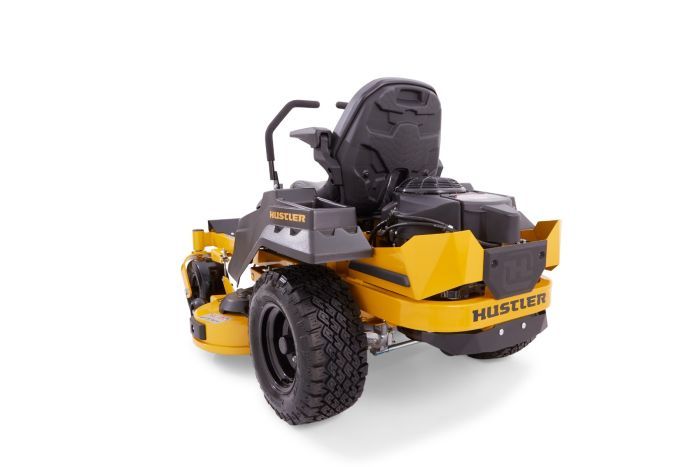

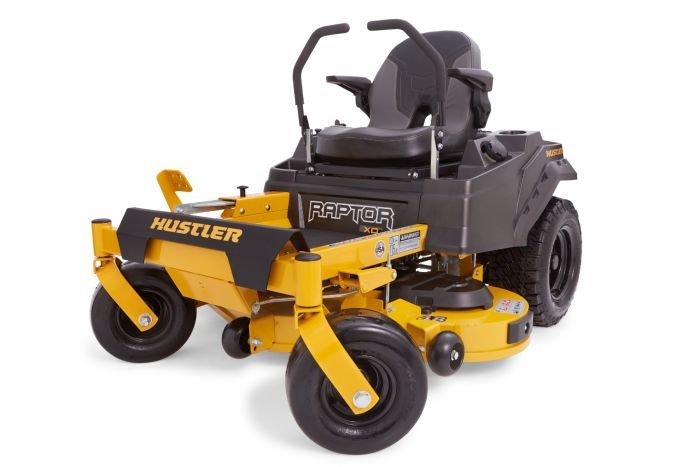

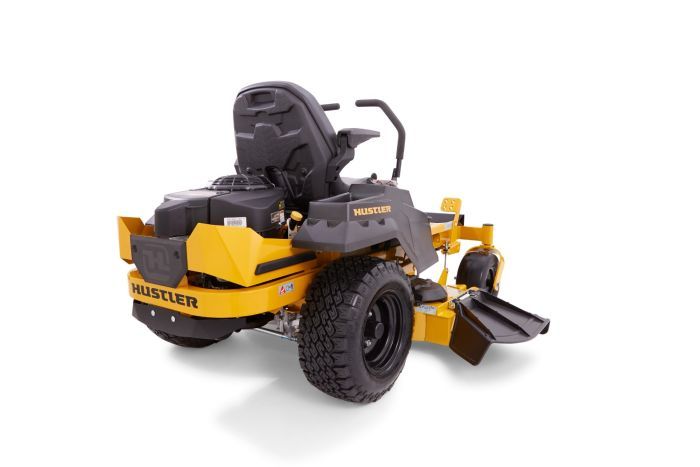

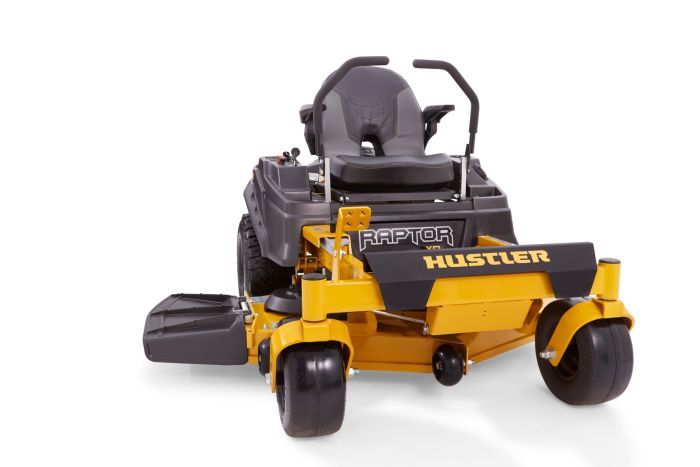

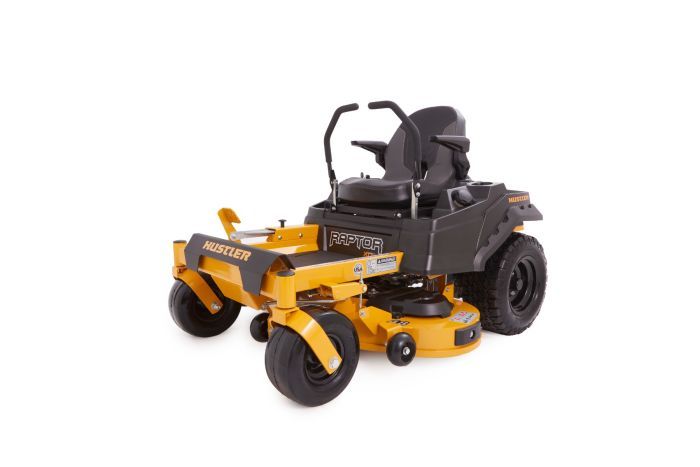

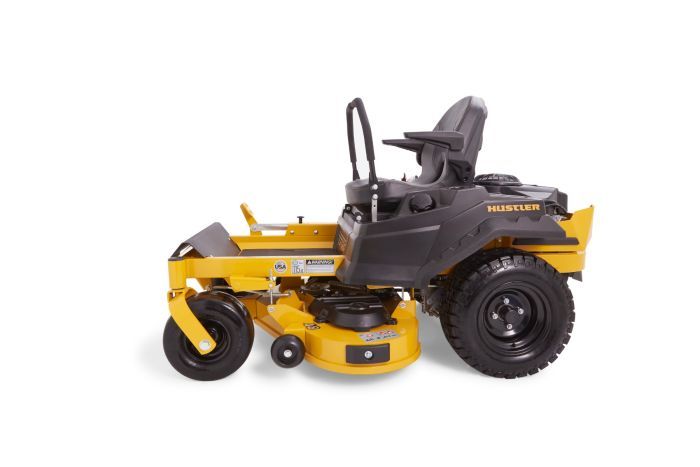

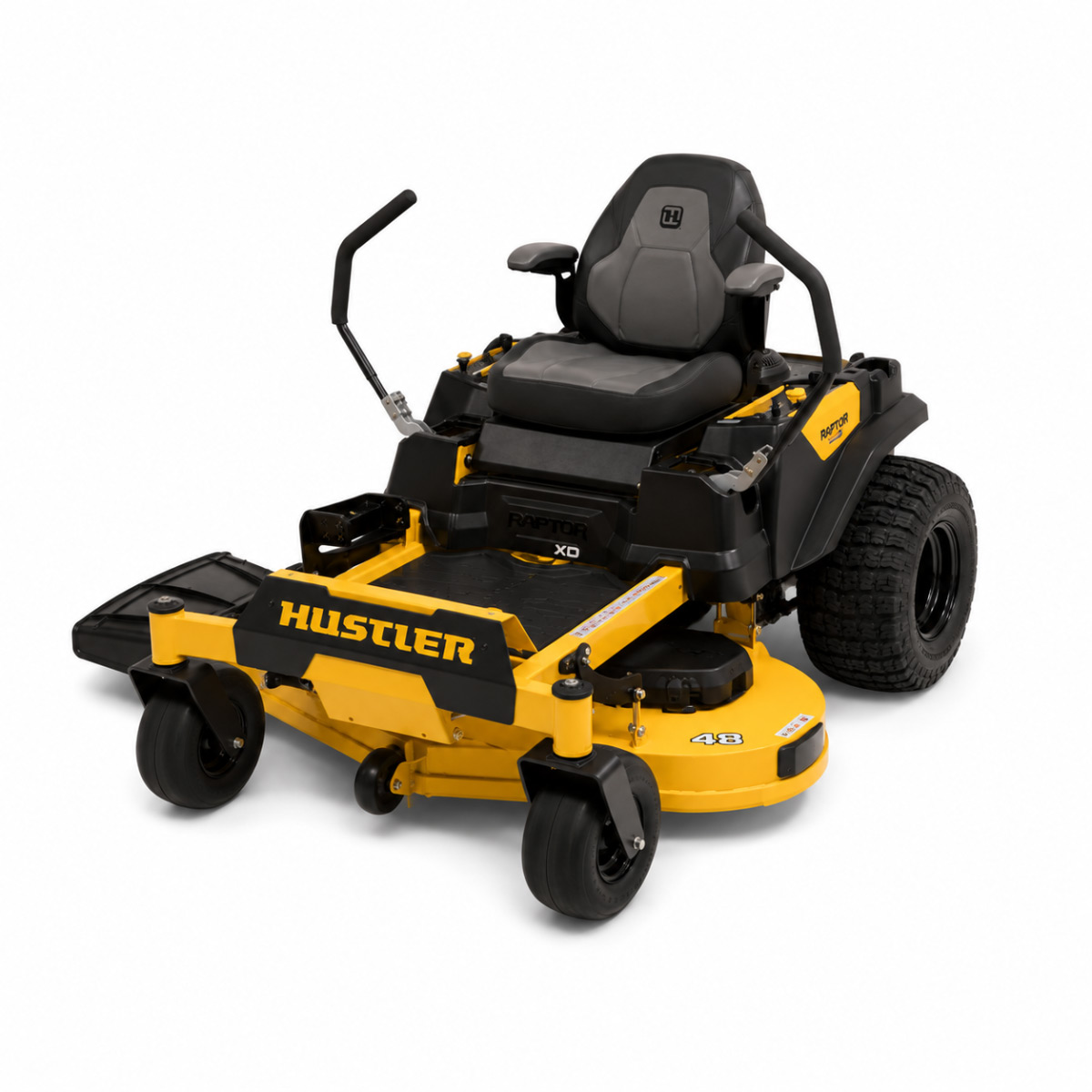

The Raptor XD 48” steps into premium residential territory, built for owners running larger blocks. Kawasaki V-twin power and a fabricated steel deck deliver a professional-grade finish at up to 7.5 mph, while Flex Fork front suspension keeps the machine settled over uneven ground. Homeowner comfort, with durability that stands up to harder use.

• 48″ Cutting Width
• 2.91 Acres per Hour
• 23HP Kawasaki Engine
• 3 Year, 300 Hour Warranty for both residential and commercial use

Description

The next generation of Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, it features a 1″x3″ steel frame, 10 ga. fabricated steel deck, and large 20″ VersaTrac* drive tires. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Premium power — Kawasaki V-twin driving a durable fabricated steel deck for professional-grade cut quality.

Composed at speed — Flex Fork front suspension holds the cut even when the ground isn’t.

Backed both ways — 3-year residential warranty plus a 3-year / 300-hour commercial warranty.

* Images are for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Here To Work

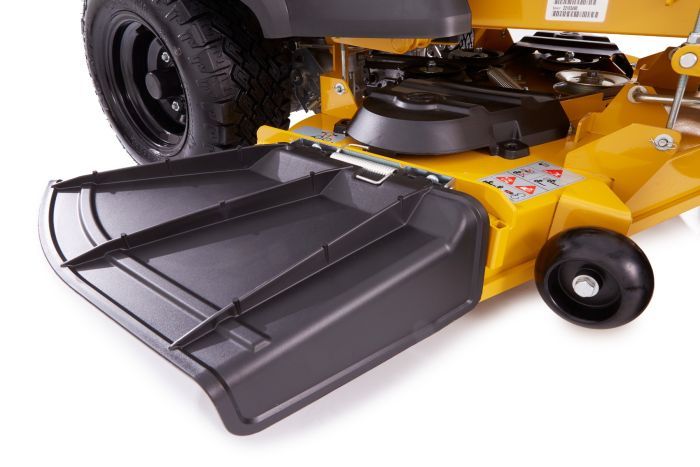

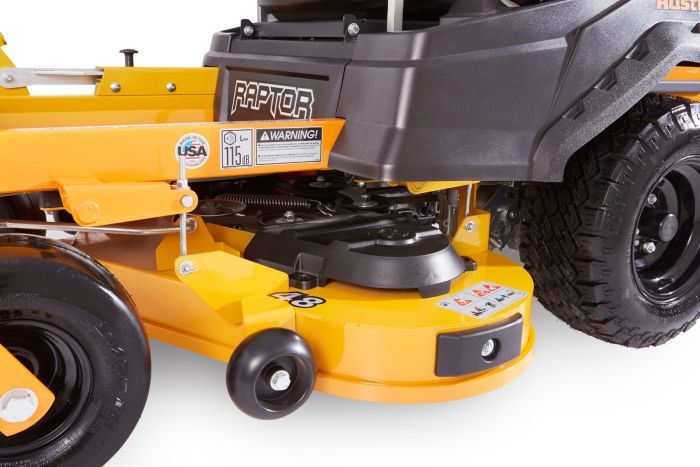

Fabricated Cutting Deck: All Hustler mowers feature a welded steel fabricated cutting deck. No thin stamped decks here. With deck rollers to greatly reduce the chance of heavy impacts over bumpy terrain, Hustler cutting decks are built to last a lifetime.

SmoothTrak Steering: Glide around obstacles with ease and keep on the straight and narrow. Standard on all Hustler mowers, SmoothTrak Steering reduces jerkiness and makes precises steering inputs easier than ever. Mow like a pro with Hustler!

Accessories

• Mulch Kit SKU 130103 – Set of mulching blades are included. Suits Raptor X / XD with 48” deck.
• Double Bag Grass Catcher SKU 944629 – Rear mounted two bag grass catcher. Suits Raptor X / XL / XD with 42/48/54/60” deck.

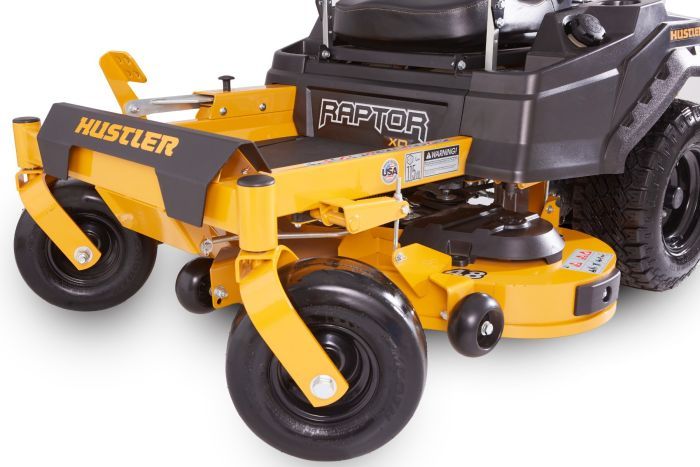

• Flex Forks Kit SKU 605123 – Flex Forks provide additional impact dampening over the front wheels, resulting in a more comfortable and relaxed ride over bumpy terrain. Suits Raptor XD / FasTrak / FasTrak SDX with 48/54/60″ decks.
• Striping Kit SKU 126828P – Provide a professionally manicured striped finish to your lawn. Suits Raptor X / XD / FasTrak / FasTrak SDX models with 48/54/60″ decks.
• Tow Hitch Kit SKU 130206 – Increase the productivity and flexibility of your Hustler with this handy Tow Hitch. Simple drop pin hitch design suits most garden trailers, poly carts etc. Suits Raptor XL / XD (944504EX, 944538EX, 944546EX, 944553EX).

Specifications

Deck Width & Construction – 48 Inch 10 Gauge Fabricated Cutting Deck

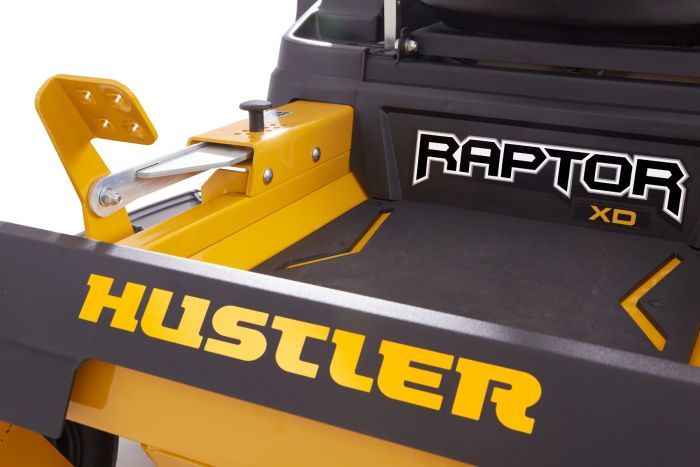

Deck Lift – Foot Operated
Blades & PTO – 3 Blades with electric PTO blade engagement
Spindles – Aluminum with 7 gauge spindle mounts, 1” shaft and double lip sealed ball bearings
Cutting Height & Adjustment – 1.5″ – 4.5″ cutting range with foot assisted deck height adjustment
Optional Extras – Optional Mulch Kit, Optional Catcher Kit

Ground Speed – 12 Km/h Ground Speed
Acres per hour – 2.91 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity – 13.25 L
Slope Capability – 15 Degrees

Engine Type & Specifications – 23HP Kawasaki FR691V Engine. Air cooled. 726cc.
Transmission Type & Specifications – Tuff Torq TZ-350

Country of Manufacture – Made in the USA
Chassis Construction – 1.5″ x 3″ Welded Tubular Steel Frame

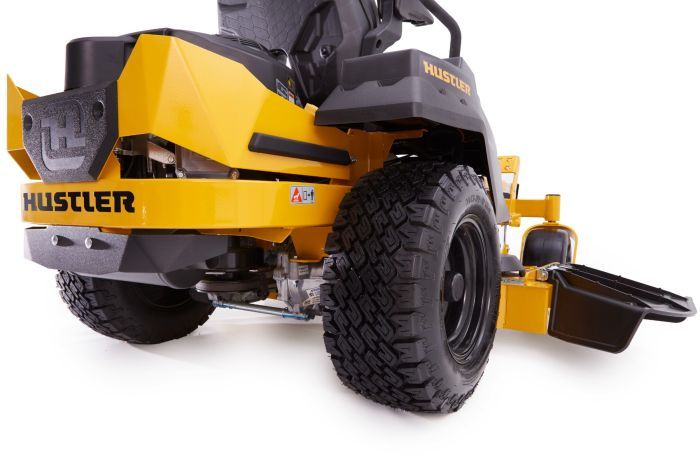

Rear Wheels & Tyres – 20″ x 8″ – 8″ Rear Tyres
Front Wheels, Tyres & Castors – 13″ x 6.5″ Front Tyres

Seat Type – Custom Bolstered 20″ High Back Seat with Armrests

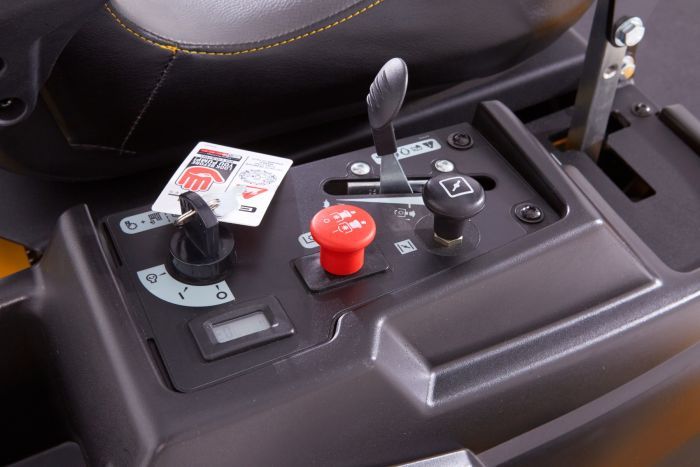

Console Features – Cup Holder
Park Brake – Automatic Park Brake

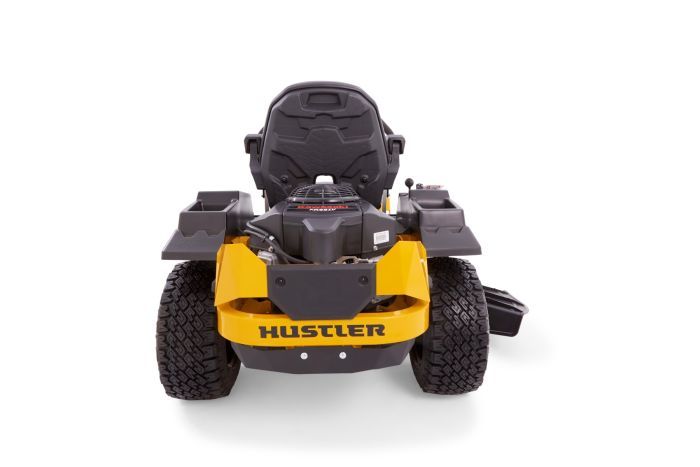

Maintenance Access – Open rear design for easy engine maintenance
Tow Hitch – Optional Tow Hitch

Minimum Trailer Size – 5 ft wide, 6 ft Long
Length – 1798 mm
Width (Chute up) – 1344 mm (Chute up)
Height – 1148 mm
Weight – 291 kg

Disclaimer – Specifications subject to change without notice and without incurring obligation. Images for illustration purposes only, and may depict different models from the range and/or foreign market models with different specifications.

Warranty

Residential Warranty – 3 Year / 300 Hr Domestic warranty
Commercial Warranty – 3 Year / 300 Hr Commercial warranty
Engine Warranty – 3 Year Engine Warranty
