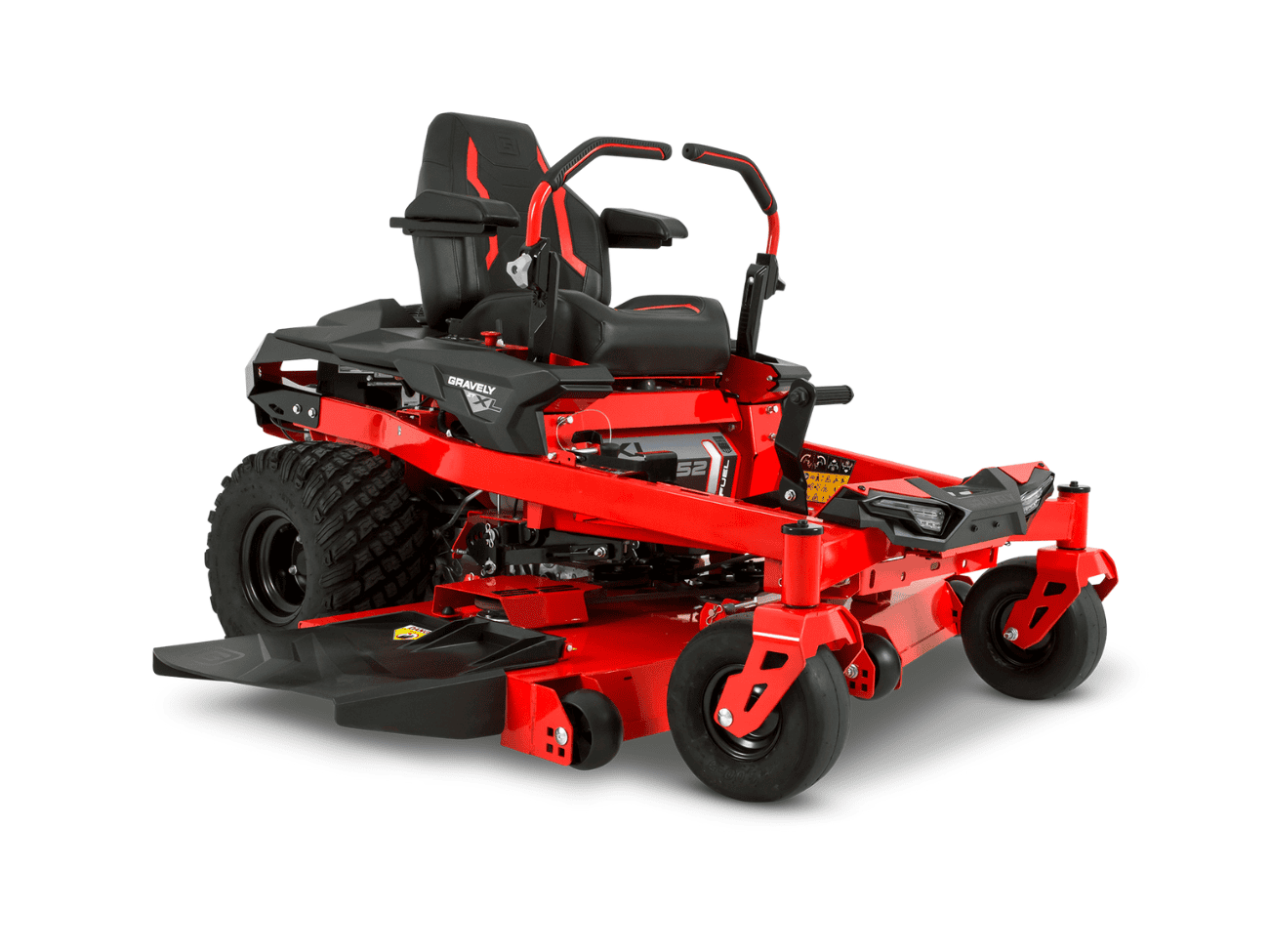

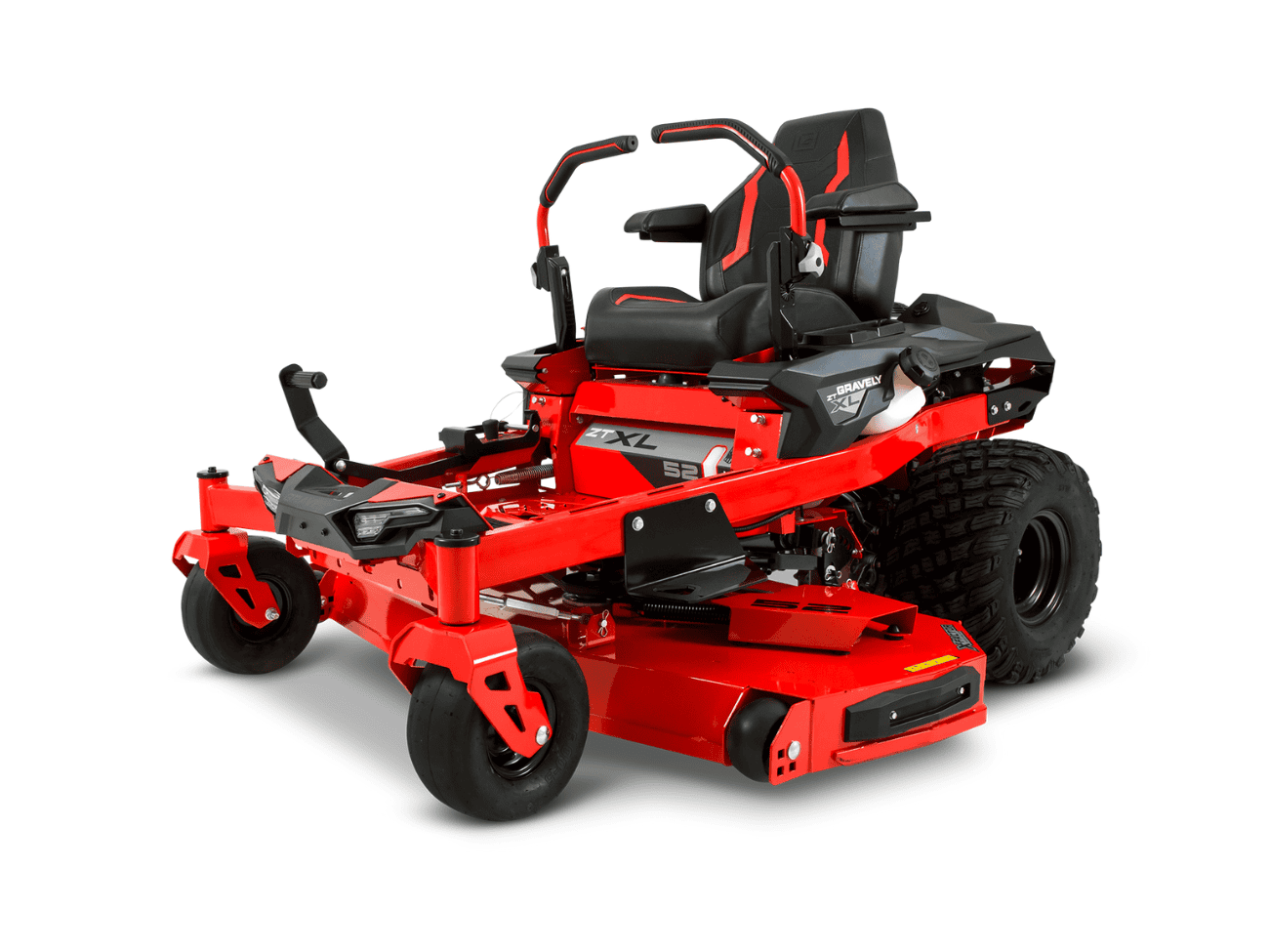

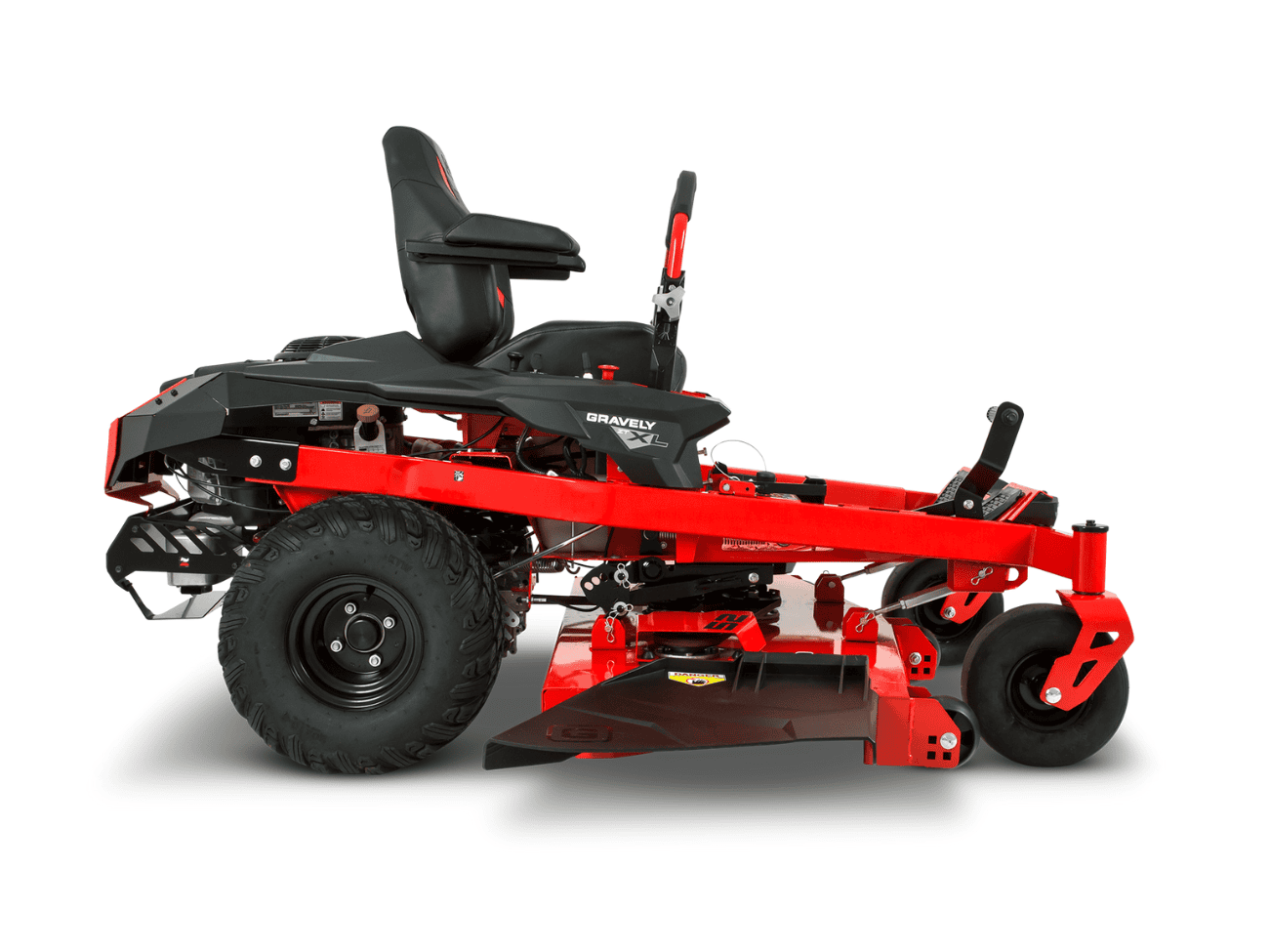

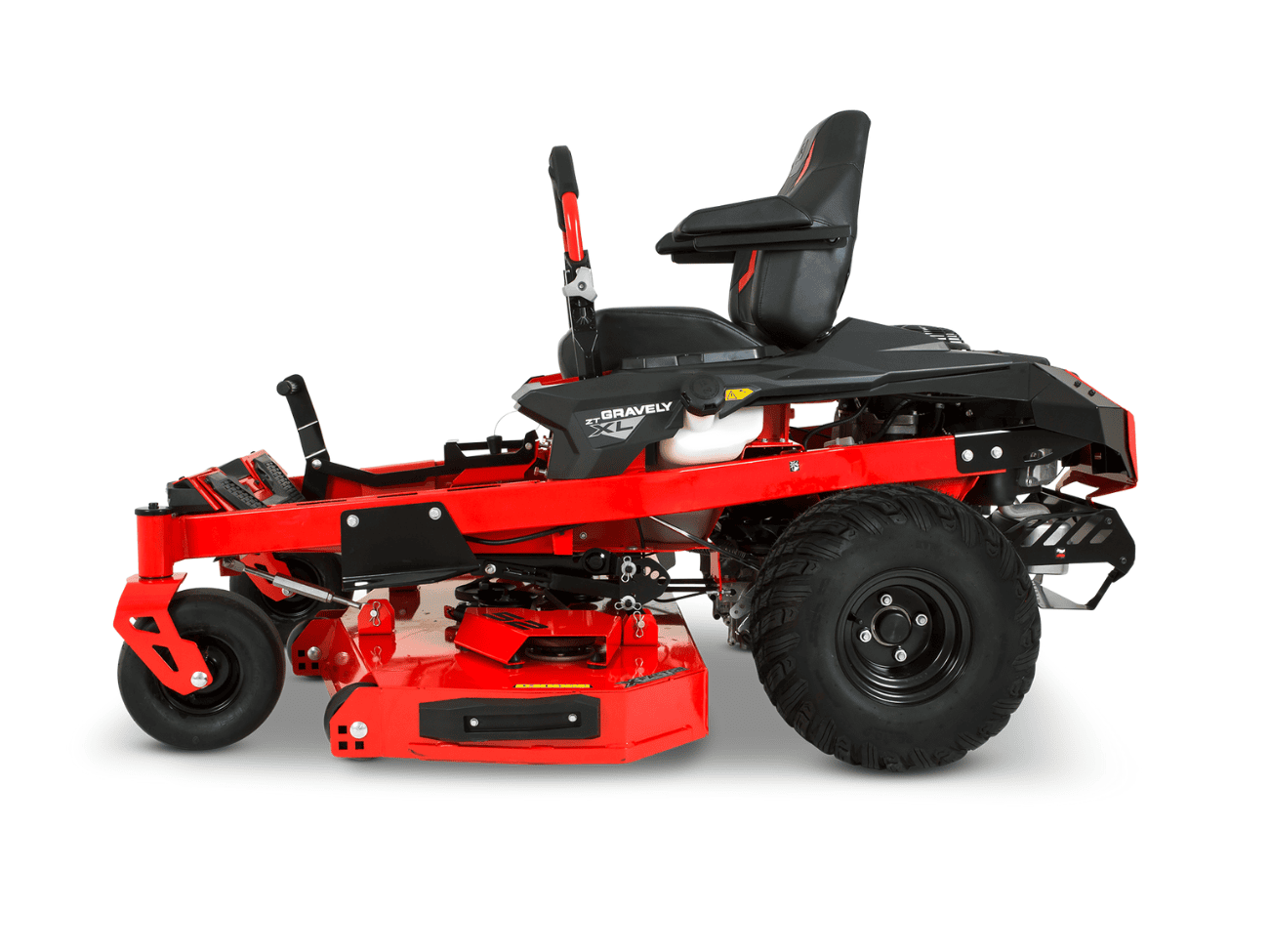

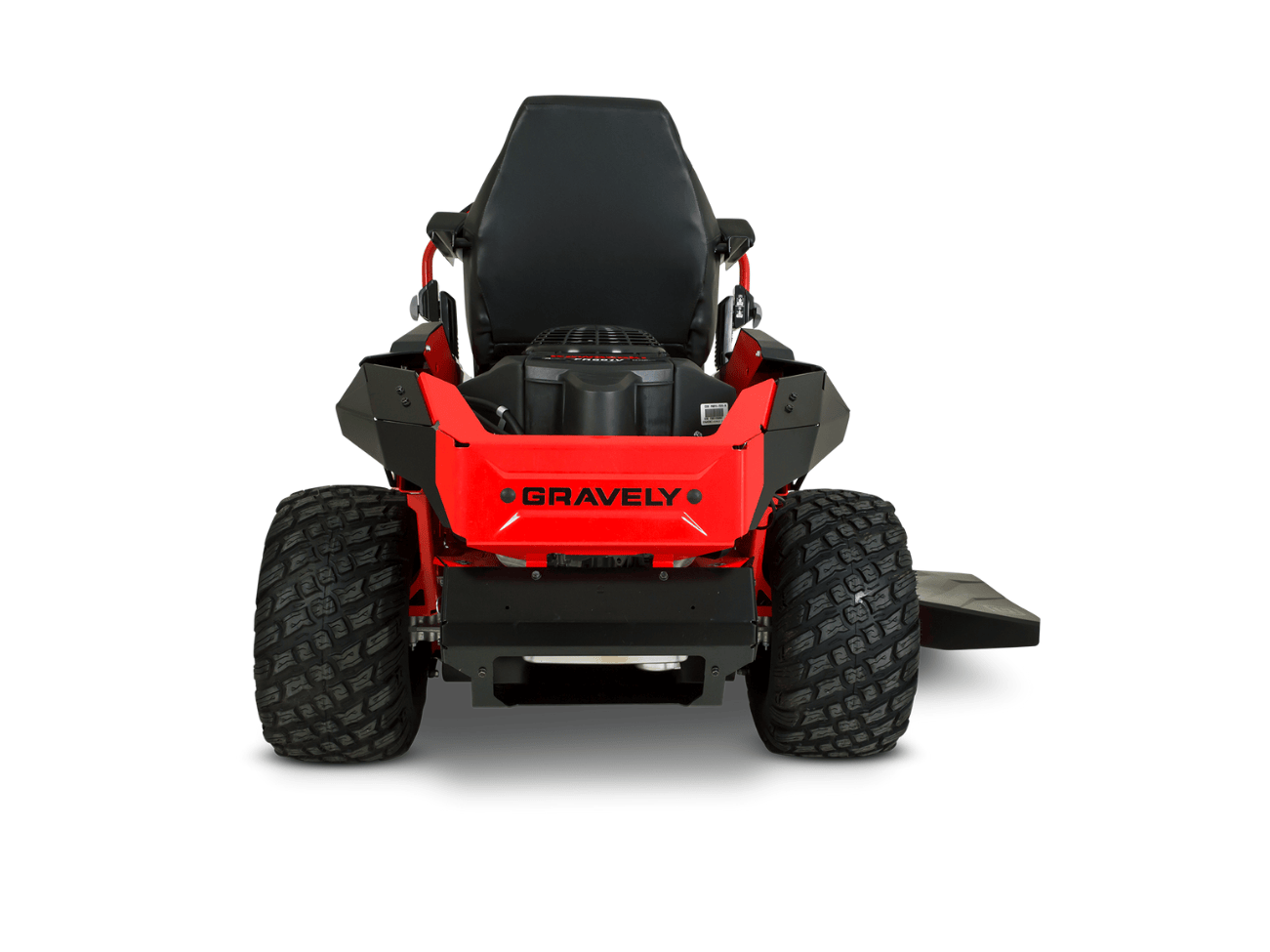

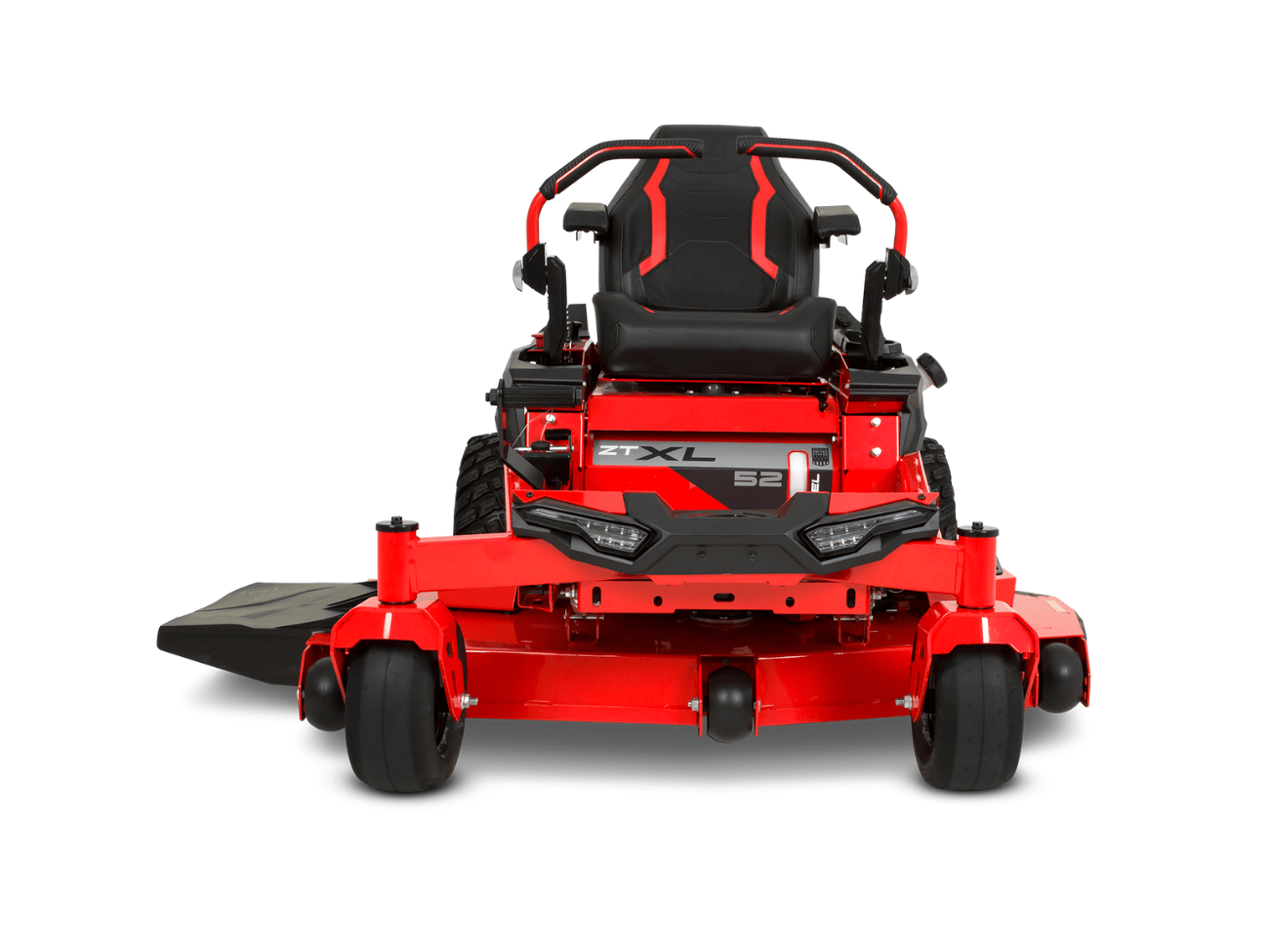

Zero-Turn Mower Gravely ZT XL 52″

Gravely Mowers are available in all KC Equipment Branches: Yatala, Lismore and Murwillumbah.If you have any questions or need assistance with shipping options, our team at KC Equipment is here to help. Simply click on the enquire online button and follow the prompt or give us a call on 07 3297 3000 for our KC Equipment Yatala office, 02 6622 8122 for our KC Equipment Lismore office and 02 6672 2555 for our KC Equipment Murwillumbah office. We’re looking forward to helping you find the perfect solution!

Description

Gravely ZT XL 52” Zero-Turn Mower: Heavy-Duty Power for Large Residential Lawns

The Gravely ZT XL 52” zero-turn mower is designed for homeowners who demand commercial-grade features in a residential machine. Built for big jobs, this powerful unit is packed with heavy-duty components that deliver professional-level performance and durability.

Constructed with a fully welded tubular steel frame, the ZT XL 52” provides unmatched strength and stability. Its Hydro-Gear ZT-2800 transaxles offer increased torque, a smoother ride, and extended lifespan for long-term reliability.

The 4.5-inch deep, 11-gauge fabricated cutting deck is engineered with optimized airflow to deliver exceptional cut quality and efficient grass discharge — making your lawn look professionally maintained.

With Gravely’s legendary engineering and rugged design, the ZT XL 52” ensures your lawn stands out in the neighbourhood for all the right reasons.

Key Features of the Gravely ZT XL 52″

• 11-Gauge Fabricated Deck.
• 4-Point Deck Lift System.
• Fully Welded Tubular Frame.
• 23 hp Kawasaki FR691 V-Twin Engine.
• 13 Cutting Positions.
• Hydrogear Transaxles.

Specifications

Warranty Information

• Domestic Warranty: 4 Years / 400 Hour Domestic Warranty
• Commercial Warranty: 4 Years / 400 Hour Commercial Warranty

Miscellaneous

• Blades: 3
• USB Port: Yes

Dimension Specs

• Dry Weight: 319.7 kg
• Height: 1194 mm
• Width: 1412 mm With Chute Up
• Overall Length: 1892 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up to 11.3 km/h Forward
• Brakes: Steering Arm Integrated Park Brake
• Seat: Bolstered High Back Seat With Arm Rests
• Hour Meter: Standard
• ROPS: ROPS Not Supplied With Units
• Cup Holder: Yes
• Deck System: Fabricated X-FACTOR®
• Deck Lift: Foot Operated
• Deck Construction: 11 Gauge Fabricated
• Blade Tip Speed: 18,000 FPM
• Spindles: Forged Aluminum with Sealed Ball Bearings
• Drive System: Hydro-Gear® ZT-2800® Transaxles

Engine and Fuel Specs

• Engine: Kawasaki FR691V V-Twin
• Engine (cc): 726 cc
• HP: 23 hp
• Fuel Capacity: 13.2 L

Mowing Deck Specs

• Kit – Mulch: Available Optional Accessory

Cutting Dimensions

• Cutting Widths: 52″ (1320 mm) Cut Side Discharge
• Cutting Height(s): 13 Cutting Positions / 38 mm – 114 mm

Manufacturer’s Website

Gravely – gravely.com.au
