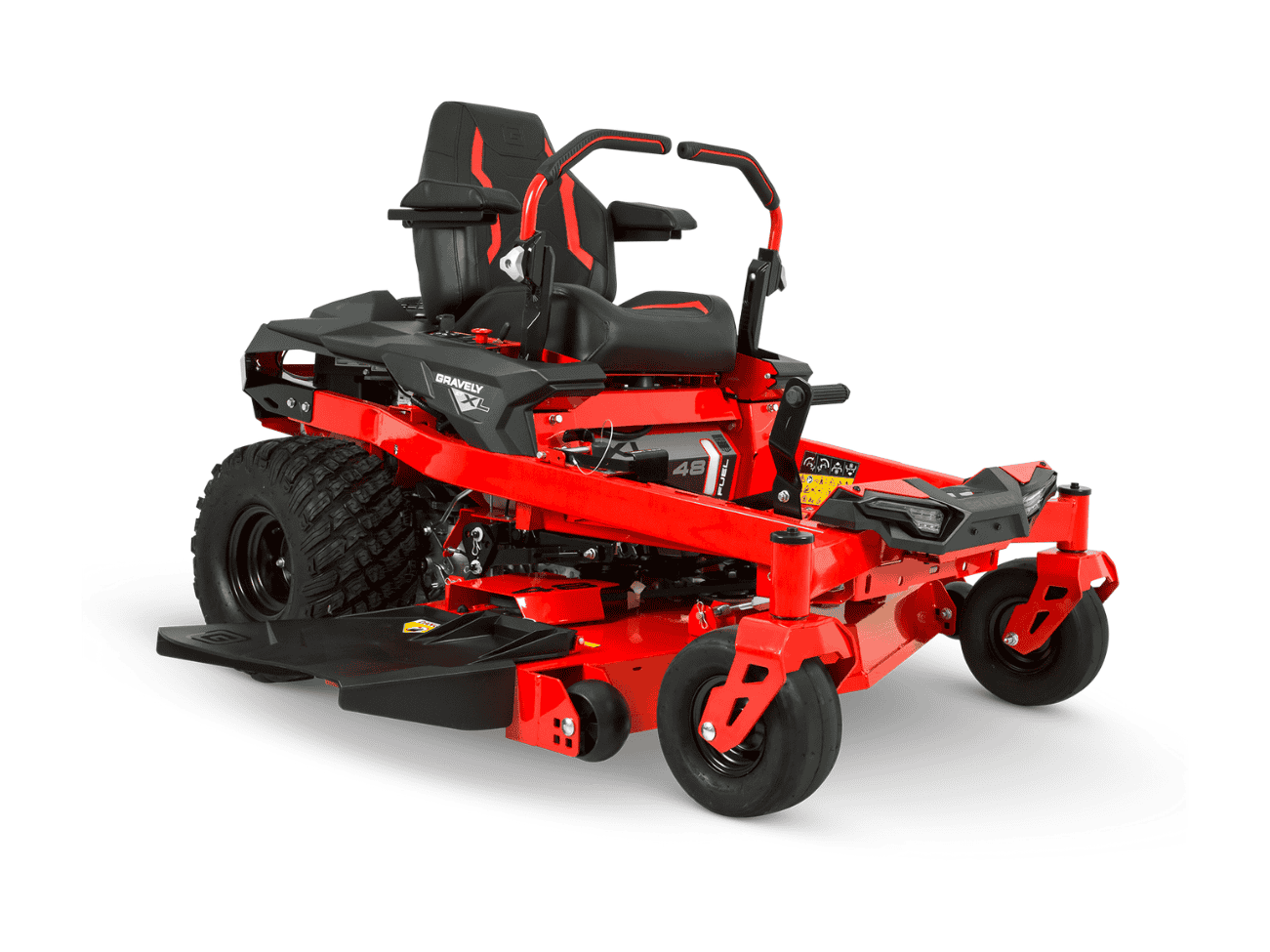

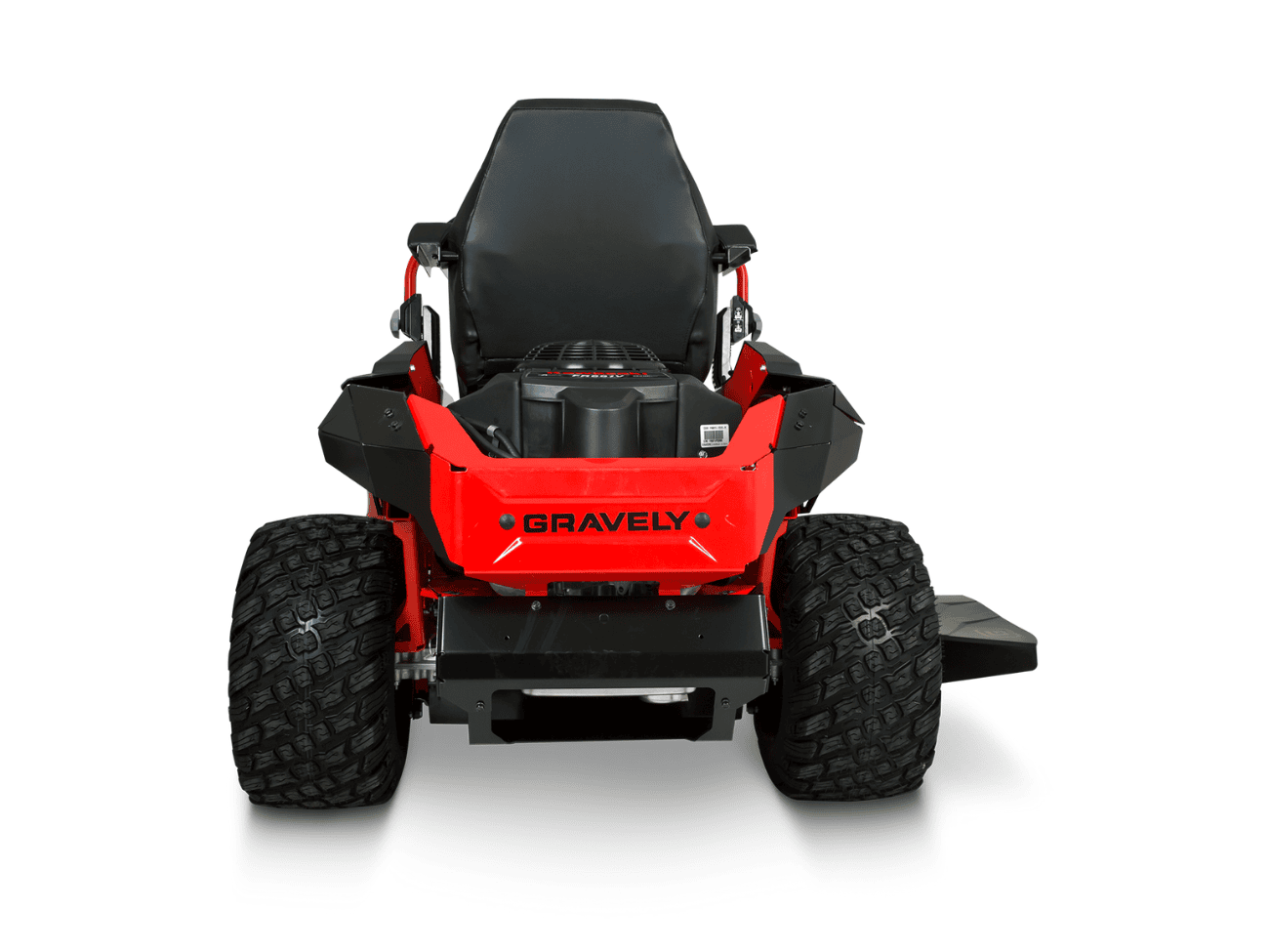

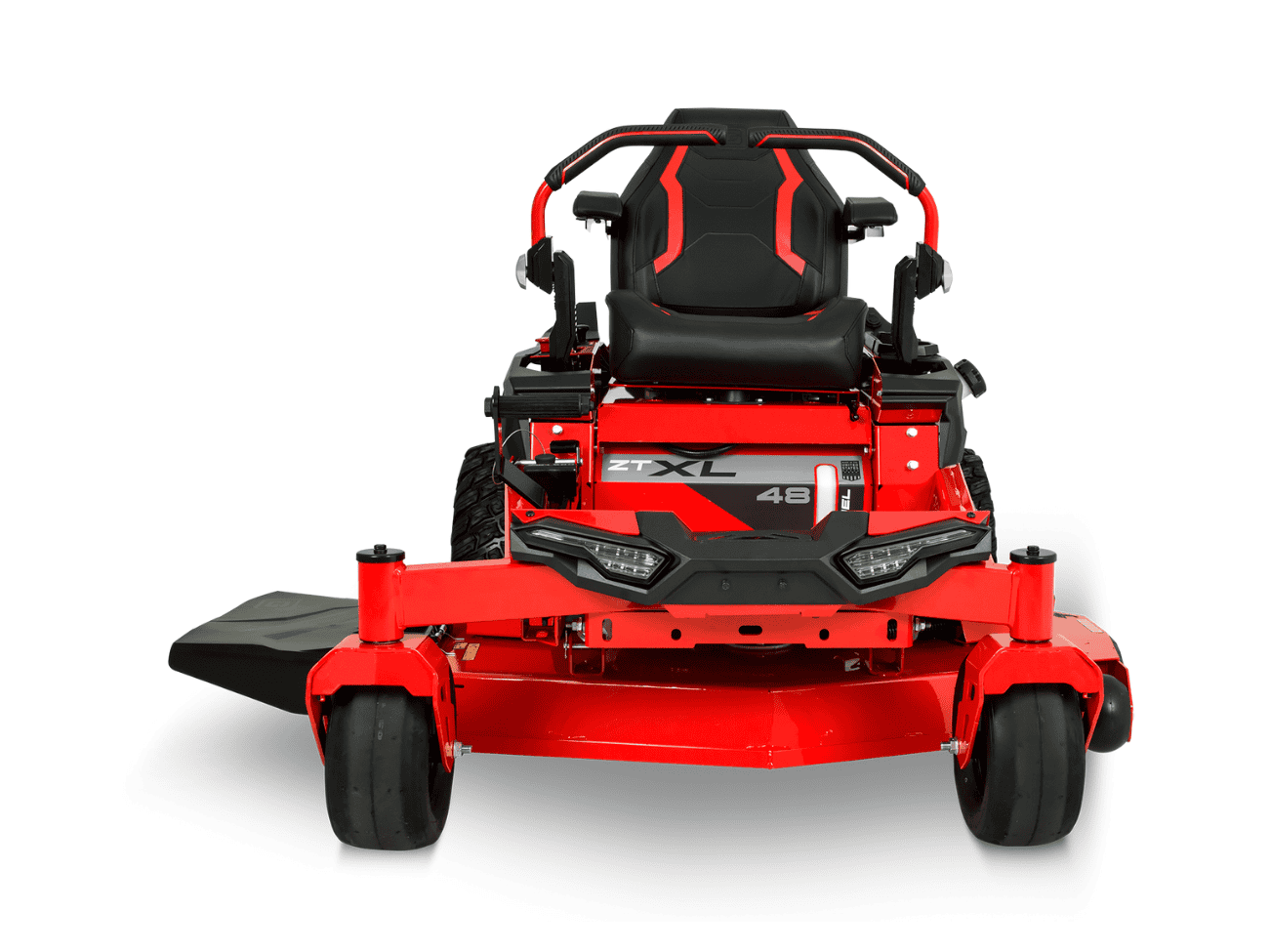

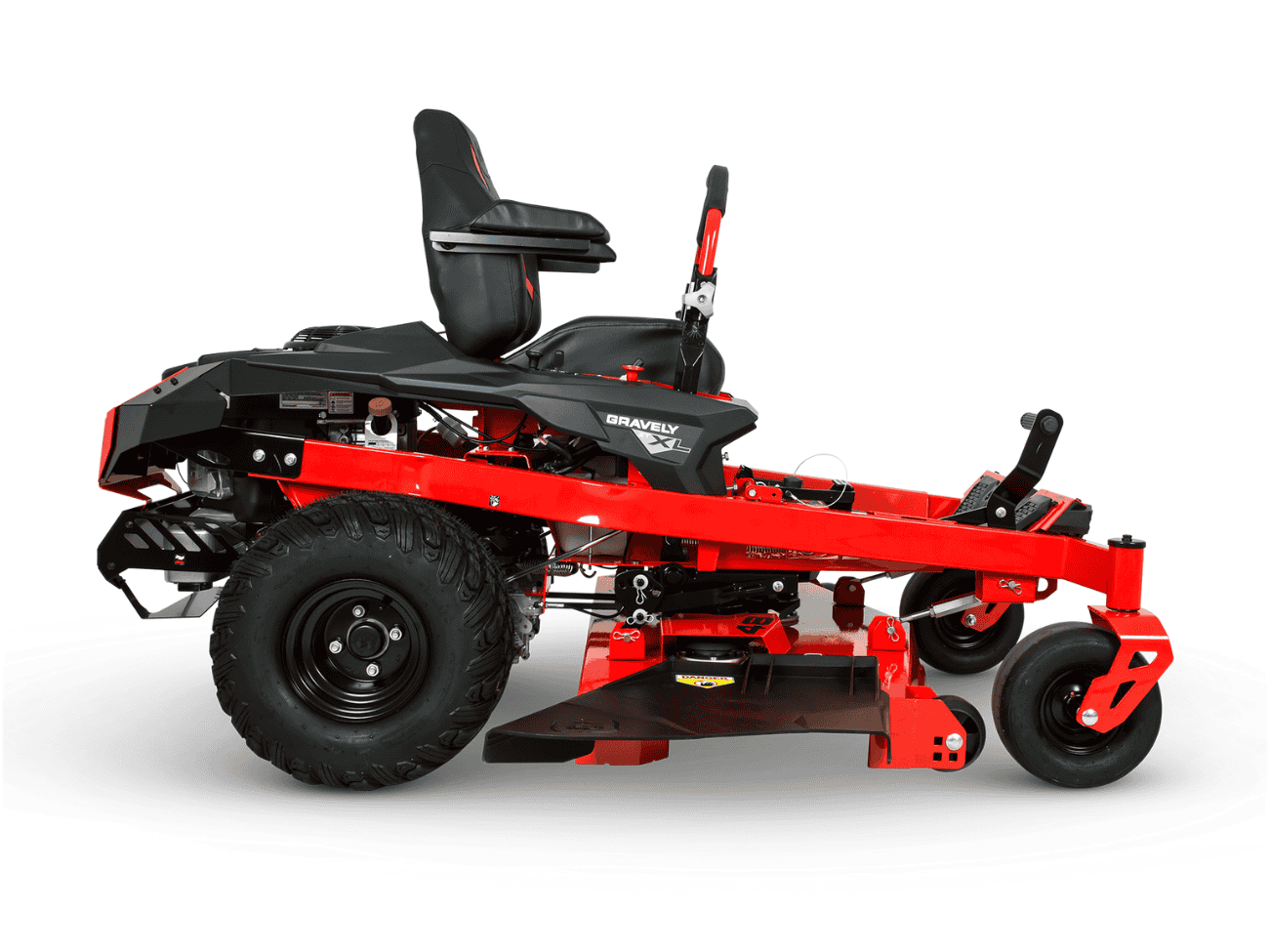

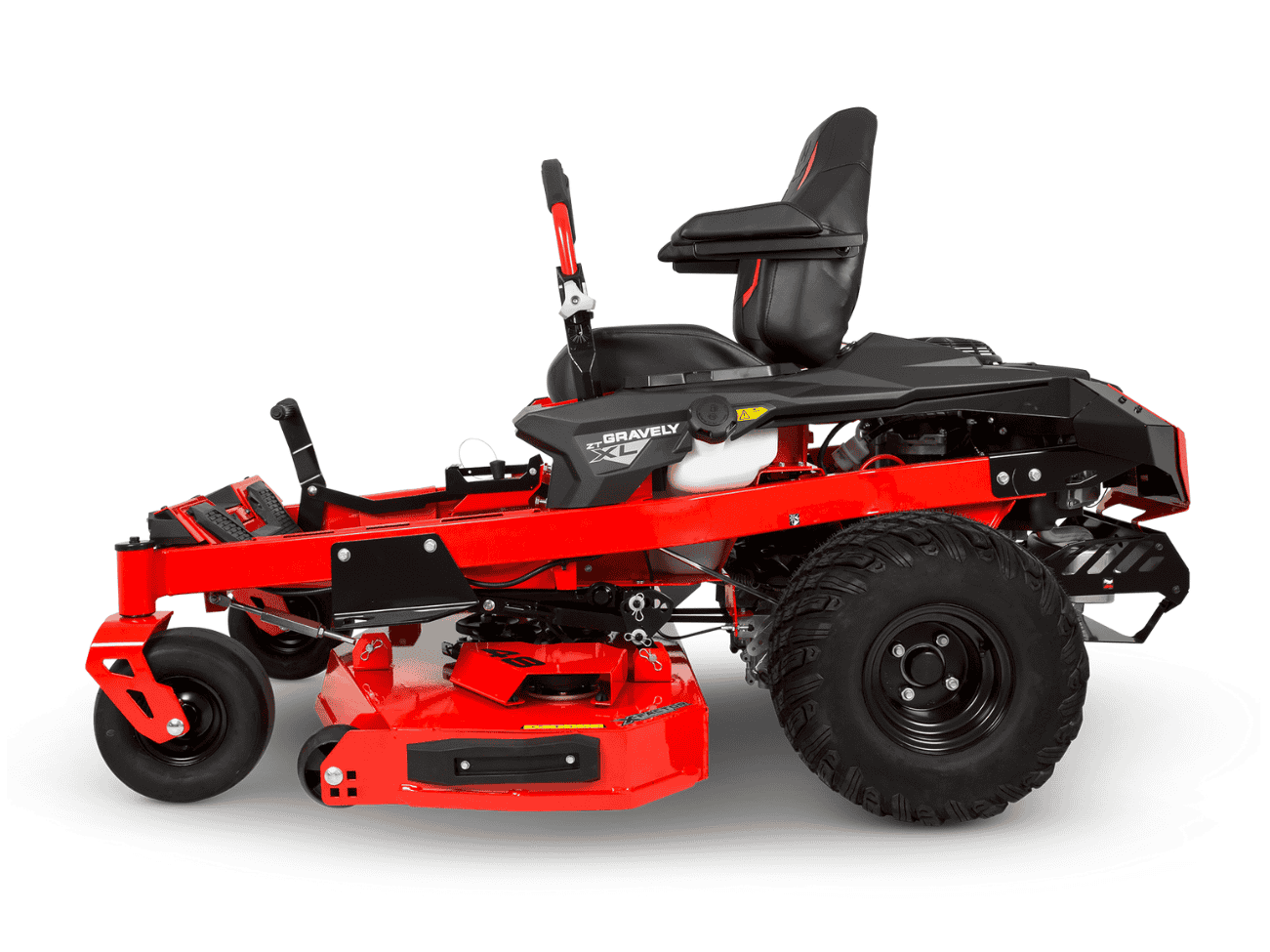

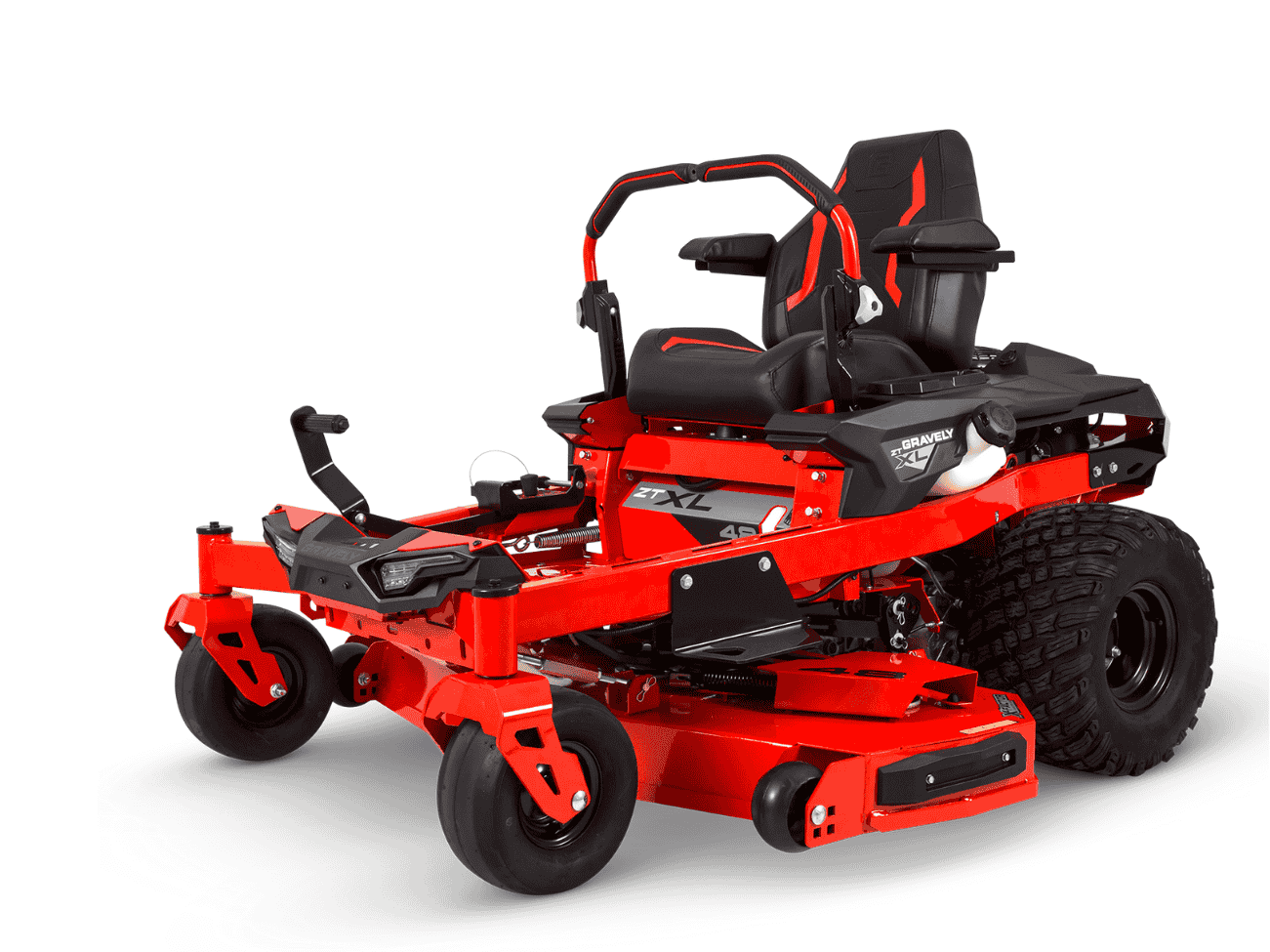

Zero-Turn Mower Gravely ZT XL 48″

Gravely Mowers are available in all KC Equipment Branches: Yatala, Lismore and Murwillumbah. If you have any questions or need assistance with shipping options, our team at KC Equipment is here to help. Simply click on the enquire online button and follow the prompt or give us a call on 07 3297 3000 for our KC Equipment Yatala office, 02 6622 8122 for our KC Equipment Lismore office and 02 6672 2555 for our KC Equipment Murwillumbah office. We’re looking forward to helping you find the perfect solution!

Description

Gravely ZT XL 48” Zero-Turn Mower: Heavy-Duty Performance for Large Residential Lawns

The Gravely ZT XL 48” zero-turn mower is built tough for homeowners who demand commercial-level performance in a residential machine. Featuring a fully welded tubular steel frame, this mower delivers unmatched strength and stability — far beyond the capabilities of bolted frames.

Equipped with Hydro-Gear ZT-2800 transaxles, the ZT XL 48″ provides enhanced torque, a smoother ride, and extended durability. Its 4.5-inch deep, 11-gauge fabricated steel deck is designed with optimised airflow to ensure superior cutting quality and discharge efficiency.

Powered by a reliable Kawasaki V-Twin engine and a generous 10.5-litre fuel tank, this mower is engineered to handle big lawns with ease. The Gravely ZT XL 48” offers the perfect blend of professional-grade features and residential convenience — making it the ultimate choice for serious lawn care enthusiasts.

Key Features of the Gravely ZT XL 48″

• 11-Gauge Fabricated Deck.
• 4-Point Deck Lift System.
• Fully Welded Tubular Frame.
• 23 hp Kawasaki FR691 V-Twin Engine.
• 13 Cutting Positions.
• Hydrogear Transaxles.

Specifications

Warranty Information

• Domestic Warranty: 4 Years / 400 Hour Domestic Warranty
• Commercial Warranty: 4 Years / 400 Hour Commercial Warranty

Miscellaneous

• Blades: 3
• USB Port: Yes

Dimension Specs

• Dry Weight: 312.5 kg
• Height: 1193 mm
• Width: 1298 mm With Chute Up
• Overall Length: 1892 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up to 11.3 km/h Forward
• Brakes: Steering Arm Integrated Park Brake
• Seat: Bolstered High Back Seat With Arm Rests
• Hour Meter: Standard
• ROPS: ROPS Not Supplied With Units
• Cup Holder: Yes
• Deck System: Fabricated X-FACTOR®
• Deck Lift: Foot Operated
• Deck Construction: 11 Gauge Fabricated
• Blade Tip Speed: 18,000 FPM
• Spindles: Forged Aluminum with Sealed Ball Bearings
• Drive System: Hydro-Gear® ZT-2800® Transaxles

Engine and Fuel Specs

• Engine: Kawasaki FR691V V-Twin
• Engine (cc): 726 cc
• HP: 23 hp
• Fuel Capacity: 13.2 L

Mowing Deck Specs

• Kit – Mulch: Available Optional Accessory

Cutting Dimensions

• Cutting Widths: 48″ (1219 mm) Cut Side Discharge
• Cutting Height(s): 13 Cutting Positions / 38 mm – 114 mm

Manufacturer’s Website

Gravely – gravely.com.au
