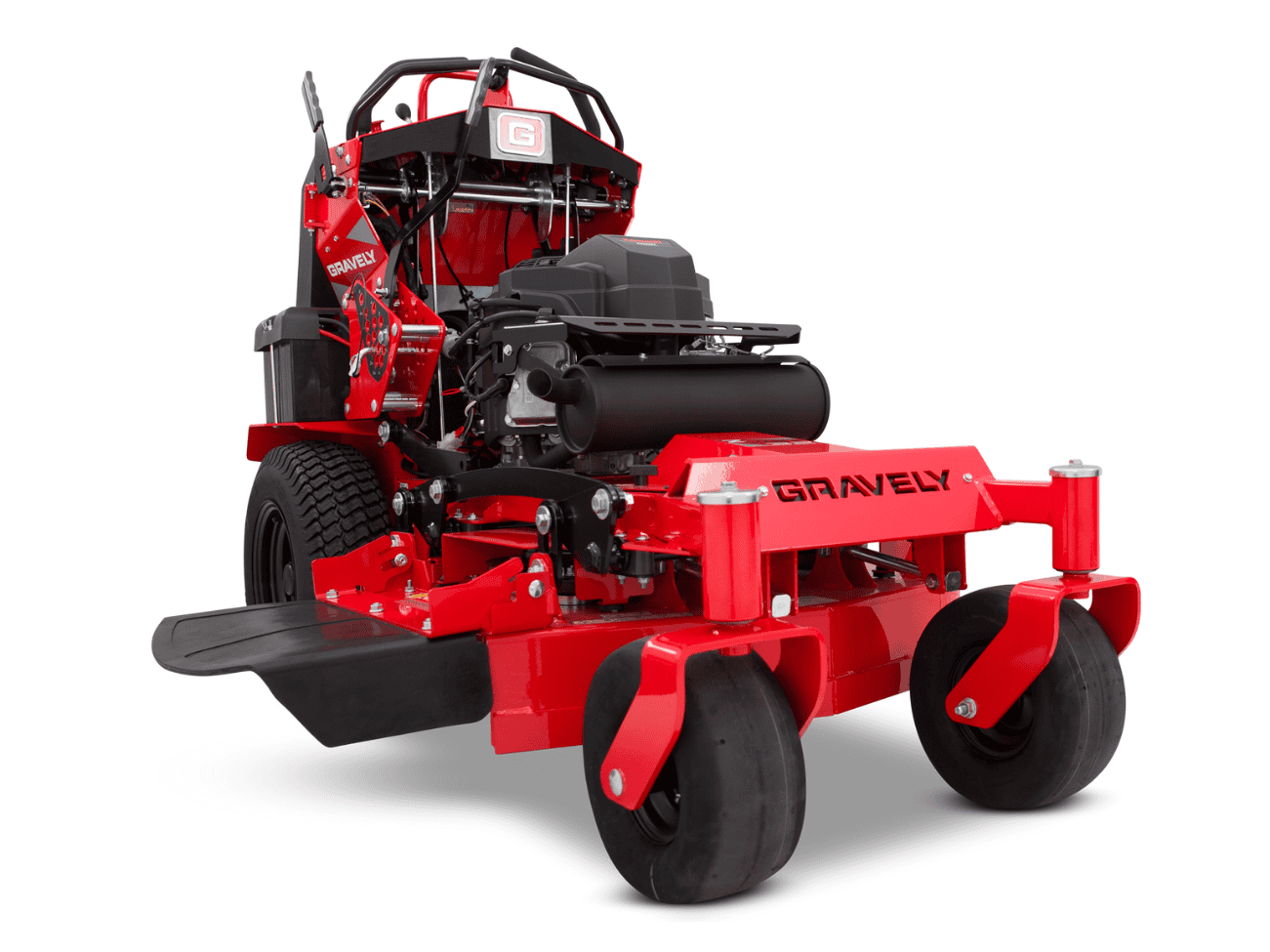

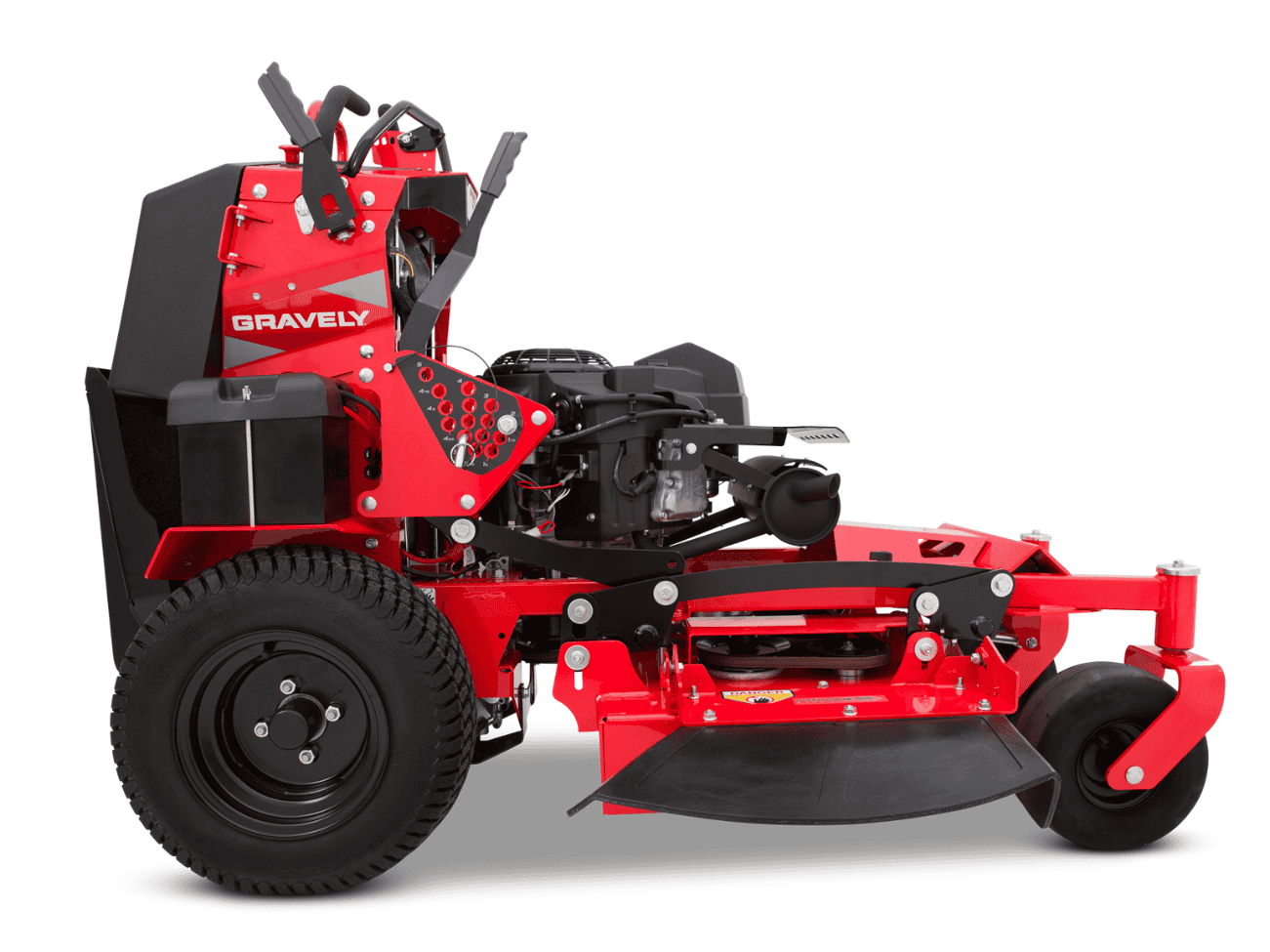

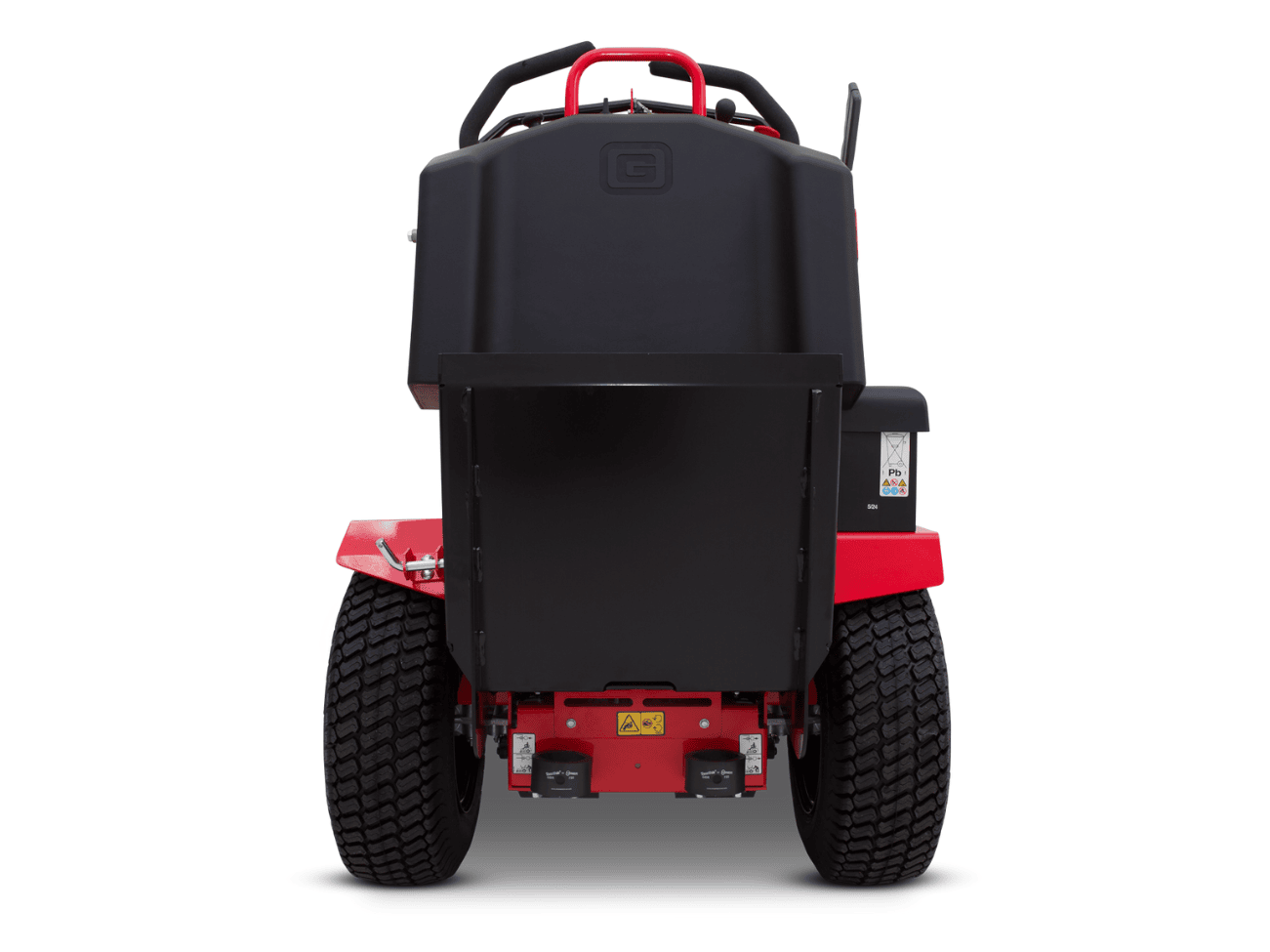

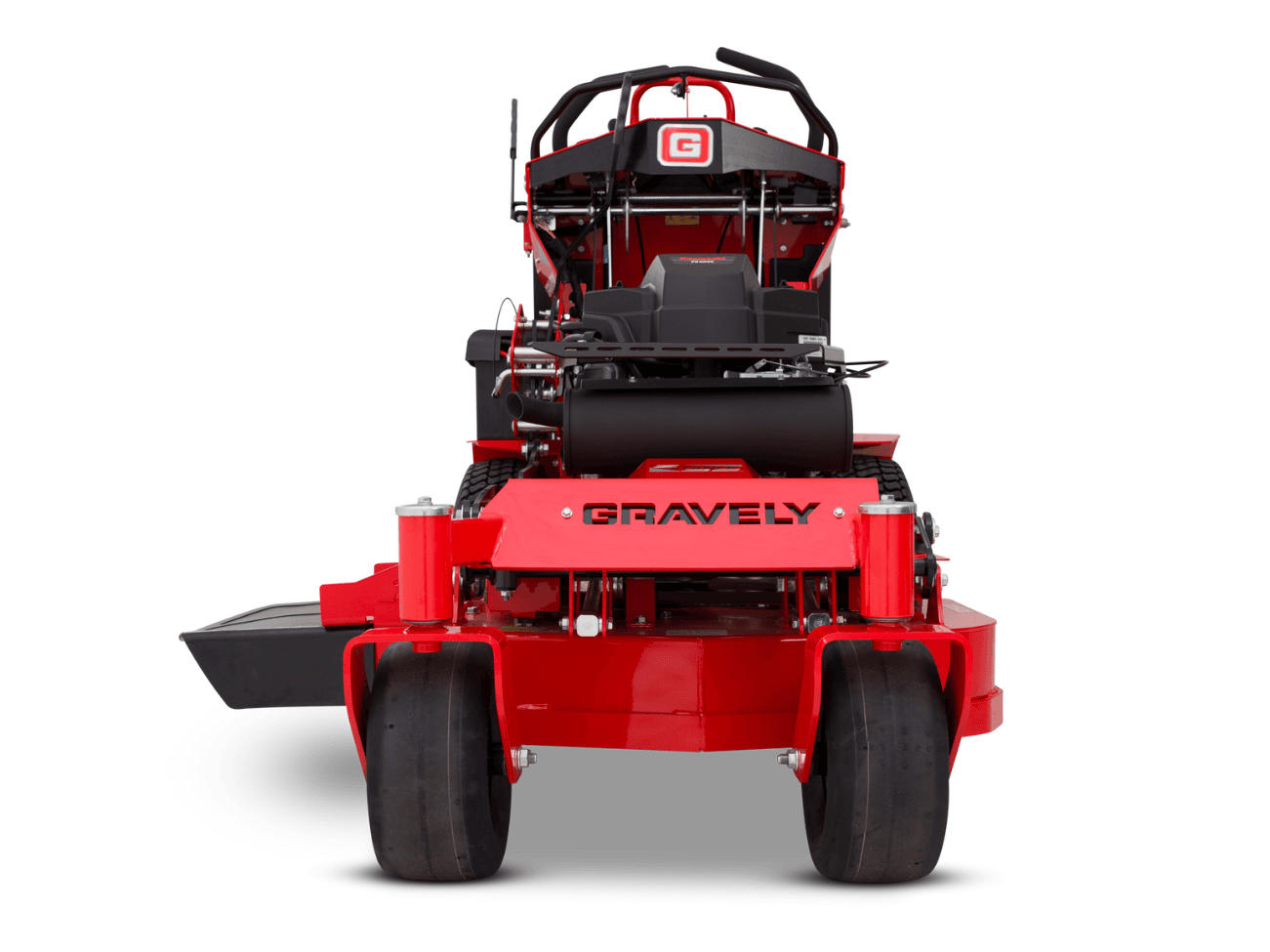

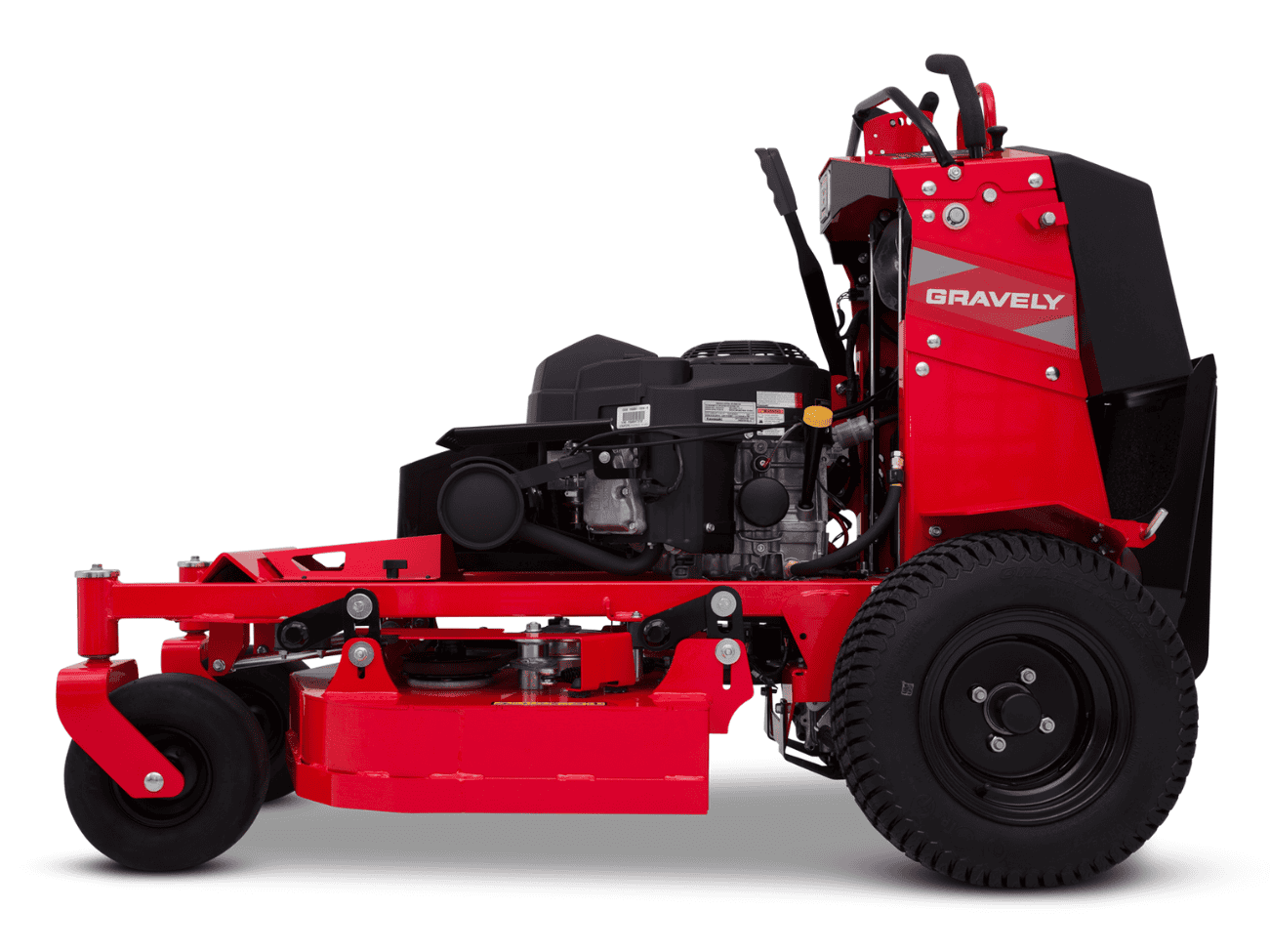

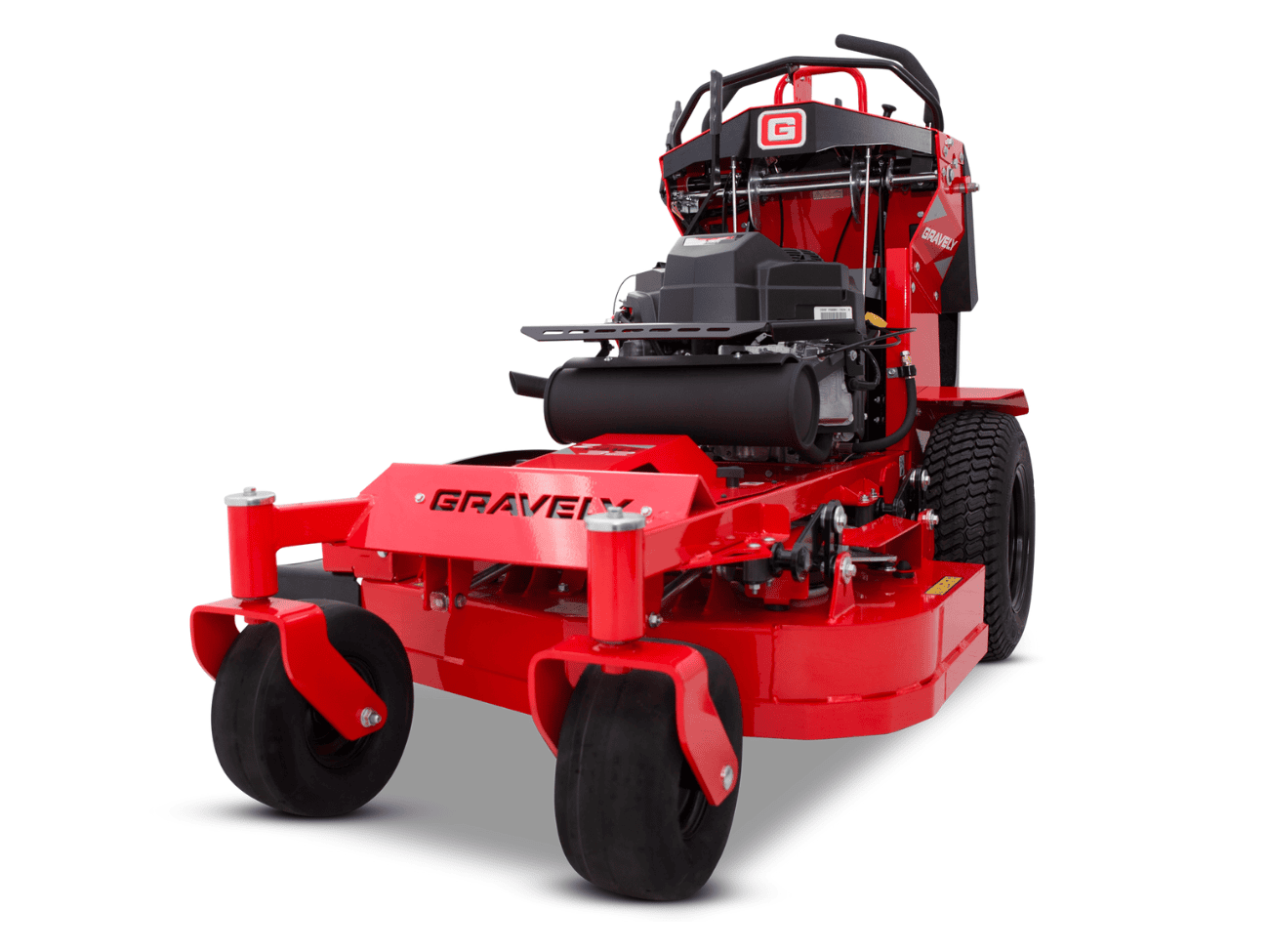

Gravely Z-Stance Stand-On Mower – Power, Precision & Performance

Take a stand for professional-grade performance with the Gravely Z-Stance stand-on mower. Engineered for landscapers who demand comfort, durability, and easy manoeuvrability, the Z-Stance 32″ Stand-On Zero-Turn Mower delivers that signature Gravely cut with speed and precision.

Perfect for tackling tight spaces—from corporate campuses to gated backyards—this commercial stand-on mower is built for efficiency and effortless maintenance. Ride with pride and mow with power on the Gravely Z-Stance 32″ Stand-On Zero-Turn Mower.

Key Features of the Gravely Z-Stance 32″ Stand-On Zero-Turn Mower

• Powered by a 18.5 hp Kawasaki FS600V premium and Commercial Grade V-twin engine.
• Operator Comfort Features Exceptional Operator Positioning for All-Day Comfort.
• Added Efficiency – Reduced Complexity Gives Users the Freedom to Make Critical Adjustments in Just Minutes.
• X-FACTOR® 2 deck – The Deck has been Completely Redesigned for Better Grass Dispersion. Its New Look is Constructed from 7-Gauge Steel to Deliver Years of Solid Performance.
• Compact Stance Perfect for Tight Spaces.
• Cut selection Offers 15 cutting positions, ranging from 38.1 mm – 127mm, to make your lawn look its best.
• Shock-Absorbed Operator Platform which Responds to Driver’s Weight.
• Heavy-Duty Fabricated Frame.

Specifications

Warranty Information

• Domestic Warranty: 4 Years / 500 Hour Domestic Warranty
• Commercial Warranty: 4 Years / 500 Hour Commercial Warranty

Miscellaneous

• Blade(s): 2 x Bar Blades

Dimension Specs

• Dry Weight: 304 kg
• Height: 1207 mm
• Width: 851 mm With Chute Up
• Length: 1634 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up To 11.2 km/h Forward
• Brakes: Hand-Operated Park Brake
• Construction: Frame 1″ x 3″ STEEL Tubular Frame Welded
• ROPS: No
• Controls: Hand-Operated Choke, Throttle, Ignition Switch, Electric Mower Clutch, Hand Lever Operated Hand Brake
• Deck System: 4 Point Lift Fabricated
• Deck Lift: Dual Deck Height Adjustment
• Deck Construction: Fabricated 7 Gauge
• Blade Tip Speed: 18,220 FPM
• Blade Drive: V-Belt Drive to Spindles with Electric Clutch. Spring Tension Idler Pulleys for Extended Belt Life
• Spindles: Forged Aluminium with Sealed Ball Bearings
• Drive System: Hydro-Gear® ZT-3100 Transaxle
• Discharge Chute: High Density, Rubberised
• Steering: Twin-Lever Steering Provides Independent Control of Each Drive Wheel. Speed, Forward, Reverse, and Turns are All Controlled With Hand-Operated Controls.

Engine and Fuel Specs

• Engine: Kawasaki FS600V
• Type: Air cooled, 90-degree V-Twin, Normally Aspirated Petrol Engine
• Engine (cc): 603 cc
• Cooling: Air Cooled Flywheel Fan
• Fuel: Unleaded Fuel – Maximum of 10% Ethanol in Fuel (see engine manufacturers specifications)
• Fuel Filter: Replaceable, Automotive-Type
• Oil Filter: Spin-On Engine Oil Filter / Total Oil Capacity 1.7 Litres with Filter
• Air Filter: Dual Element with Reinforced Primary Filter
• Fuel Capacity:17 L
• Governor: Mechanical

Hydrostatic Drive System Specs:

• Hydrostatic Drive System: Dual hydrostatic
• Drive Cooling: Transmission mounted fans
• Drive Filter: Yes
• Pumps: Hydro Gear ZT-3100

Cutting Dimensions

• Cutting Widths: 32″ (812.8 mm) Cut Side Discharge
• Cutting Height(s): 50 mm – 127 mm
