Zero-Turn Mower Gravely Pro-Turn 348

Gravely Mowers are available in all KC Equipment Branches: Yatala, Lismore and Murwillumbah. If you have any questions or need assistance with shipping options, our team at KC Equipment is here to help. Simply click on the enquire online button and follow the prompt or give us a call on 07 3297 3000 for our KC Equipment Yatala office, 02 6622 8122 for our KC Equipment Lismore office and 02 6672 2555 for our KC Equipment Murwillumbah office. We’re looking forward to helping you find the perfect solution!

Description

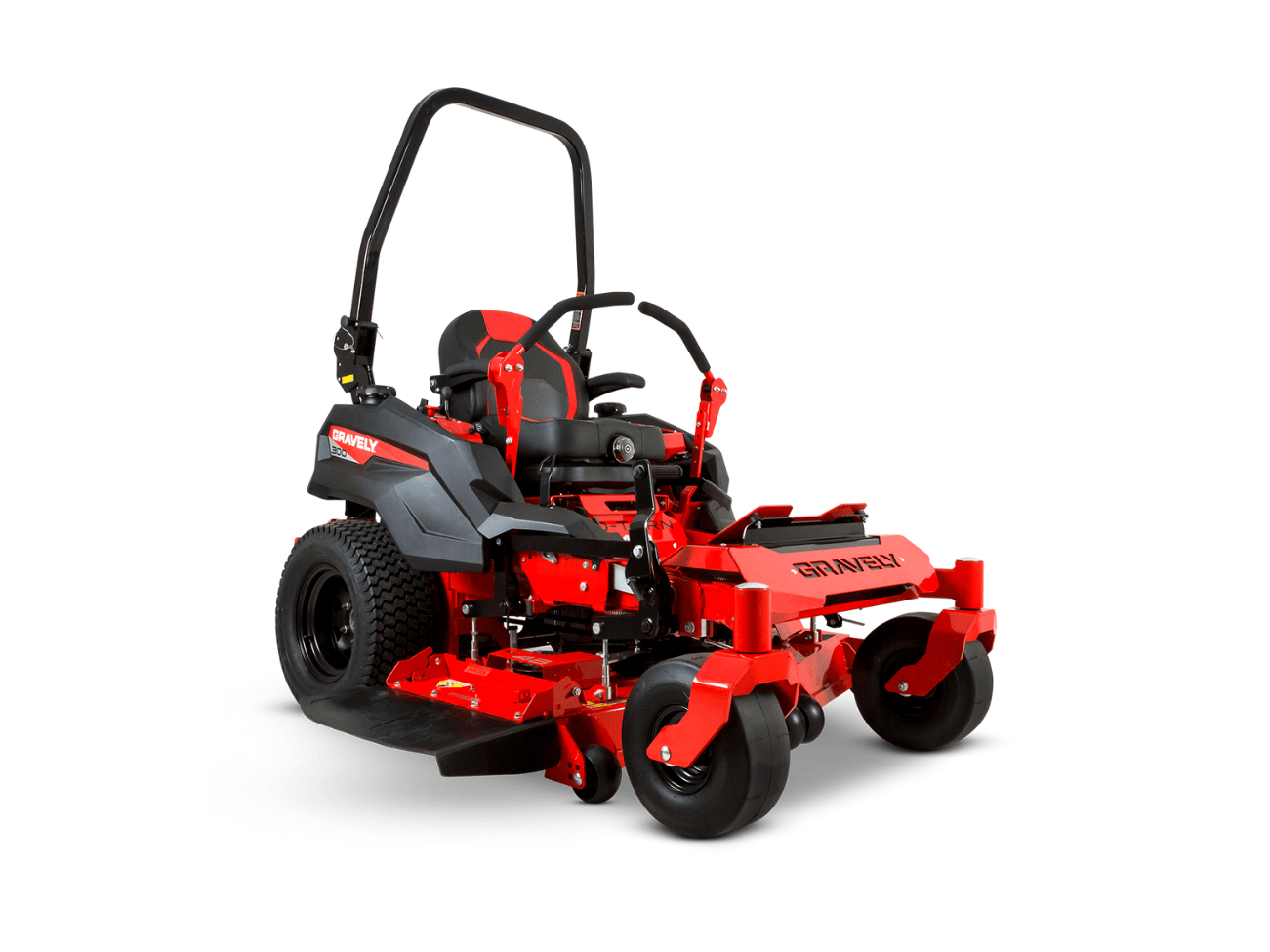

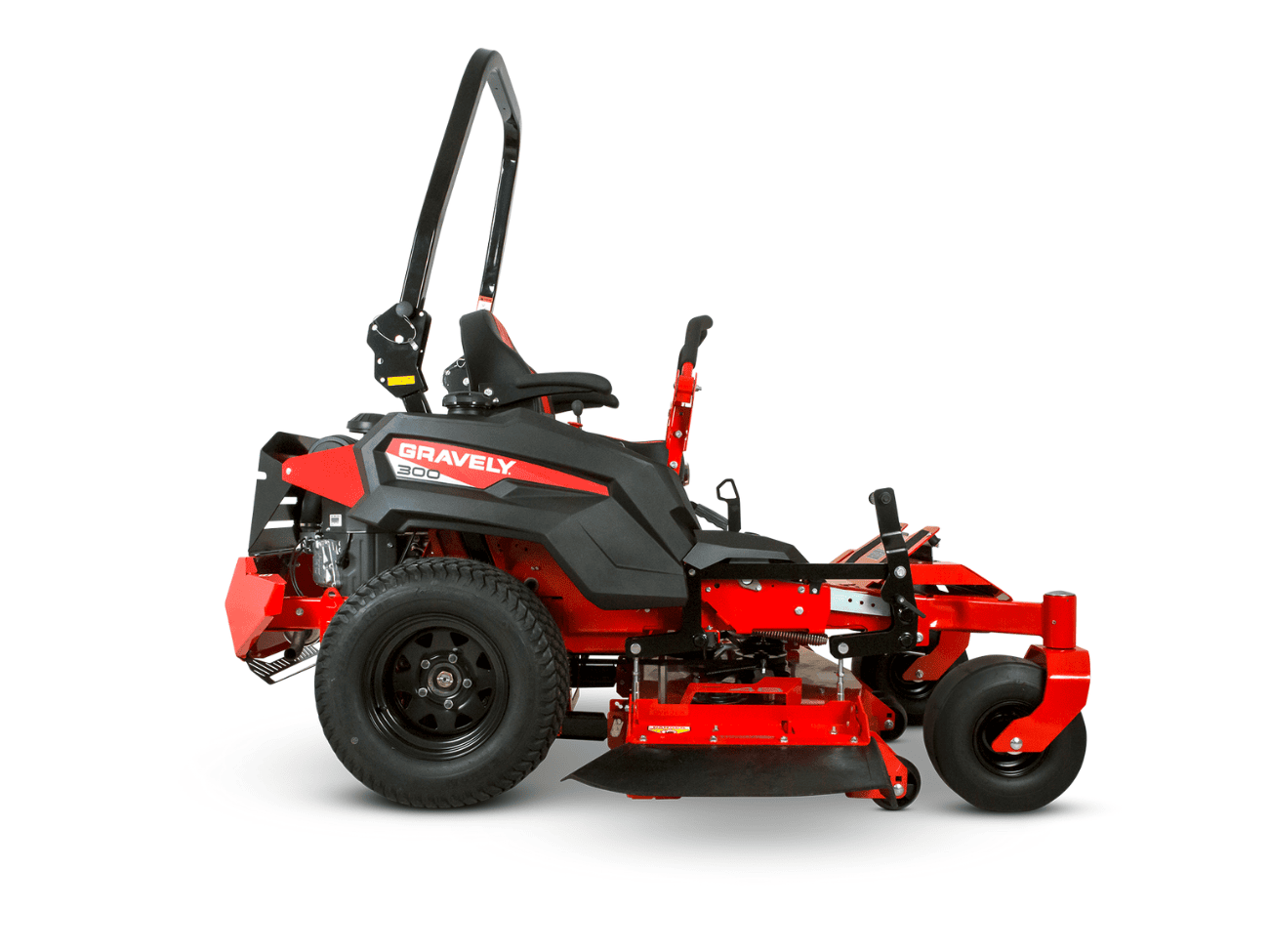

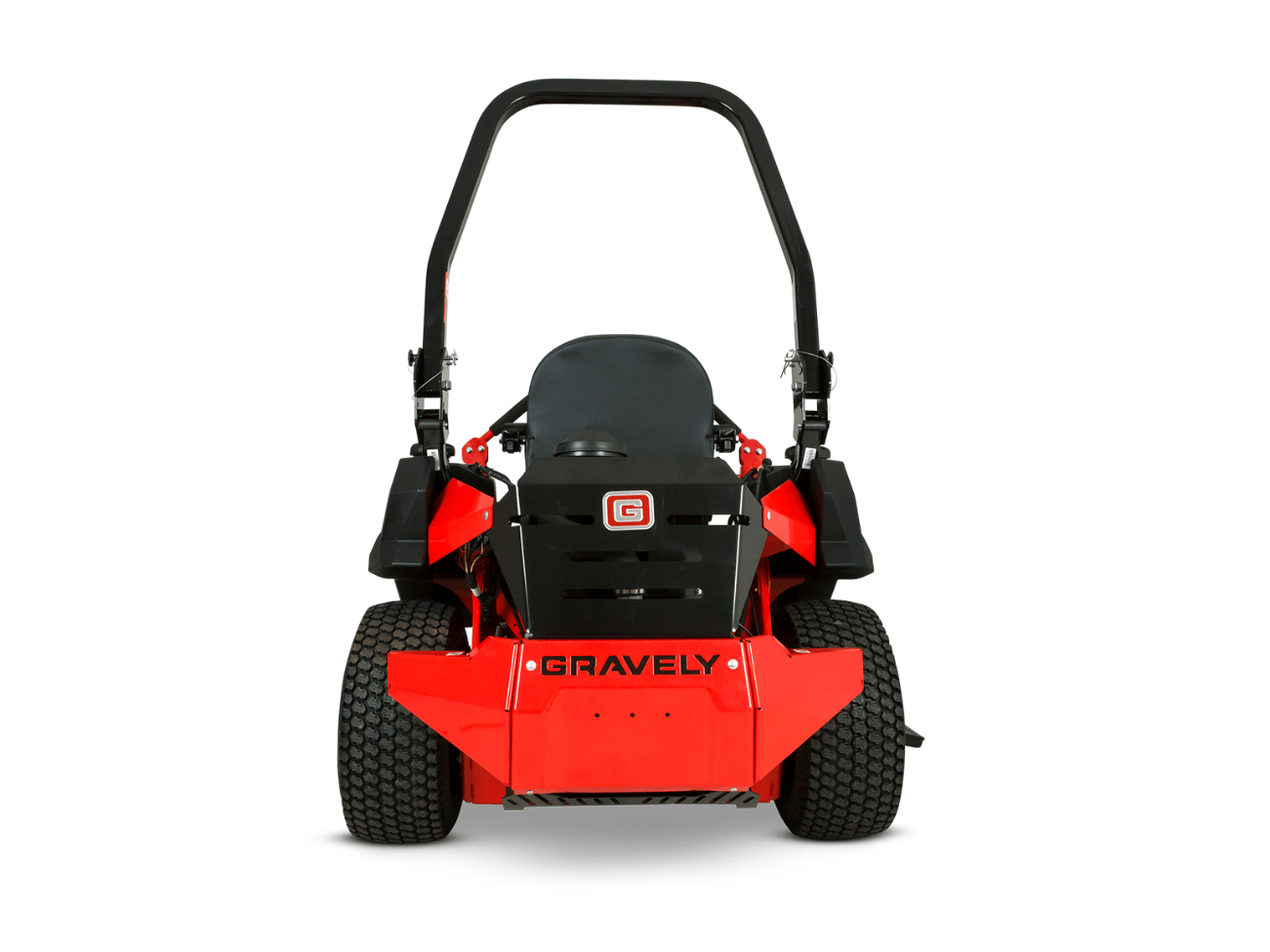

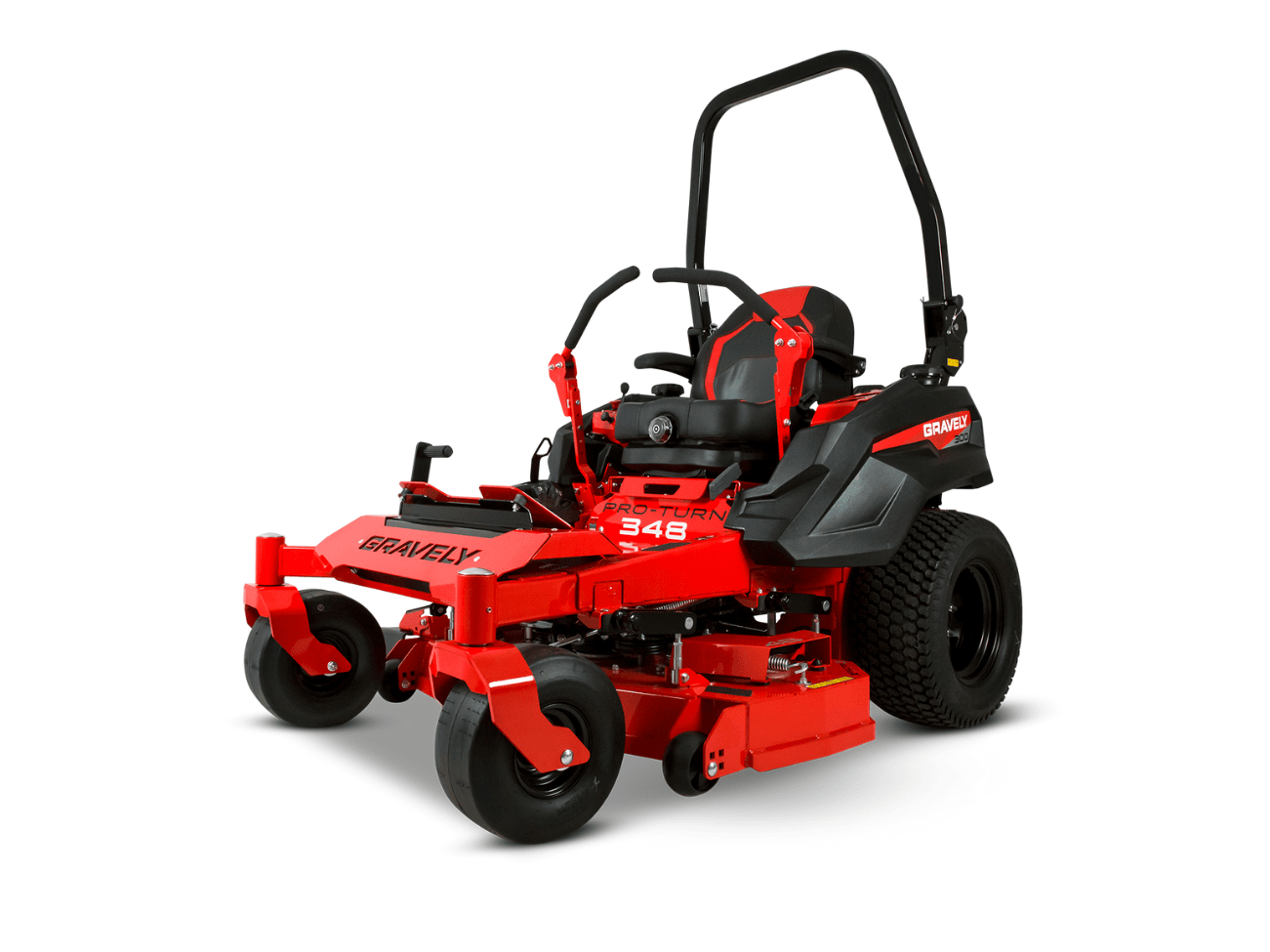

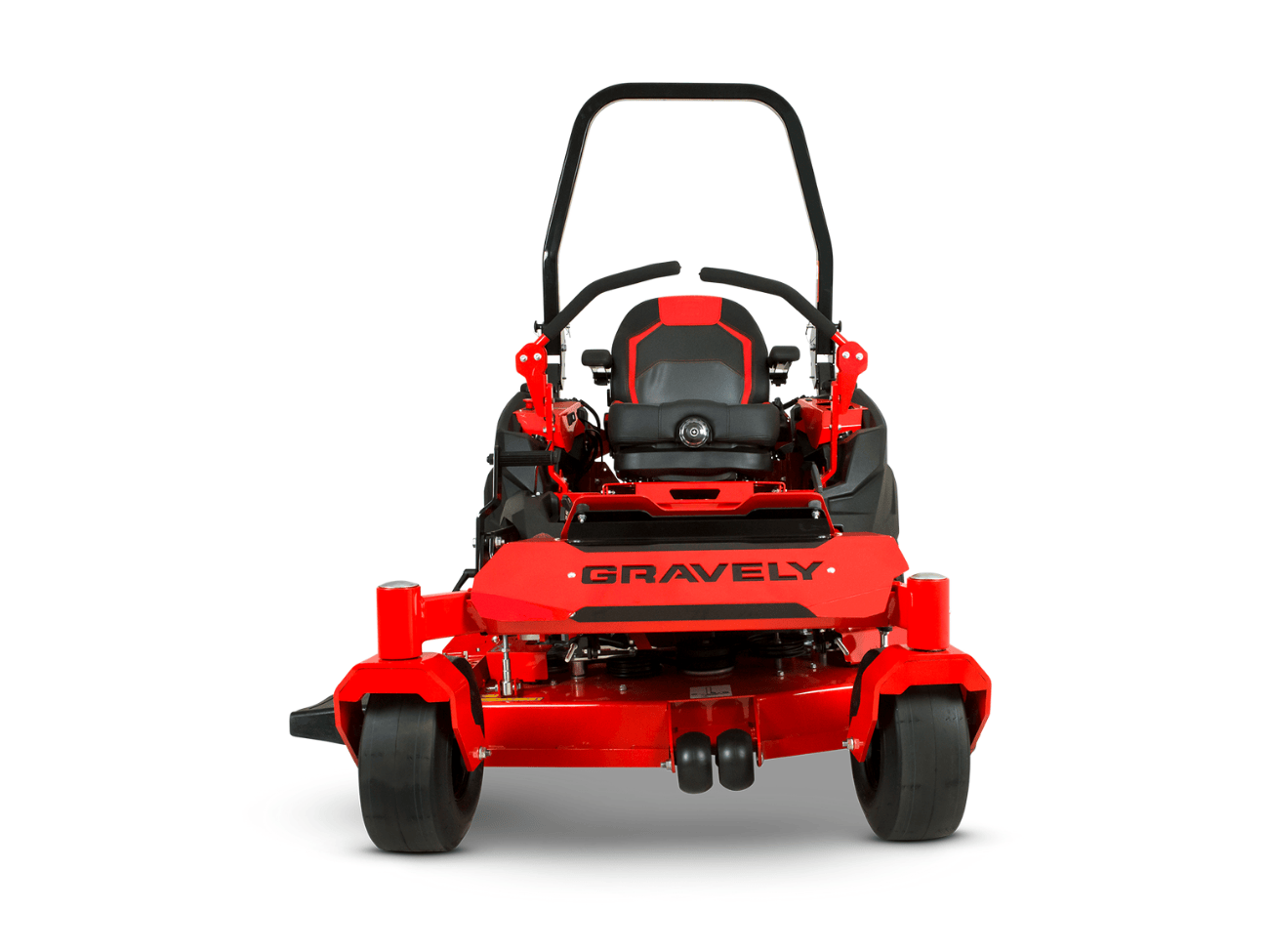

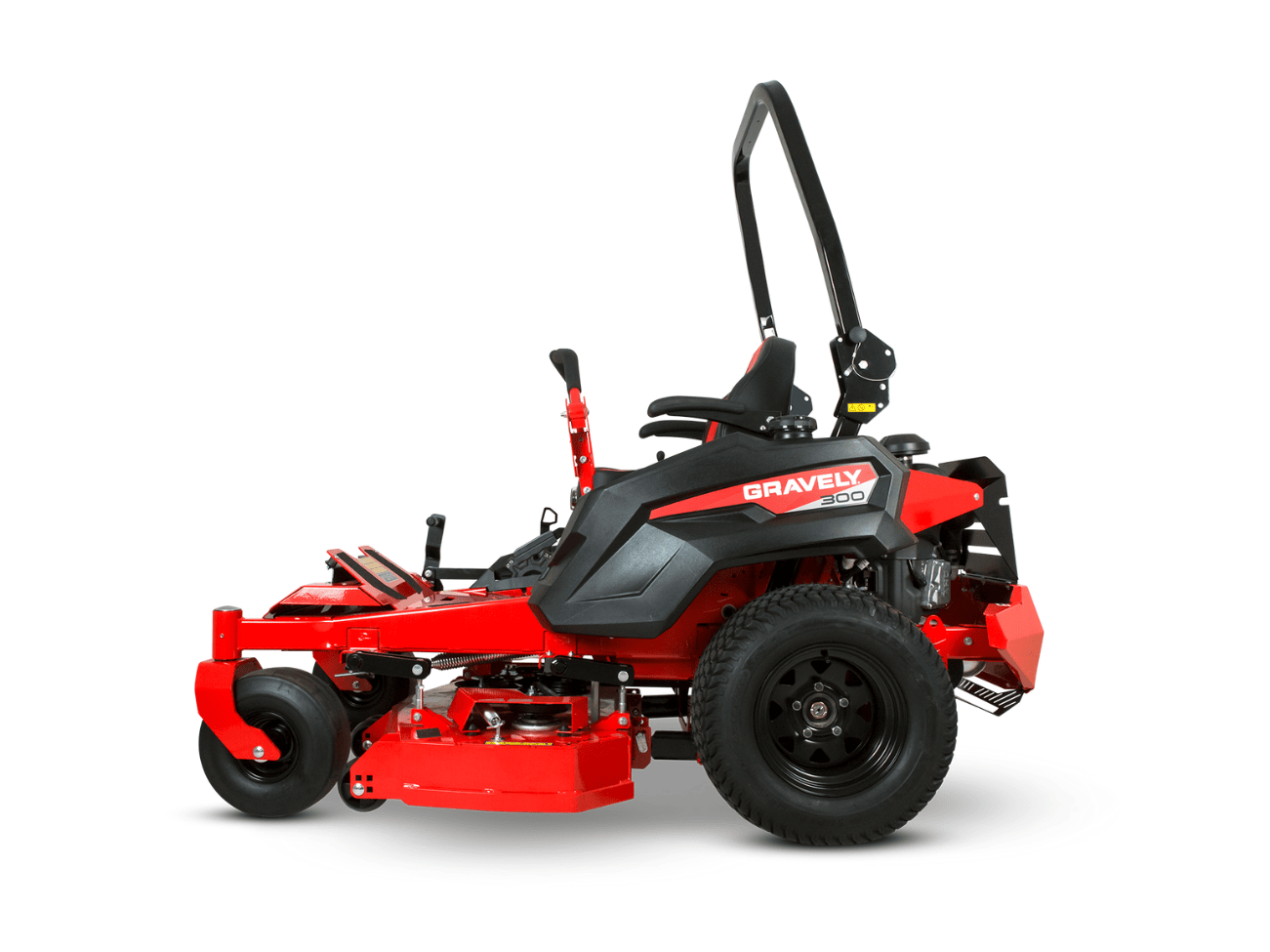

Gravely Pro-Turn 348 Zero-Turn Mower: Next-Level Comfort and Commercial Cutting Power

Meet the Gravely Pro-Turn 348 Zero-Turn — a newly redesigned commercial zero-turn mower engineered for long days and tough jobs. Built for all-day comfort and all-season performance, this hard-working unit features advanced innovations that deliver precision cutting, increased durability, and unmatched operator comfort.

From sunrise to sunset, the Pro-Turn 348 takes your mowing experience to the next level.

Key Features of the Gravely Pro-Turn 348

• A premium quality 25.5 hp Kawasaki FX801V V- Twin Engine Featuring a Multi-Stage Remote Canister Heavy Duty Air Filter System and Cast-Iron Cylinder Liners.
• PARKER HTJ Transaxles 12cc Pumps.
• Suspension Seat is Adjustable and Has the New Addition of a Low-Profile Seat Mechanism for Added Comfort.
• Fully Welded Tubular Frame. One Glance and You Can See Its Strength and Ruggedness. Its Wide Front Rail Distributes Weight for Superior Balance. Also Supports the Deck Lift for Easy Engagement. Includes a Limited Lifetime Warranty.
• Cut Selection Offers 19 Cutting Positions, Ranging from 25.4 mm – 139.7 mm, to Make Your Lawn Look Its Best.
• Foot-Operated Deck Lift.
• X-FACTOR® 3 Deck – The Deck Has Been Completely Redesigned for Better Grass Dispersion. Its New Look is Constructed from 7-Gauge Steel to Deliver Years of Solid Performance.
• Forged Aluminium Cutter Spindles with Sealed Ball Bearings.
• Productivity – 5.7 Acres Per Hour.

Specifications

Warranty Information

• Domestic Warranty: 5 Years / 1250 Hour Domestic Warranty
• Commercial Warranty: 5 Years / 1250 Hour Commercial Warranty

Miscellaneous

• Blade(s): 3 x Bar Blades

Dimension Specs

• Dry Weight: 560.1 kg
• Height: 1930.4 mm With ROPS Up, 1214.1 mm With ROPS Down
• Width: 1296 mm With Chute Up
• Overall Length: 2108 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up To 17.7 km/h Forward
• Brakes: Hand Park Brake
• Seat: High Back with Suspension & Padded Armrests
• Construction: STEEL Tubular Frame Welded
• ROPS: Foldable ROPS Standard
• Controls: Hand-Operated Choke, Throttle, Ignition Switch, Electric Mower Clutch, Hand Park Brakes
• Cup Holder: Yes
• Deck System: X-Factor® 3 Fabricated
• Deck Lift: Foot Operated
• Deck Construction: Fabricated 7 Gauge w’ 1/4″ Spindle Reinforcement
• Blade Drive: V-Belt Drive to Spindles with Electric Clutch. Spring Tension Idler Pulleys for Extended Belt Life
• Blade Tip Speed: 18,000 FPM
• Spindles: Forged Aluminium with Sealed Ball Bearings
• Drive System: Parker HTJ 12cc Dual Hydrostatic Transmission
• Discharge Chute: High Density, Rubberised
• Steering: Twin-Lever Steering Provides Independent Control of Each Drive Wheel. Speed, Forward, Reverse, and Turns are All Controlled With Hand-Operated Controls.

Engine and Fuel Specs

• Engine: Kawasaki FX801V
• Engine (cc): 852 cc
• HP: 25.5hp
• Cooling: Air Cooled Flywheel Fan
• Fuel: Unleaded Fuel – Maximum of 10% Ethanol in Fuel (See Engine Manufacturers Specifications)
• Fuel Filter: Replaceable, Automotive-Type
• Oil Filter: Spin-On Engine Oil Filter / Total Oil Capacity 2.1 Litres with Filter
• Air Filter: Multi-Stage Remote Canister Heavy Duty Air Filter System
• Fuel Capacity: 47.3L
• Governor: Mechanical

Safety Features

• Safety Features: Operator presence system connected to clutch, seat, and park brakes.

Hydrostatic Drive System Specs

• Drive Cooling: Transmission Mounted Fans

Cutting Dimensions

• Cutting Widths: 48″ (1219 mm) Cut Side Discharge
• Cutting Height(s): 25 mm – 139 mm

Manufacturer’s Website

Gravely – gravely.com.au
