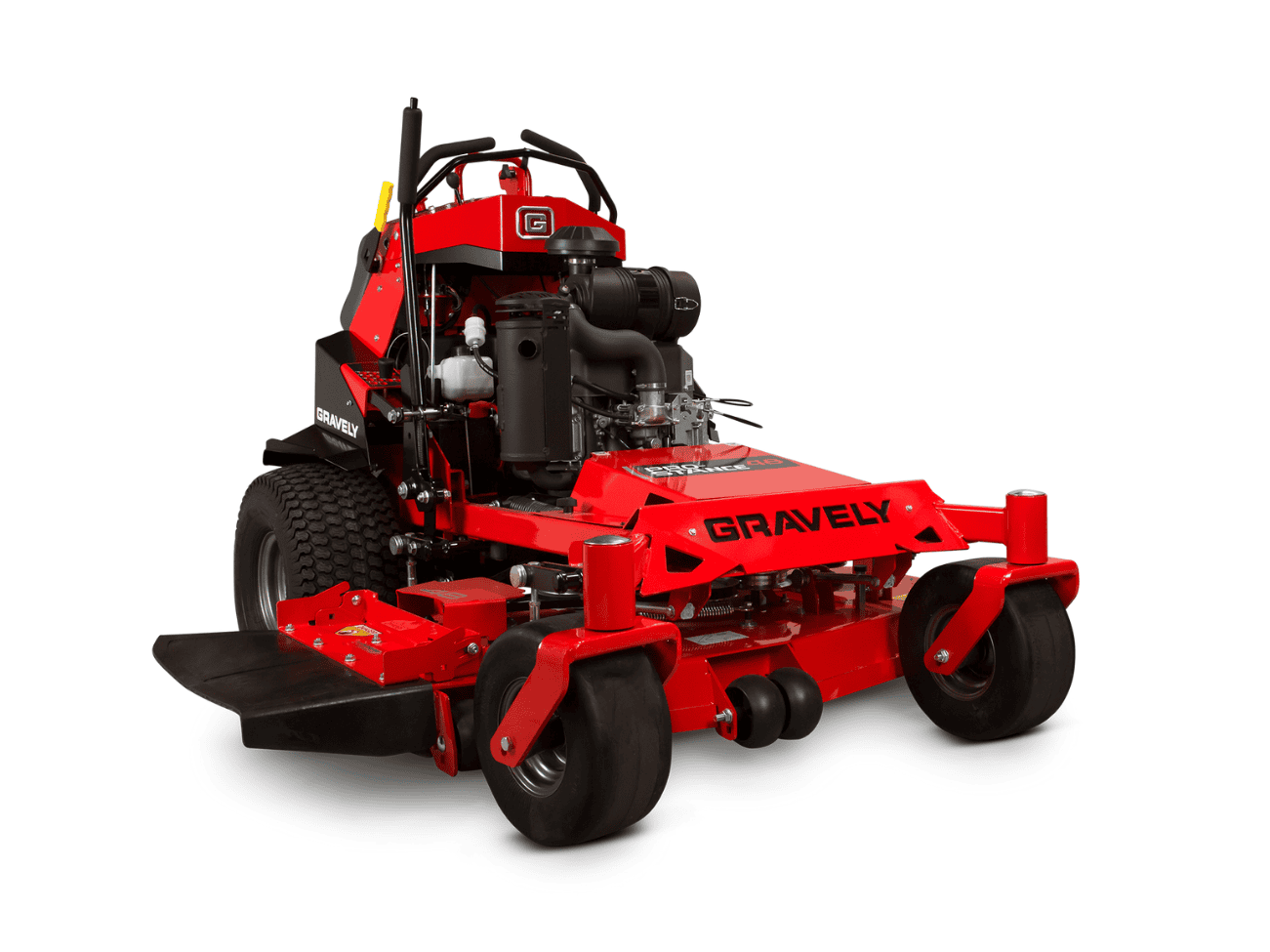

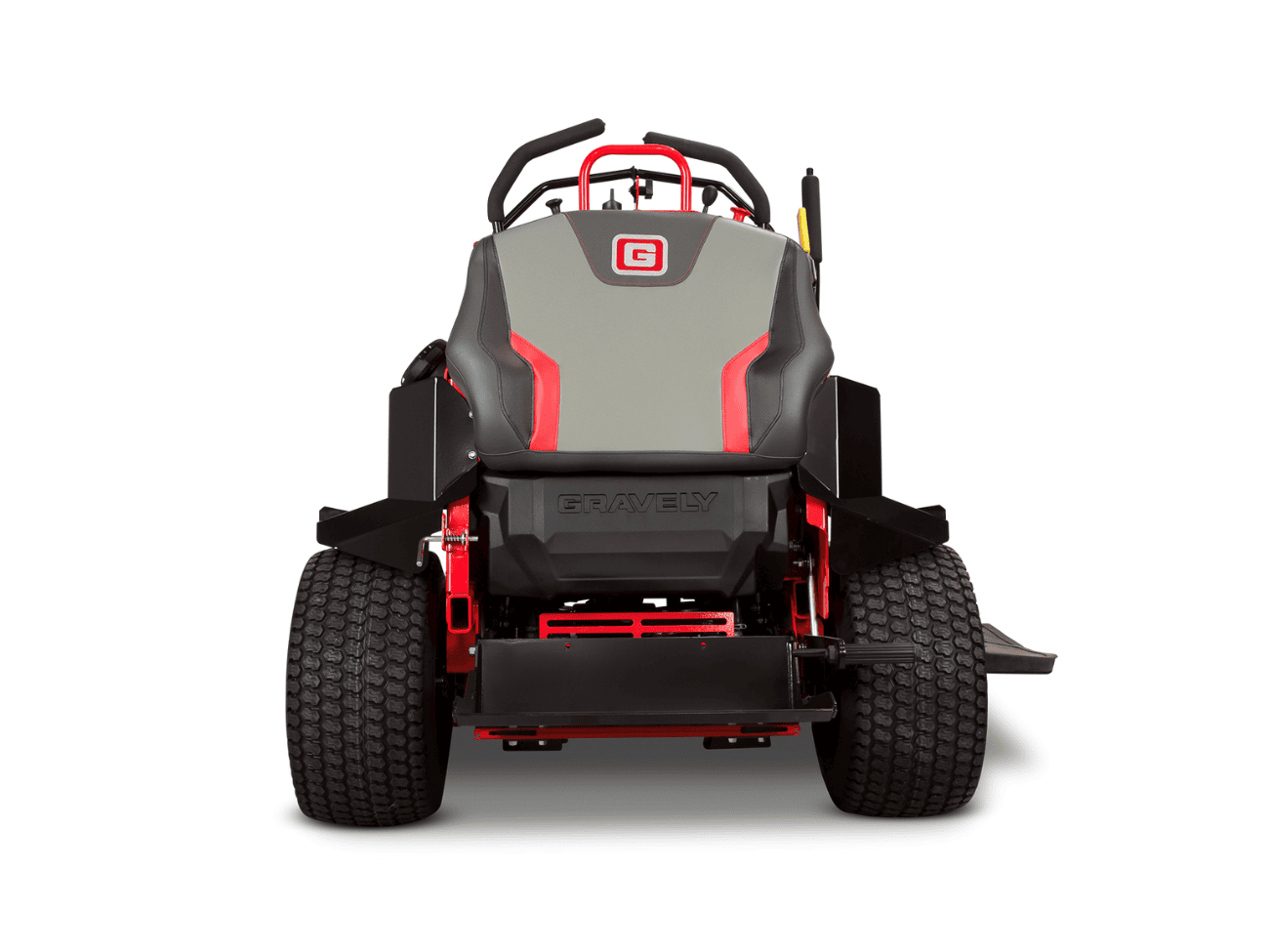

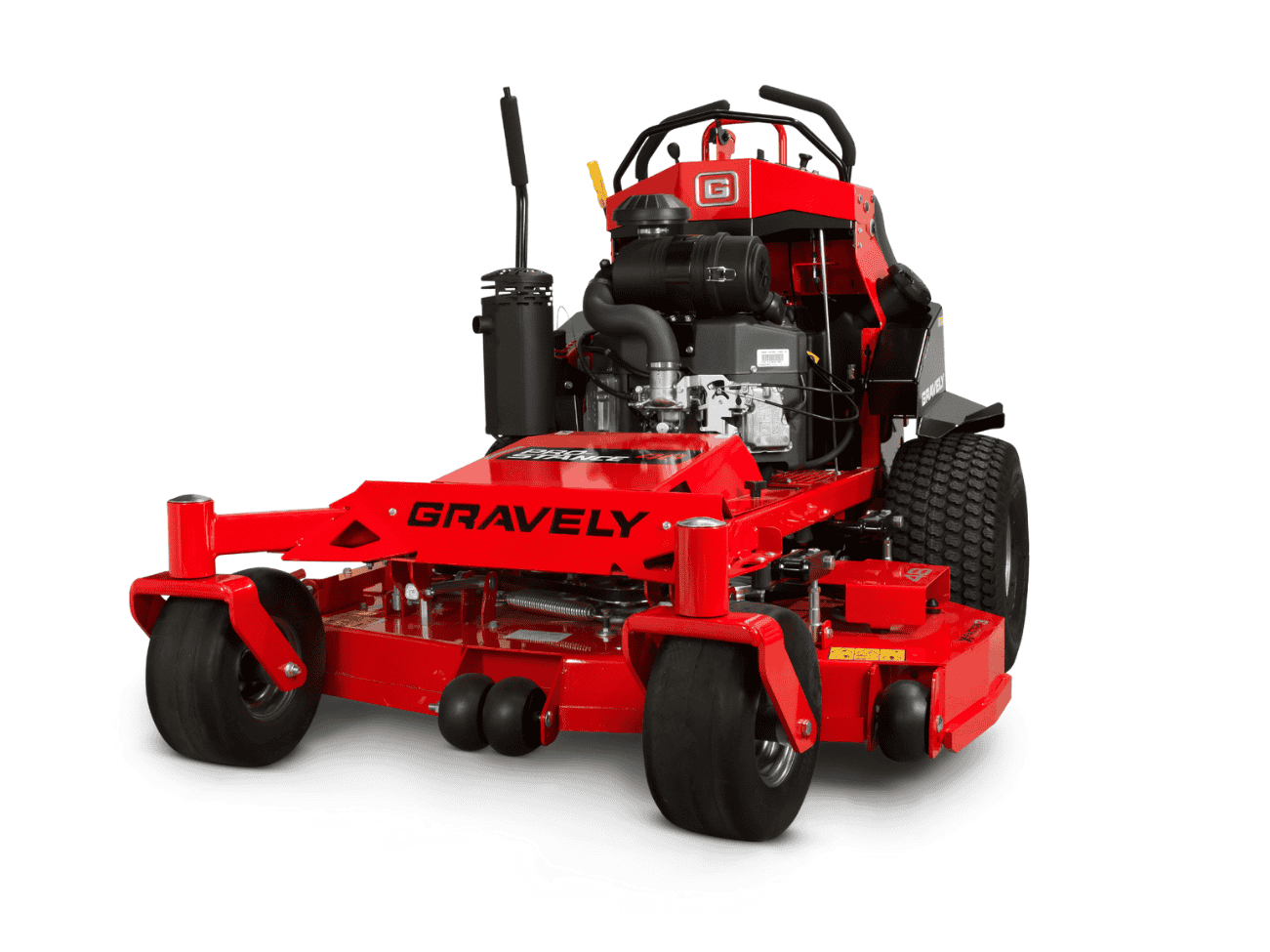

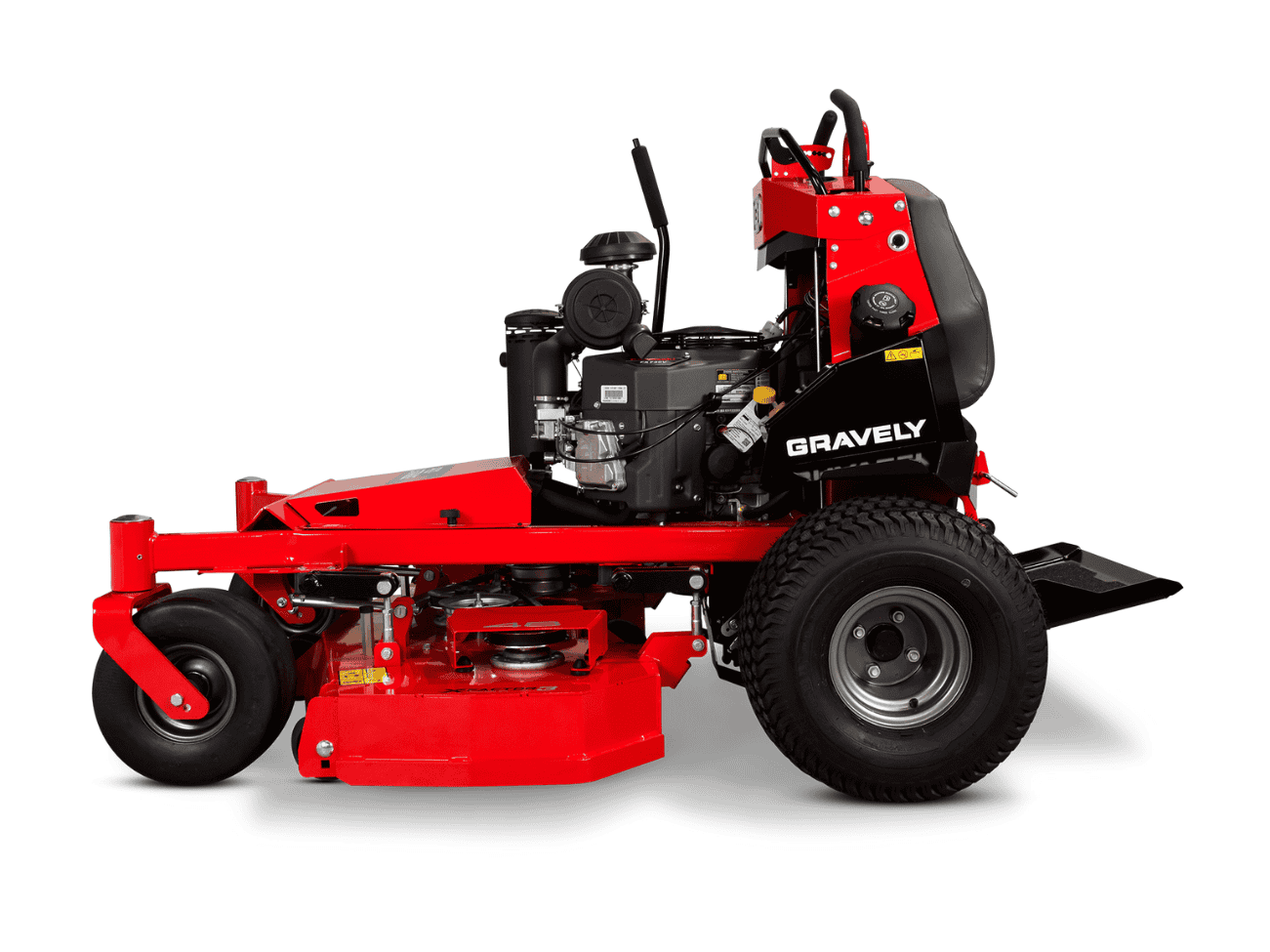

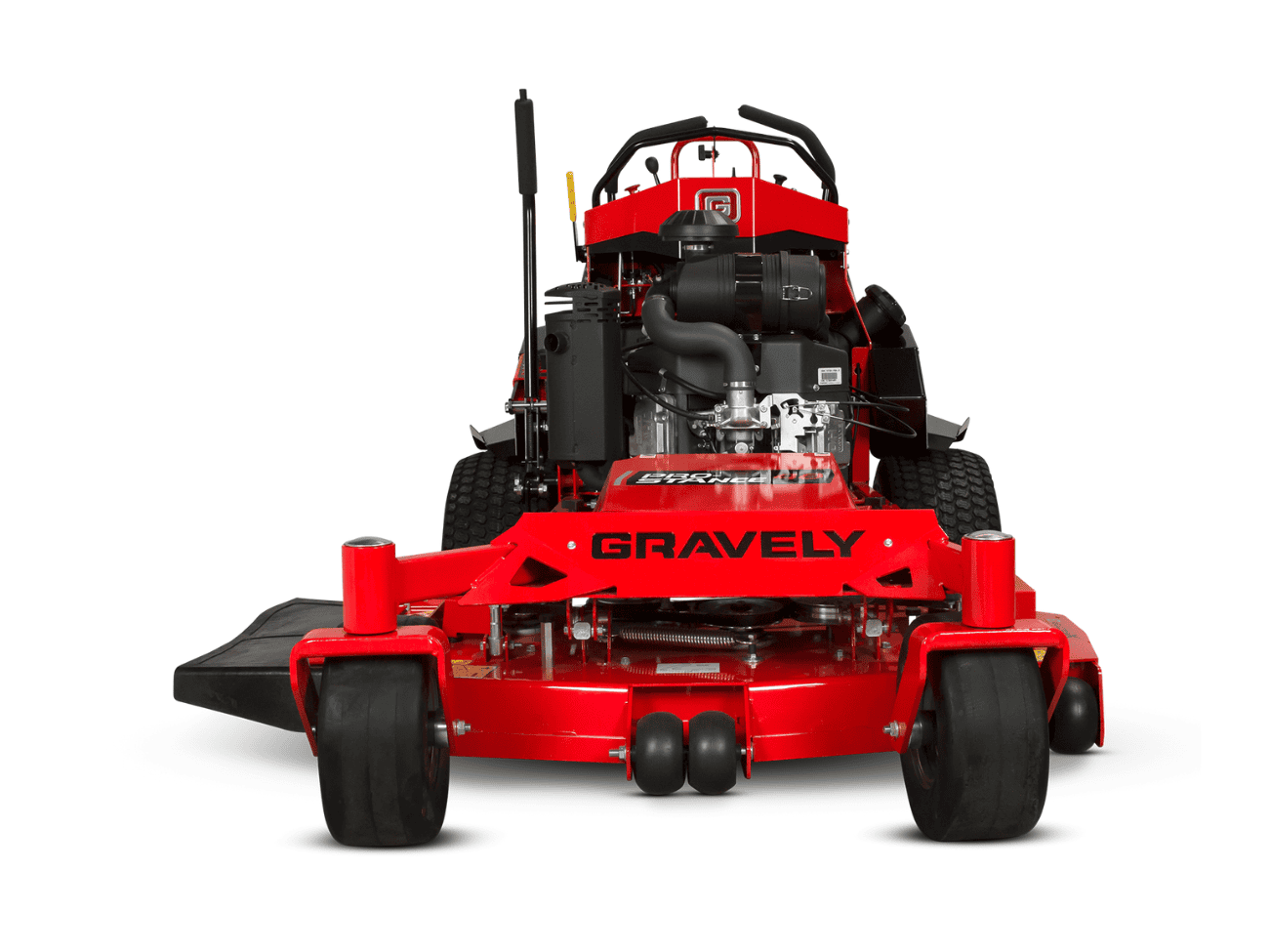

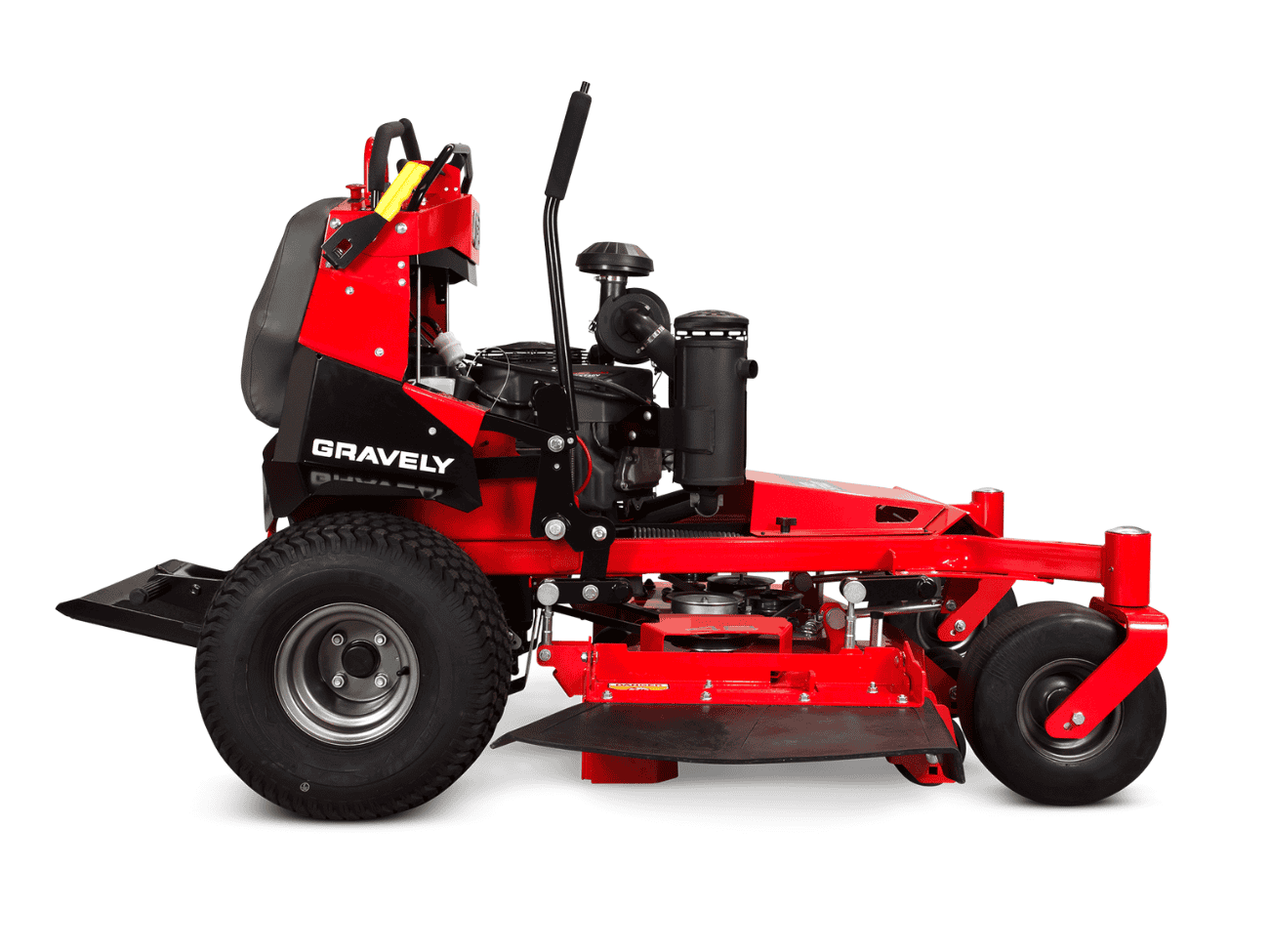

Gravely Pro-Stance 48″ Stand-On Zero-Turn Mower – Built for Power, Precision & Comfort

The Gravely Pro-Stance 48″ Stand-On Zero-Turn Mower delivers professional-grade cutting performance with the flexibility landscapers need. Engineered for durability and speed, this stand-on mower excels in environments that demand frequent on-and-off operation.

With an easily adjustable cutting deck and vibration-reducing suspension platform, the Gravely Pro-Stance 48″ ensures smooth operation and all-day comfort. Rugged, reliable, and compact, it’s the perfect solution for high-efficiency mowing on commercial properties, gated lawns, and tight spaces.

Key Features of the Gravely Pro-Stance 48″ Stand-On Zero-Turn Mower

• Powered by a 23.5 hp Kawasaki FX730V premium and Commercial Grade V-twin engine.
• Operator Comfort Features Exceptional Operator Positioning for All-Day Comfort.
• Added Efficiency – Reduced Complexity Gives Users the Freedom to Make Critical Adjustments in just Minutes.
• Adjustable Cruise Bar – Allows the Operator to Limit and Expand the Unit’s Maximum Speed in Tight Working Environments.
• Deck Height Adjustment – the Dual Height-Adjustment System was Designed with Both – a Traditional Hand Lever and a Foot Lever to Lift and Adjust the Deck. It’s Perfect for Smaller Operators who May Struggle with Traditional Hand Lever Lifts.
• X-FACTOR® 3 Deck – The Deck has been Completely Redesigned for Better Grass Dispersion. Its New Look is Constructed from 7-Gauge Steel to Deliver Years of Solid Performance.
• Compact Stance Perfect for Tight Spaces.
• Offers 15 Cutting Positions, Ranging from 38.1 mm – 127 mm.
• Shock-Absorbed Operator Platform which Responds to Driver’s Weight.
• Heavy-Duty Fabricated Frame.

Specifications

Warranty Information

• Domestic Warranty: 5 Years / 1000 Hour Domestic Warranty
• Commercial Warranty: 5 Years / 1000 Hour Commercial Warranty

Miscellaneous

• Blade(s): 3 x Bar Blades

Dimension Specs

• Dry Weight: 451.3 kg
• Height: 1219 mm
• Width: 1270 mm With Chute Up
• Length: 1540 mm

Zero Turn Mower Specs

• Ground Speed – Forward: Up To 14.4 km/h Forward
• Brakes: Hand-Operated Park Brake
• Construction: Frame 1″ x 3″ STEEL Tubular Frame Welded
• ROPS: No
• Controls: Hand-Operated Choke, Throttle, Ignition Switch, Electric Mower Clutch, Hand Lever Operated Hand Brake
• Deck System: 4 Point Lift Fabricated
• Deck Lift: Dual Deck Height Adjustment
• Deck Construction: Fabricated 7 Gauge
• Blade Tip Speed: 18,000 FPM
• Blade Drive: V-Belt Drive to Spindles with Electric Clutch. Spring Tension Idler Pulleys for Extended Belt Life
• Spindles: Forged Aluminium with Sealed Ball Bearings
• Drive System: Hydro-Gear® ZT-3400 Transaxle
• Discharge Chute: High Density, Rubberised
• Steering: Twin-Lever Steering Provides Independent Control of Each Drive Wheel. Speed, Forward, Reverse, and Turns are All Controlled With Hand-Operated Controls.

Engine and Fuel Specs

• Engine: Kawasaki FX730V
• Type: Air cooled, 90-degree V-Twin, Normally Aspirated Petrol Engine
• Engine (cc): 726 cc
• Cooling: Air Cooled Fly-wheel Fan
• Fuel: Unleaded Fuel – Maximum of 10% Ethanol in Fuel (see engine manufacturers specifications)
• Fuel Filter: Replaceable, Automotive-Type
• Oil Filter: Spin-On Engine Oil Filter / Total Oil Capacity 2.1 Litres with Filter
• Air Filter: Dual Element with Reinforced Primary Filter
• Fuel Capacity: 33.9 L
• Governor: Mechanical

Hydrostatic Drive System Specs:

• Hydrostatic Drive System: Dual hydrostatic
• Drive Cooling: Transmission mounted fans
• Drive Filter: Yes

Cutting Dimensions

• Cutting Widths: 48″ (1219.2 mm) Cut Side Discharge
• Cutting Height(s): 38 mm – 127 mm

Manufacturer’s Website

Gravely – gravely.com.au
