Cosmo Bully
VH Series
Multi-Speed Gearbox For Demanding Applications
3 Models | 1.5–2.0m (60"–80") | Tractors 50-90hp
Pickup Or Delivery
Stock: Item Available

Description

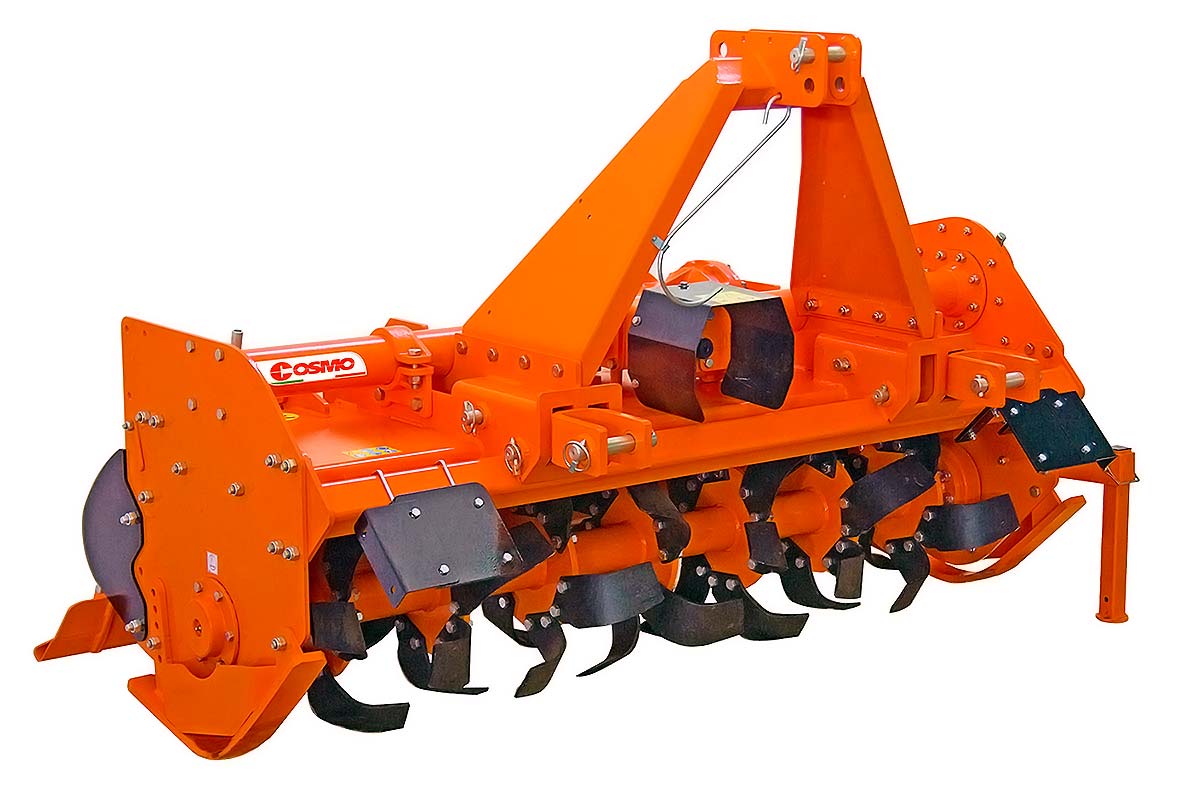

The European designed Cosmo Bully VH Series Rotary Hoes have a multi speed gearbox that is rated 50 to 90hp.

The main frame is a robust and rigid construction with box section reinforcing and the side gears are sealed via a gasket creating an oil bath.

The Cosmo Bully VH Series produces a super fine finish.

The spring loaded tailgate keeps soil inside and in contact with the blades until it is well pulverised.

The multi speed gearbox allows the operator to customise the rotor speed.

The rotor design, Ø521mm from blade to blade, allows a large amount of soil to be worked without clogging up the chamber.

The speed blade configuration, a design where six (6) L shaped blades (per flange) are slightly staggered, reduces the tractor horsepower required.

The Cosmo Bully VH Series can operate all day, every day, in demanding soil conditions and is suitable for a range of commercial horticultural and gardening applications including nurseries, vineyards and orchards.

Models

TBVH60 – 60″/1.5m
TBVH70 – 70″/1.75m
TBVH80 – 80″/2.0m

Specifications

Description – Bully VH60 / VH70 / VH80 Rotary Hoe
Side transmission – Gear drive
Gearbox – 90hp, 540rpm, multi speed (1000rpm option)
PTO shaft/clutch – Series 6 with 200mm (8″) friction (slip) clutch
Skids – Height adjustable
Finish – Powder coated
Rotor diameter (mm) – 521
Rotor speed (rpm) – 191-240 at 540rpm | 248 at 1000rpm
No. of rotor flanges – 6 (VH60) / 7 (VH70) / 8 (VH80)
No. of blades per flange – 6
Total no. of blades – 36 (VH60) / 42 (VH70) / 48 (VH80)
Blades – Square/L shaped standard (Curved/speed on request)
Linkage – Category 2
Guarding – Standard with CE compliant guards
Overall width (mm) – 1705 (VH60) / 1945 (VH70) / 2185 (VH80)
Working width (mm) – 1540 (VH60) / 1780 (VH70) / 2020 (VH80)
Working depth (mm) – 225
Tractor range (hp) – 50-90 (VH60) / 60-90 (VH70) / 70-90 (VH80)
Weight (kg) – 580 (VH60) / 620 (VH70) / 665 (VH80)
