Cosmo Bully
UL Series
Dependable, Light Duty Hoe For Compact Tractors
3 Models | 0.9–1.5m (36–60") | Tractors Up To 40hp
Pickup Or Delivery
Stock: Item Available

Description

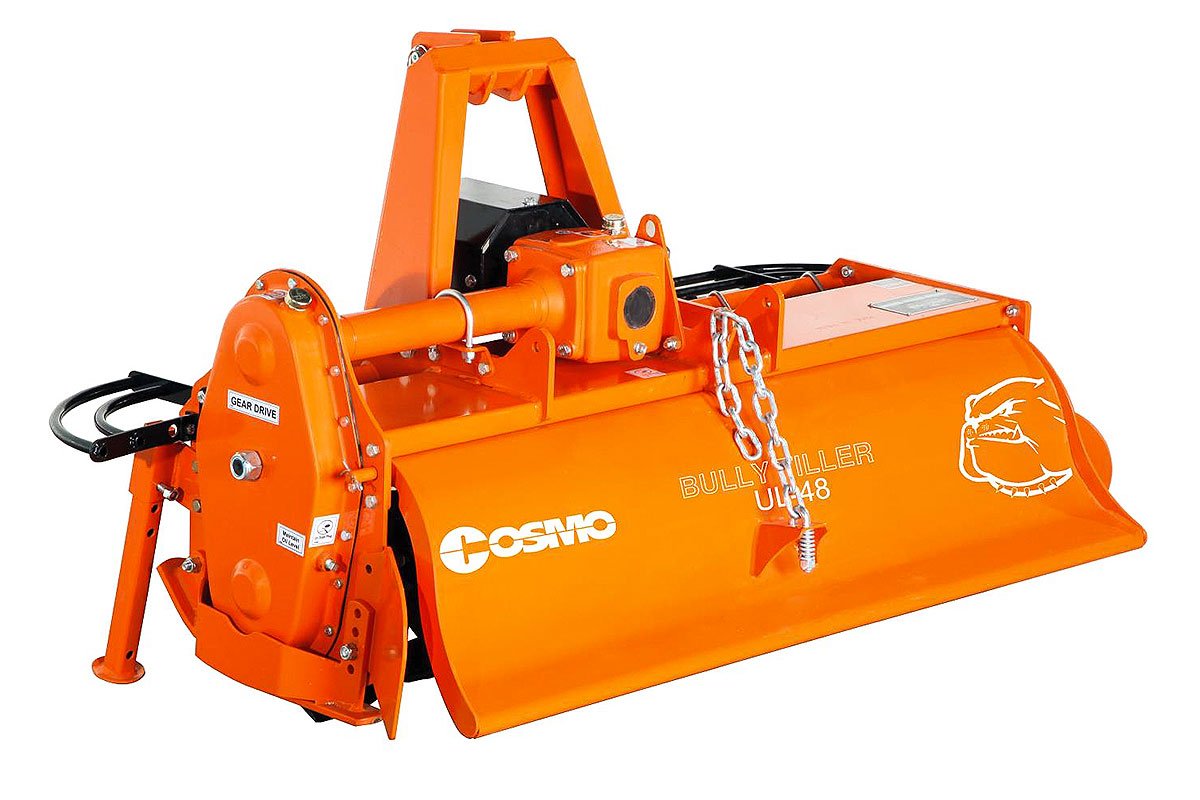

The European designed, Cosmo Bully UL Series Rotary Hoes are gear driven implements for compact and sub-compact tractors up to 40hp.

Engineered to till soil in nurseries, vineyards, orchards and hobby farms, they are ideal for owner operators.

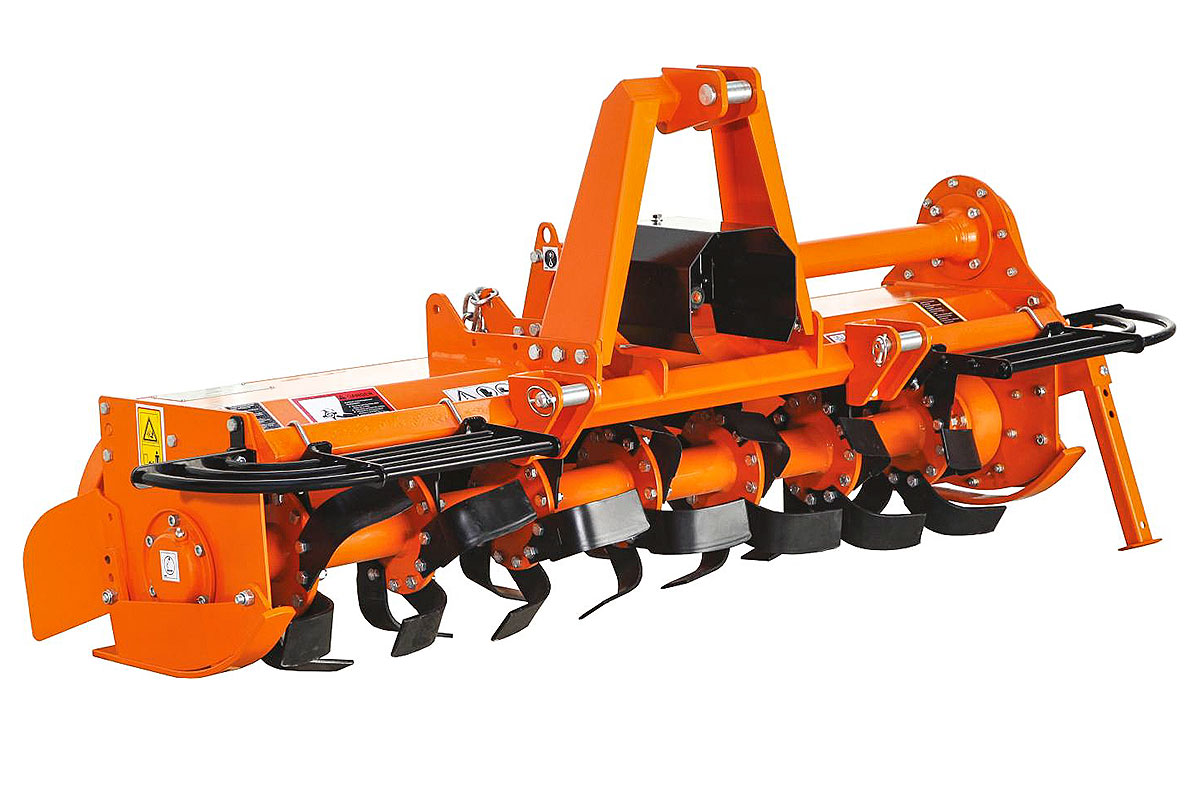

The rotor features six (6) C shaped, heat treated blades (per flange) in a speed configuration. The speed configuration, a design where the blades are slightly staggered from flange to flange, reduces the horsepower required to produce a fine finish in a variety of soil conditions.

Models

TBUL36 – 36″/0.9m
TBUL48 – 48″/1.2m
TBUL60 – 60″/1.5m

Specifications

Description – Bully UL36 / UL48 / UL60 Rotary Hoe
Side transmission – Gear drive
Gearbox – 40hp, 540rpm, single speed
PTO shaft/clutch – Series 4 with 150mm (6″) friction (slip) clutch
Skids – Height adjustable
Finish – Powder coated
Rotor diameter (mm) – 375
Rotor speed (rpm) – 245
No. of rotor flanges – 4 (UL36) / 6 (UL48) / 7 (UL60)
No. of blades per flange – 6
Total no. of blades – 24 (UL36) / 36 (UL45) / 42 (UL60)
Blades – Curved/speed
Linkage – Category 1 (quick hitch compatible)
Guarding – Standard with CE compliant guards
Overall width (mm) – 1035 (UL36) / 1340 (UL48) / 1645 (UL60)
Working width (mm) – 915 (UL36) / 1220 (UL48) / 1525 (UL60)
Working depth (mm) – 165
Tractor range (hp) – 15-28 (UL36) / 20-35 (UL48) / 30-40 (UL60)
Weight (kg) – 153 (UL36) / 180 (UL48) / 200 (UL60)

Manufacturer’s Website

Cosmo Bully – www.cosmobully.com
