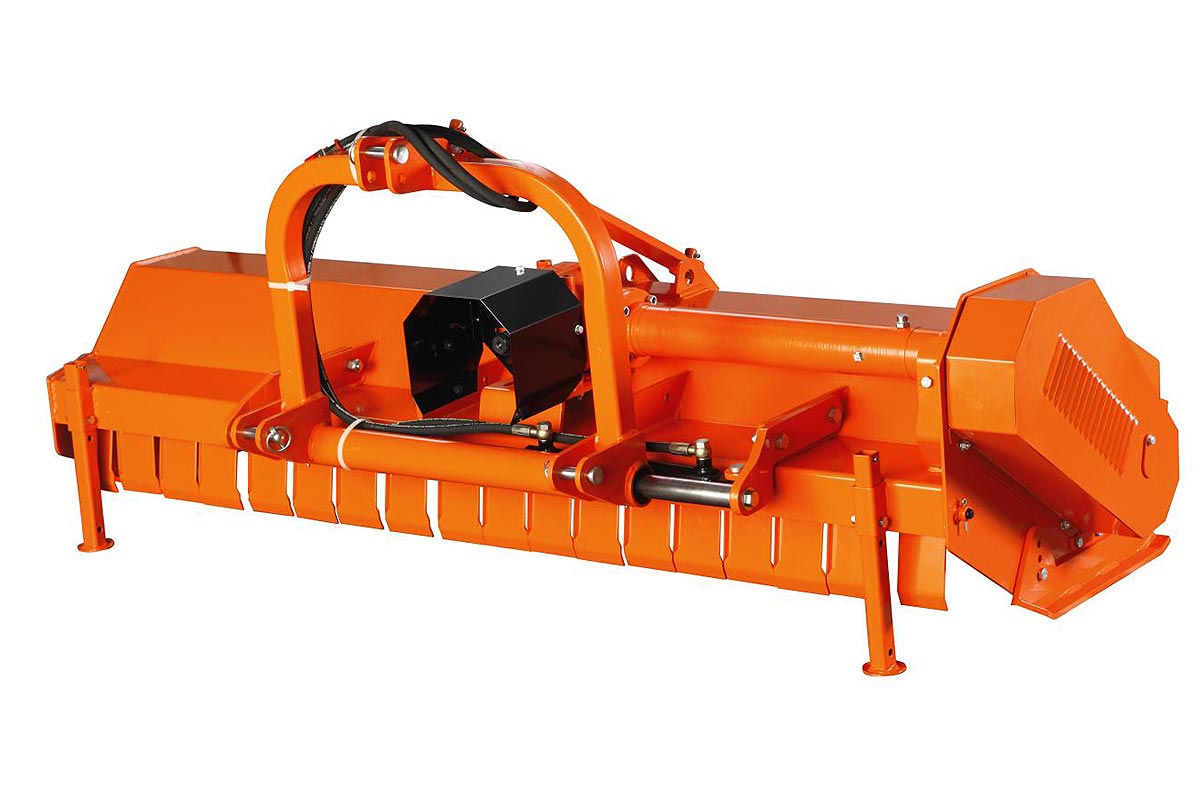

SFM-H Series
4 Models | 1600–2200mm (63–87") | Suits 40–70hp
Description
The European designed Cosmo Bully SFM-H Series Mulchers come with a tower that hydraulically side shifts and a gearbox rating up to 70hp.
The rear of the deck has a series of height adjustable mulching rakes that hold large prunings (up to Ø50mm) in the cutting chamber for maximum mulching, which along with the high speed rotor and hammer blades produce a high quality cut finish in vineyards, orchards and pastures.
Options
- Bully SFM Series Y Blades & Spacers
Models
TSFM160H – 63″/1.6m
TSFM175H – 69″/1.75m
TSFM205H – 81″/3.05m
TSFM220H – 87″/2.2m
Specifications
Description – Bully SFM160-H / SFM175-H / SFM205-H / SFM220-H Hydraulic Shift Flail Mulcher
Side transmission – Belt drive
Belts – Four (4) BX type
Gearbox – 70hp, 540rpm with free wheel clutch
PTO shaft/clutch – Series 4 (SFM160-H) / Series 6 (SFM175-H, SFM205-H, SFM220-H)
Skids – Adjustable, three (3) positions
Rear roller – Ø140mm, height adjustable
Finish – Powder coated
Rotor swing diameter (mm) – 380
Rotor diameter (mm) – 160
Rotor speed (rpm) – 2083
Type of blade – Hammer
No. of hammers – 20 (SFM160-H) / 22 (SFM175-H) / 26 (SFM205-H) / 28 (SFM220-H)
Tower position/offset – Hydraulic side shift (300mm)
Linkage – Category 1 and 2 (bushes for category 2)
Guarding – CE compliant
Overall width (mm) – 1770 (SFM160-H) / 1920 (SFM175-H) / 2220 (SFM205-H) / 2370 (SFM220-H)
Working width (mm) – 1600 (SFM160-H) / 1750 (SFM175-H) / 2050 (SFM205-H) / 2200 (SFM220-H)
Cutting height (mm) – 20-105
Tractor range (hp) – 40-70 (SFM160-H) / 50-70 (SFM175-H) / 55-70 (SFM205-H) / 60-70 (SFM220-H)
Weight (kg) – 420 (SFM160-H) / 440 (SFM175-H) / 485 (SFM205-H) / 510 (SFM220-H)
Manufacturer’s Website
Cosmo Bully – www.cosmobully.com
