John Berends Implements

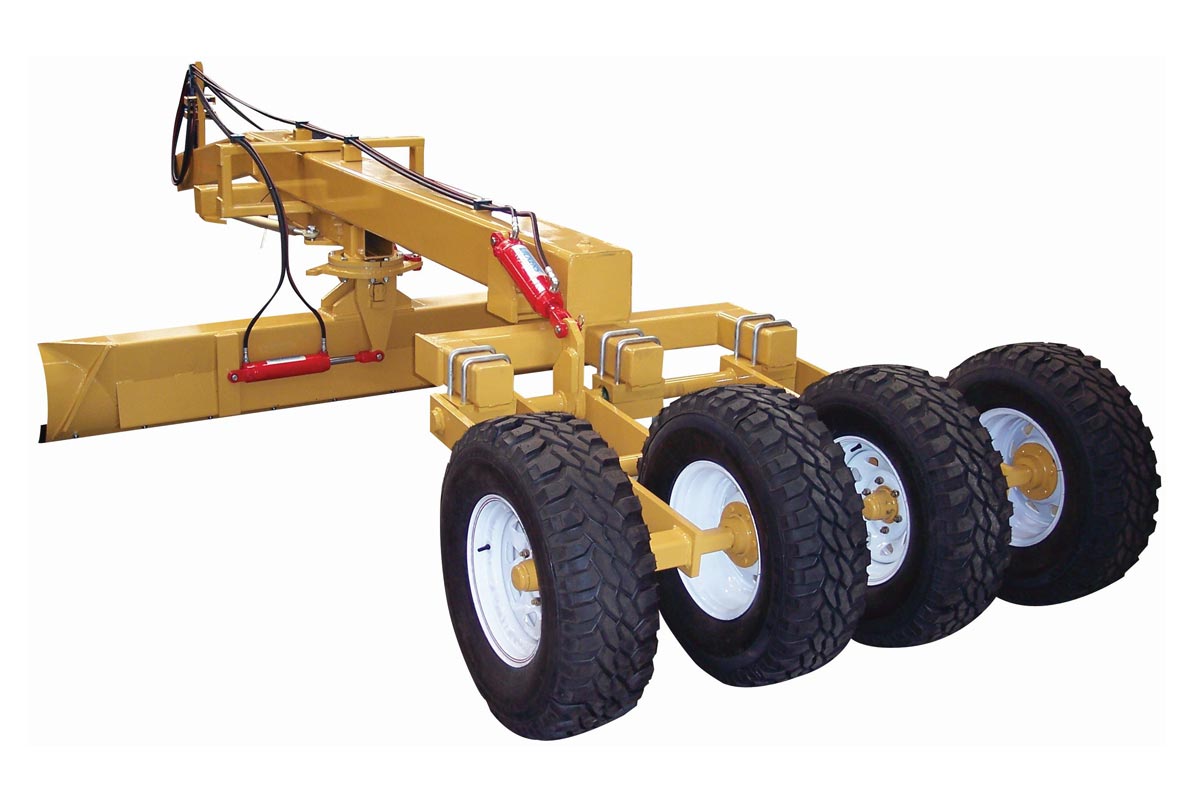

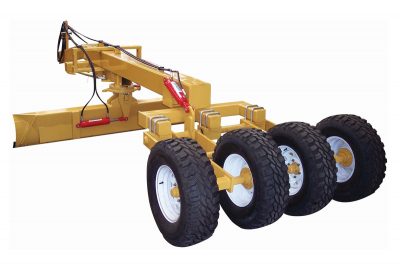

Trailing Road Grader Range
Fully Hydraulic - Hardened Edge With Road Curvature
10' or 12' Width | Fixed, Manual or Hydraulic Offset
From
$17,050
Inc. GST
Pickup Or Delivery
Stock: Item Available

Description

The ideal road grading blade for 100hp+ tractors. Available with 10′ or 12′ hardened blades, produced with the correct curvature for road grading.

Features

Key Features

  • The ideal road grading blade for 100hp+ tractors
  • Hydraulic angle using the famous Berends patented swivel turntable system
  • Hydraulic tilt adjustment
  • Manual Offset with optional hydraulic adjustment
  • Over 6m in length
  • 1750kg weight, with provision for water ballast to be added.
  • Optional linkage hitch available.
  • Main beam 250 x 250 x 12.5mm RHS.
  • 10mm mouldboard with 500mm clearance with correct curvature for road grading.
  • Fitted with reversible hardened cutting edge.
  • Wheelkit section consists of 4 Landcruiser wheels with hydraulic lift.

Models

0425 – 10’ Grader Blade – Trailing model
0427 – 12’ Grader Blade – Trailing model (no offset)

Specifications

Cutting Edge Width – 10′
Mouldboard Thickness – 10mm
Mouldboard Height – 500mm
Tractor hp – 100hp+
Tractor Cat Connection – Cat 2
Nett Weight – 1750kg

Warranty

12 months on design and manufacture


Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
